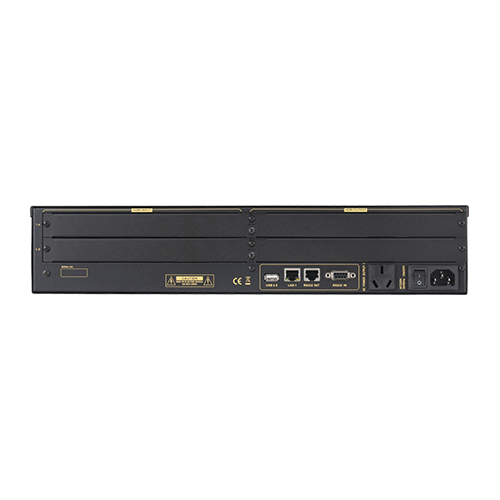

WVM88G AV Seamless Hybrid matrix

·Equipped with standard Ethernet ports and standard tablet APP control software, it features a built-in central control module. The tablet app interface can be customized through the central control's programming software, allowing for the addition or deletion of buttons and text, modification of background images, and changes to button shapes, among other modifications;

· It can be controlled through a webpage, with two serial ports, supporting serial port control, keyboard control, and full-platform control software. It has strong adaptability and provides Android apps, Apple IOS apps, and computer control software, allowing for simultaneous use of the three methods. The iPhone and iPad software have been approved by Apple and can be downloaded from the App Store. In addition to apps, it also supports browser web page control for systems such as HarmonyOS, Linux, Windows, and Apple IOS. Users can modify the names of input and output channels on the webpage for easy memory. When opening the webpage, a password must be entered first, and password management and modification functions are provided;

·Card-inserting structure, mixed input and output, one card with four channels, supporting DVI, VGA, AV, HDMI, SDI, HDBaseT, YPbPr, network and other boards;

· (Equipped with a voice control box) Supports AI-based voice control. The voice recognition system does not require connection to the Internet, nor does it need to be upgraded online, ensuring that indoor conversations are not leaked (Confidential), all input and output channels can be renamed on-site, such as calling "switch DVD to projector". The speech recognizer and matrix are connected wirelessly, making it easy to move around; ·Supports multiple control interfaces simultaneously, with strong compatibility. It allows third-party systems (such as central control systems) to control the matrix through serial ports RS-232 or RS485, infrared, network TCP, and network UDP. Hardware provides 2 serial ports and 1 network port; The panel features 15 hardware buttons and 3 working status indicator lights, enabling direct switching and control operations through these;

· (Optional) Supports dual power supply, with two power supplies installed internally that are truly backed up by each other, rather than just dual plugs;

 · (With preview module) Support network visual preview, allowing users to view video images of all input signals on both the app and computer software;

 ·Below is a binary choice:  a. (Optional) Equipped with a 7-inch color touch screen (4.3 inches for the 8 series), all input and output channels have a corresponding button on the touch screen. Users can long press the screen to modify the button name, or modify the touch screen interface through software (adding or deleting pages, button shapes, backgrounds, etc.);  b. (Standard configuration) Equipped with a blue LCD display, which displays the working status of the matrix (such as viewing the correspondence between output and input channels);

 · The output card supports audio de-embedding and can simultaneously output both analog and digital audio, meaning that sound can be outputted through both the HDMI interface and the 3.5 audio connector simultaneously; Each channel supports images in 4K and 2K resolutions, with up to 16 adjustable resolutions and refresh rates, including 24Hz, 30Hz, 50Hz, 60Hz, etc., to enhance compatibility and adapt to various display screens;

·Support for subtitles, allowing direct modification of subtitle content through the network and serial port, with each output video channel having independently different subtitles;

 ·Each output channel can independently adjust brightness and contrast;

· Serial control interface: RS-232, 9-pin female D-type interface, baud rate: 9600, data bits: 8, stop bits: 1, no parity check; 2 = RX, 3 = TX, 5 = GND; Ethernet control interface: RJ-45 female connector, TCP/IP Server and UDP modes, auto-sensing 10M or 100M, full duplex; TCP port number: 10008.
