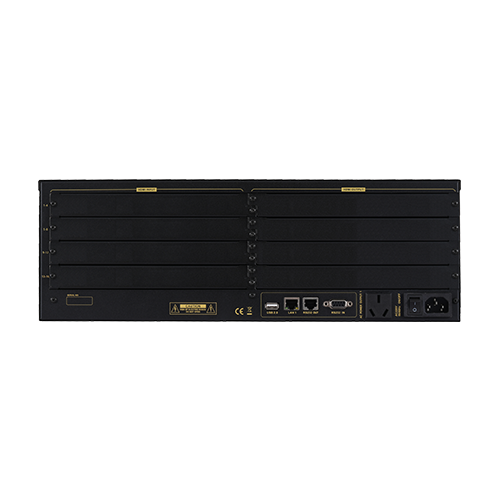

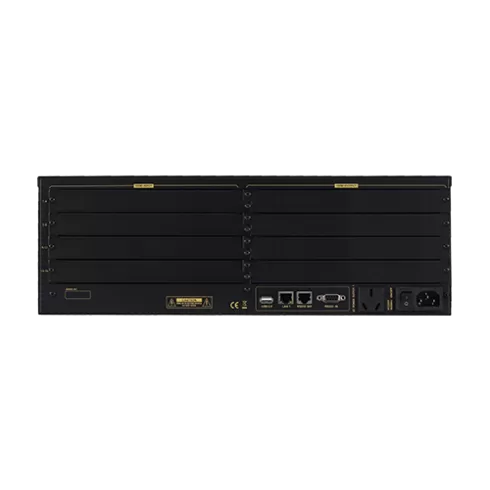

WVM1616G AV Seamless Hybrid matrix

·Equipped with standard Ethernet ports and standard tablet APP control software, with a built-in central control module. The tablet app interface can be freely modified through the central control programming software, such as adding or deleting buttons and text, changing background images, modifying button shapes, etc;

 ·Web-controllable, equipped with 2 serial ports, supports serial port control, keyboard control, and cross-platform control software, with strong adaptability. Provides Android app, Apple iOS app, and computer control software, allowing simultaneous use of three methods. The iPhone and iPad software have been approved by Apple and can be downloaded from the App Store. In addition to apps, it also supports browser web page control on systems such as HarmonyOS, Linux, Windows, and Apple iOS. Users can modify the names of input and output channels on the web page for easy memory. When opening the web page, a password must be entered first, and password management and modification functions are provided;

 ·Card-inserting structure, mixed input and output, one card with four channels, supporting DVI, VGA, AV, HDMI, SDI, HDBaseT, YPbPr, network, and other boards;

· (Equipped with a voice control box) It supports voice control with artificial intelligence. The voice recognition system does not need to connect to the Internet, nor does it require online upgrades, ensuring that indoor conversation content is not leaked

·(Confidential), all input and output channels can be renamed on-site, such as calling "switch DVD to projector". The speech recognizer and matrix are connected wirelessly, making them easy to move; ·Supports multiple control interfaces simultaneously, with strong compatibility. It allows third-party systems (such as central control systems) to control the matrix through serial ports RS-232 or RS485, infrared, network TCP, and network UDP. Hardware provides 2 serial ports and 1 network port;

 ·The panel features 15 hardware buttons and 3 working status indicator lights, allowing direct switching and control operations;

· (Optional) Supports dual power supply, with two mutually backed-up power supplies actually installed internally, rather than just dual plugs; · (With preview module) Support network visualization preview, allowing users to view video images of all input signals on both the app and computer software; ·Below is a binary choice:  a. (Optional) Equipped with a 7-inch color touch screen (4.3 inches for the 8 series), all input and output channels have a corresponding button on the touch screen. Users can modify the button names by long-pressing the screen, and can also modify the touch screen interface (adding or deleting pages, button shapes, backgrounds, etc.) through software;  b. (Standard configuration) Equipped with a blue LCD display, which shows the working status of the matrix (such as viewing the correspondence between output and input channels);

·The output card supports audio de-embedding, allowing for the simultaneous output of both analog and digital audio, meaning that sound can be output through both the HDMI interface and the 3.5 audio connector simultaneously;

·Each channel supports images in 4K and 2K resolutions, with up to 16 adjustable resolutions and refresh rates, including 24Hz, 30Hz, 50Hz, 60Hz, etc., to enhance compatibility and adapt to various display screens;

·Support for subtitles, with the ability to directly change subtitle content through the network and serial port, allowing each output video to have independent and distinct subtitles;

 ·Each output channel can independently adjust brightness and contrast;

· Serial control interface: RS-232, 9-pin female D-type interface, baud rate: 9600, data bits: 8, stop bits: 1, no parity; 2 = RX, 3 = TX, 5 = GND;

 ·Ethernet control interface: RJ-45 female connector, TCP/IP Server and UDP modes, auto-sensing 10M or 100M, full duplex; TCP port number: 10008
