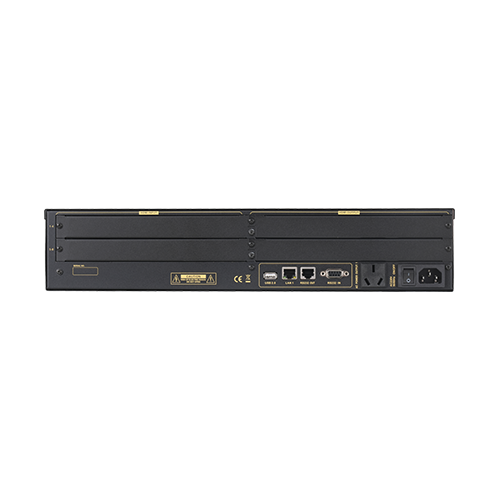

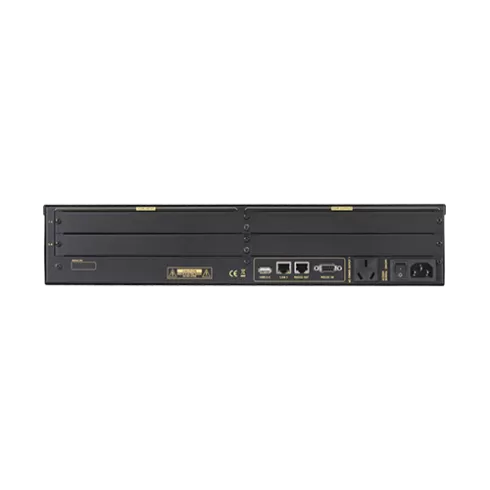

WVM44G AV Seamless Hybrid matrix

·Standard Ethernet port, standard tablet APP control software, built-in central control module, the tablet's app interface can be modified freely through the central control's programming software, such as adding or deleting buttons and text, modifying background images, changing button shapes, etc;

·Web-controllable, with 2 serial ports, supports serial port control, keyboard control, and cross-platform control software, with strong adaptability. Provides Android app, Apple iOS app, and computer control software, allowing simultaneous use of the three methods. The iPhone and iPad software have been approved by Apple and can be downloaded from the App Store. In addition to the app, it also supports browser web page control for systems such as HarmonyOS, Linux, Windows, and Apple iOS. Users can modify the names of input and output channels on the web page for easy memory. When opening the web page, a password must be entered first, and password management and modification functions are provided;

·Card-inserting structure, mixed input and output, one card with four channels, supporting DVI, VGA, AV, HDMI, SDI, HDBaseT, YPbPr, network, and other boards and cards;

· (Requires a voice control box) Supports AI-based voice control. The voice recognition system does not need to connect to the Internet, nor does it require online upgrades, ensuring that indoor conversations are not leaked ·(Confidential), all input and output channels can be renamed on-site, such as calling "switch DVD to projector". The speech recognizer and matrix are connected wirelessly for easy mobility;

·Supports multiple control interfaces simultaneously, with strong compatibility. It allows third-party systems (such as central control systems) to control the matrix through serial ports RS-232 or RS485, infrared, network TCP, and network UDP. Hardware includes 2 serial ports and 1 network port;

·The panel features 15 hardware buttons and 3 working status indicator lights, allowing direct switching and control operations through these; · (Optional) Supports dual power supply, with two mutually backed-up power supplies actually installed internally, rather than just dual plugs;

 · (With preview module) Support network visualization preview, allowing users to view video images of all input signals on both the app and computer software;

 ·Below is a choice between two options: a. (Optional) Equipped with a 7-inch color touch screen (4.3 inches for the 8 series), all input and output channels have a corresponding button on the touch screen. Users can modify the button names by long-pressing the screen, or modify the touch screen interface (add or delete pages, button shapes, backgrounds, etc.) through software;  b. (Standard configuration) Equipped with a blue LCD display, which shows the working status of the matrix (such as viewing the correspondence between output and input channels);

·The output card supports audio de-embedding, allowing simultaneous output of both analog and digital audio, meaning that sound can be output through both the HDMI interface and the 3.5 audio connector simultaneously; ·Each channel supports images in 4K and 2K resolutions, with up to 16 adjustable resolutions and refresh rates, including 24Hz, 30Hz, 50Hz, 60Hz, etc., to enhance compatibility and adapt to various display screens;

·Support for subtitles, with the ability to directly modify subtitle content through the network and serial port, allowing each output video to have independent and distinct subtitles;

 ·Each output channel can independently adjust brightness and contrast;

· Serial control interface: RS-232, 9-pin female D-type interface, baud rate: 9600, data bits: 8, stop bits: 1, no parity check; 2 = RX, 3 = TX, 5 = GND; ·Ethernet control interface: RJ-45 female connector, TCP/IP Server and UDP modes, auto-sensing 10M or 100M, full duplex; TCP port number: 10008.
