Aug. 25, 2025
On July 19th, the Zhuji Basketball Center was in a frenzy! As the final whistle blew, the scoreboard froze at 81:65, and the Zhuji team secured the championship of the Shaoxing division of the "Zhejiang Basketball Association (ZheBA)" with a strong record of five wins in five games - this is also the first municipal champion to emerge from the ZheBA qualifiers. The cheers of over 8,000 spectators echoed throughout the venue, and behind this exciting game, the professional sound reinforcement system custom-designed by Soundking provided solid and reliable technical support.

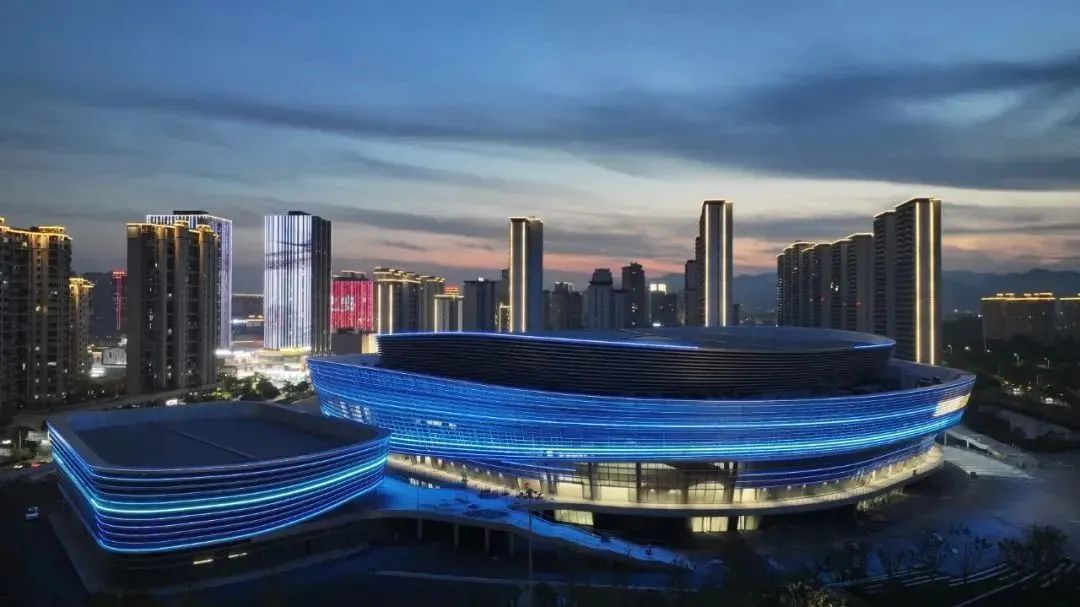

The Zhuji Basketball Center is located in the Zhuji Economic Development Zone of Shaoxing City, Zhejiang Province, with a total investment of 1 billion yuan. Its main stadium boasts 18,000 seats, ranking first in terms of individual scale within the province and among the top ten nationwide. The venue consists of three individual buildings: the gymnasium, the warm-up hall, and the fitness center for all. The main gymnasium can accommodate the FIBA Basketball World Cup, NBA China Games, and various indoor sports events such as handball, basketball, futsal, badminton, table tennis, boxing, and martial arts. It also has the capability to host large-scale concerts and exhibitions.
Facing the diverse and complex acoustic challenges of this giant venue, Soundking, relying on its profound technical accumulation from serving international top-level events such as the Beijing Olympic Games, Hangzhou Asian Games, and Wuhan Military World Games, combined with its deep understanding of the acoustic requirements of large sports venues, adopted the concept of "zoned design, precise coverage, and intelligent control" to create a high-performance and high-stability professional sound reinforcement solution for Zhuji Basketball Center.
Sound reinforcement in the audience area
Utilizing the Soundking G210I line array loudspeaker, paired with the efficient and stable AG series digital amplifier, a robust main sound reinforcement system is constructed. The G210I line array loudspeaker is a two-way system, featuring smooth frequency and phase response. Two 44mm high-frequency compression drivers and two 10" chassis constitute a mid-to-high frequency system, significantly reducing the weight of the cabinet and providing an extremely high sound pressure/volume ratio. The mid-to-low frequency section employs two 10" chassis, while the high-frequency section utilizes two 44mm high-frequency compression drivers. A planar wave transducer converts the high-frequency acoustic waveform from a spherical wave to an equiphase planar wave, greatly reducing the high-frequency comb filtering effect and significantly enhancing sound clarity at long distances. Combined with a 120-degree exponential curve constant-directivity horn, a consistent wavefront is produced. The AG series amplifier adopts proprietary multi-loop regulation technology, achieving an efficiency exceeding 95%, delivering powerful and stable performance. Even in an environment where the audience is highly emotional and the venue is boiling, it ensures clear and powerful sound in every corner. Six specially customized professional loudspeaker hangers ensure the safe and stable installation of the equipment.

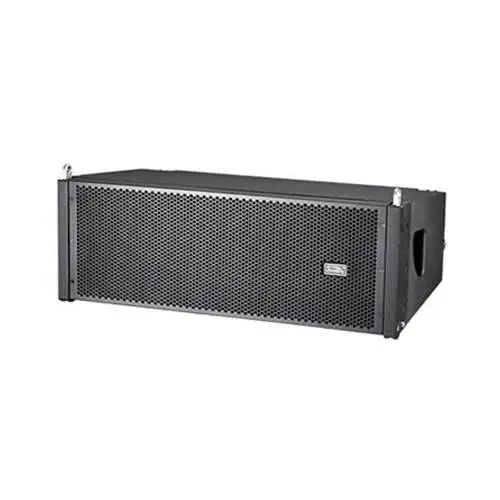

(Left: G210I line array speaker)
Right: AG series digital amplifier）
Competition area sound reinforcement
Specially equipped with Soundking TS-66HD remote coaxial loudspeakers, serving as a supplement and remote coverage for key areas. Paired with AG4100D (bass) and AG4065D (HF) amplifier drivers, it ensures precise and direct delivery of referee instructions, live music, and sound effects, meeting the listening needs of referees, athletes, and core viewing areas.

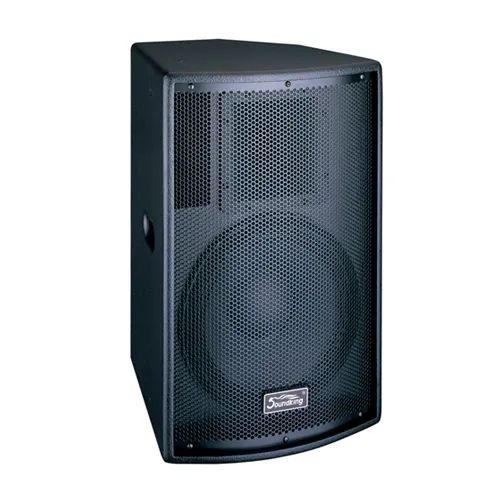

(TS-66HD remote coaxial loudspeaker)
Monitor from the podium
Equipped with Soundking V12 monitor speaker and AG4065D (HF) amplifier, providing clear and accurate monitor feedback for the podium area

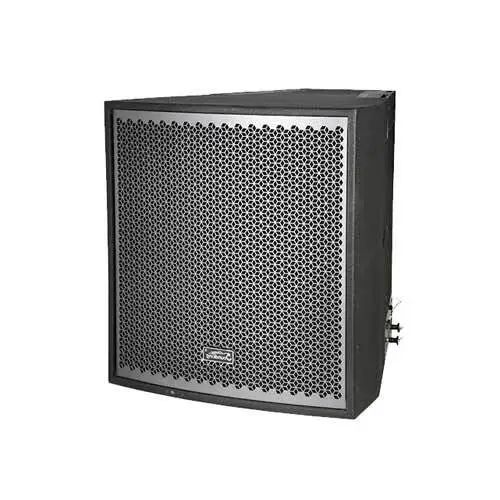

(V12 monitor speaker)
System core processing
Equipped with multiple Soundking DPM1616D Dante digital audio processors, it provides powerful 16-in-16-out routing and processing capabilities, integrating core processing modules such as AFC, AEC, and AGC. Serving as the "smart brain" of the system, it achieves digital, low-latency, lossless transmission, and flexible scheduling of audio signals through the Dante network. It easily meets the complex needs of different areas and activity modes within the venue, and also features remote monitoring and management capabilities.
(DPM1616D digital audio processor)
Major venues
Each professional venue is equipped with Soundking's K210M two-way full-range loudspeakers, driven by AE900H power amplifiers, providing precise and uniform sound field coverage for specialized sports. Given the high humidity environment of the swimming pool, the K210FS (waterproof version) two-way full-range loudspeakers are specially selected to meet the needs of this special environment. Each venue is equipped with a W97R/TH dual-handheld wireless microphone set, ensuring flexible and stable sound pickup within the venue.

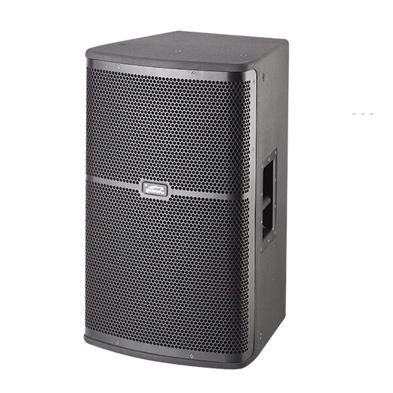

(K210M two-way full-range speaker)

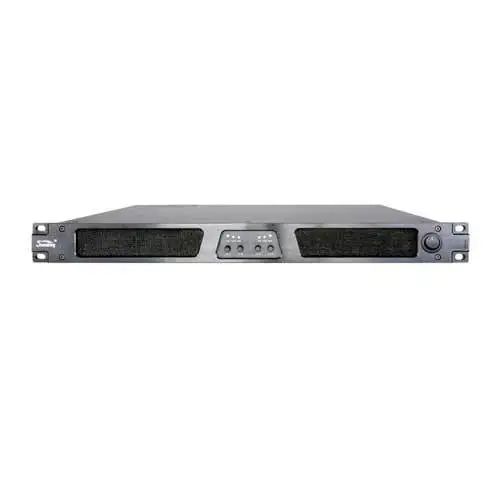

(AE900H amplifier)

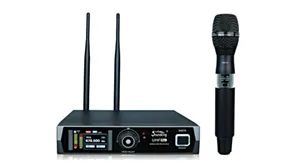

(W97R/TH dual-handheld wireless microphone)
In addition, the basketball court adopts the DX20 20-channel digital mixing console, which is equipped with a 10.1-inch high-definition touch screen and supports WiFi wireless command. It is equipped with a powerful SHARC processor and a rich range of FX (reverb, delay, etc.), providing 16 professional microphone inputs and flexible output bus allocation, meeting various needs such as event broadcasting and activity regulation

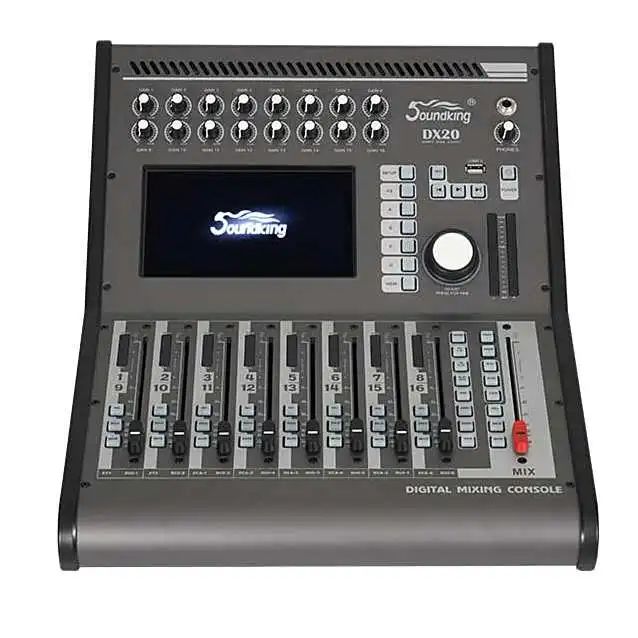

(DX20 digital mixing console)
Soundking has constructed not just a sound reinforcement system for the Zhuji Basketball Center, but also a comprehensive acoustic solution that integrates innovative technology, exceptional performance, and dependable quality. From the moment the Zhuji players raise the championship trophy in glory to the deafening cheers of the onlookers, Soundking delivers every dunk and every roar straight to the heart with its clear, powerful, near-zero-delay system and outstanding acoustic performance.
In the future, Soundking will continue to empower sports venues with innovative technology, helping Zhuji transition from being the "hometown of basketball" to becoming the "capital of events", making this vibrant sports palace resonate across the region!
