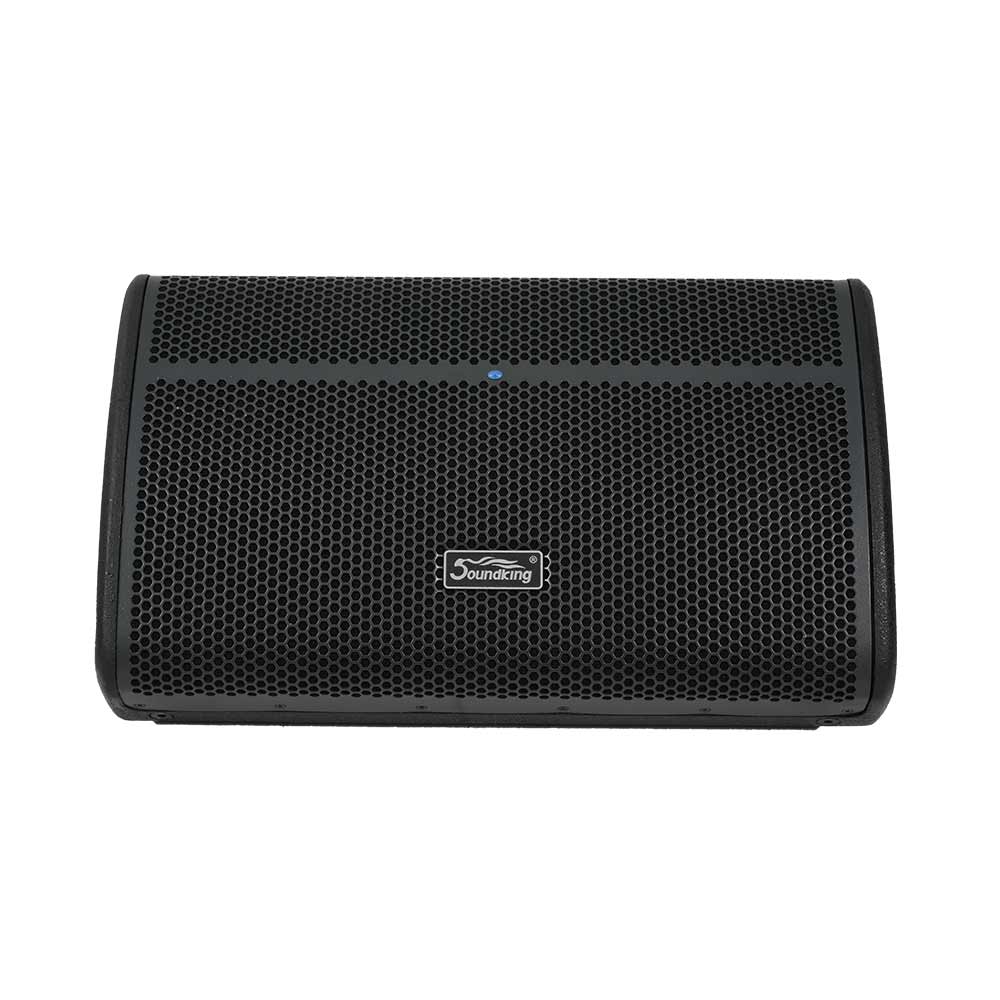

FHE12MA/FHE15MA are specifically designed for stage monitoring, utilizing a two-way design that integrates high-power neodymium magnetic low-frequency speakers with a 1.7" compression driver and a constant directivity horn (with a PEEK sound film). This configuration delivers powerful low-frequency and ultra-high-resolution high-frequen cy, ensuring a full and transparent mid-range, while enhancing speaker clarity and sound field uniformity. The system offers 45° and 20° listening angle options, and the square horn can be flexibly adjusted to vary the coverage angle, catering to diverse stage requirements. The built-in Class-D audio amplifier is efficient, energy-saving, and stable in perfor mance, providing excellent sound quality for stage monitoring.
Product Description
Low-frequency loudspeaker: High power and low distortion, featuring a carbon fiber composite pulp diaphragm. The cone, with a breathable cloth composite edge, effectively widens the mid-frequency range, delivering excellent transient response.
High-frequency driver: Equipped with a PEEK sound film, it boasts a high Young's modulus, offering superior high-frequency characteris tics. The sound quality is soft and pleasant, with a short-circuit loop magnetic circuit designed to minimize harmonic distortion.
Sound quality features: Tailored frequency and linear phase design ensure excellent sound quality and clear positioning, making it ideal for stage monitoring.
Cabinet structure: Constructed with 15mm clamp plate slot splicing, it is sturdy and authentic, coated with a high-hardness particle relief paint finish.
Protective design: A curved high-hardness steel mesh, paired with sound-permeable cotton, effectively shields the speaker.
Suspension and crossover: Features 7 M10 suspension screw holes,
offering comprehensive adaptability for various scenarios. An LC
crossover network, equipped with high-precision electronic compo
nents, guarantees superior sound quality.
Product Parameter
| Model: | FHE15MA | Frequency response: | 50Hz~20kHz(-10dB) |
| Rated power: | - | Rated impedance: | - |
| Coverage angle: | 90° x 40° | Sensitivity: | 0dBu(Input) |
| Crossover: | - | Maximum SPL: | 126dB﹙peak) |
| Woofer: | 1 x 15"/φ75mm voice coil/350W/8Ω | Tweeter: | 1 x 1.75"/φ44mm voice coil/40W/8Ω |
| Size (WxHxD): | 696 x 415 x 386mm | Connector: | 1xCOMBO multi-purpose socket |
| Net weight: | 24kg |
