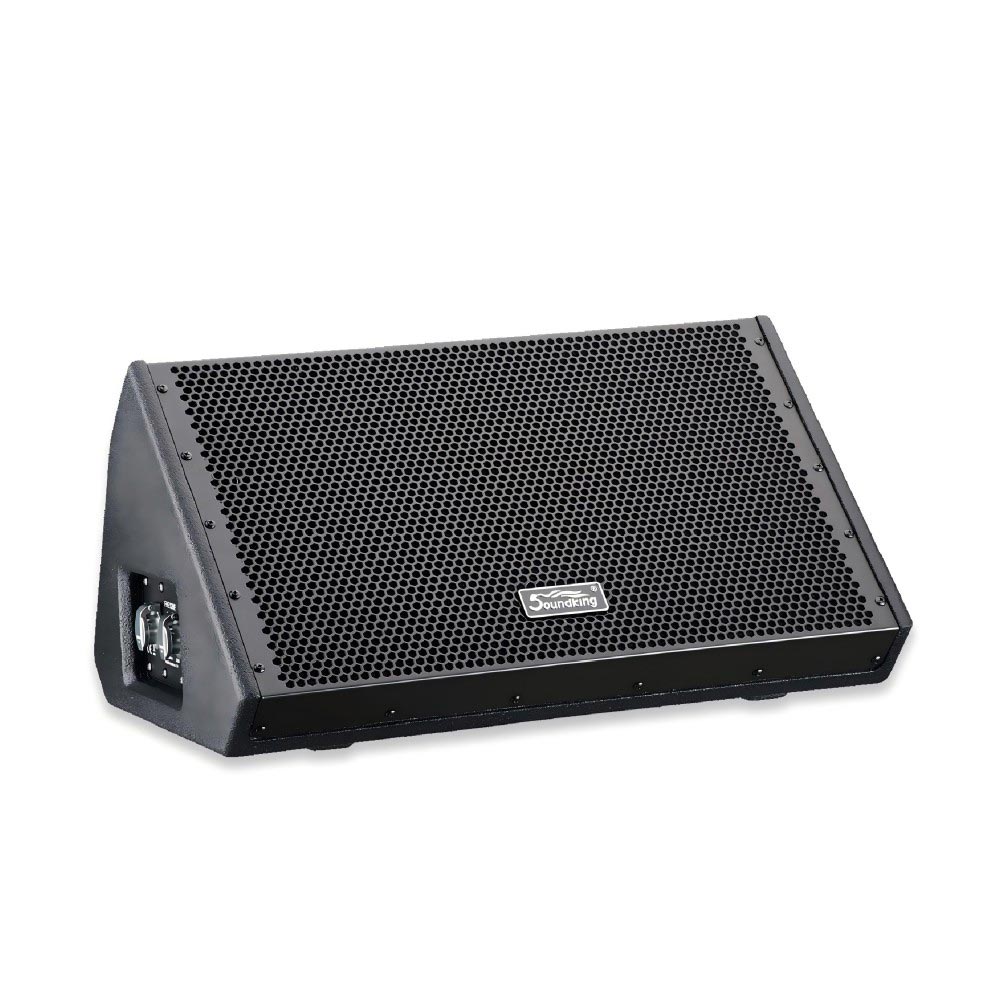

12" waterproof stage monitor
FHE12MF, a 12" passive feedback speaker, features a passive crossover design and exhibits outstanding waterproof and rust-proof capabilities. The cabinet, speaker unit, and other components have undergone special treatment, achieving a waterproof rating of up to IP46, thus ensuring worry-free use under all weather conditions. It stands as an excellent choice for stage monitoring.
Product Description
Bass Unit: Featuring an efficient magnetic circuit design, the tapered cone paper paired with an M-edge pleat ring enhances sound fidelity and reduces distortion.
High Frequency Driver: Equipped with a titanium/PEN composite diaphragm and a 44mm voice coil, it delivers bright and transparent sound quality.
LC Frequency Division Network: Comprising high-precision electronic components, it ensures authentic sound quality reproduction.
Cabinet and Mesh Board: Coated with highly waterproof and
sunscreen materials (applied to the speaker units and various
components), providing IP46 protection.
Product Parameter
| Model: | FHE12MF | Frequency response: | 55Hz~20kHz(-10dB) |
| Rated power: | 350W(continuous)，1400W﹙peak) | Rated impedance: | 8Ω |
| Coverage angle: | 90° x 40° | Sensitivity: | 96dB |
| Crossover: | 2.2kHz | Maximum SPL: | 127.5dB |
| Woofer: | 1 x 12"/φ75mm voice coil/350W/8Ω | Tweeter: | 1 x 1.73"/φ44mm voice coil/40W/8Ω |
| Size (WxHxD): | 604 x 308 x 360mm | Connector: | - |
| Net weight: | 19kg |
