ACTIVE SURROUND SCREEN SPEAKER
Feature:
The main speaker uses a 2500W high-efficiency Class D amplifier, with high power and low distortion.
Built-in powerful DSP speaker processing module, with gain, crossover, equalization, delay, pressure limit, program memory and other functions, DANTE digital network transmission, each channel can be independently controlled, delay, amplitude adjustable Real-time beam steering control.
Application:
Immersive cinemas, Immersive classrooms, Shopping centres, Hotel lobbies, Bars, Restaurants, corporate clubs, etc.
Product Description

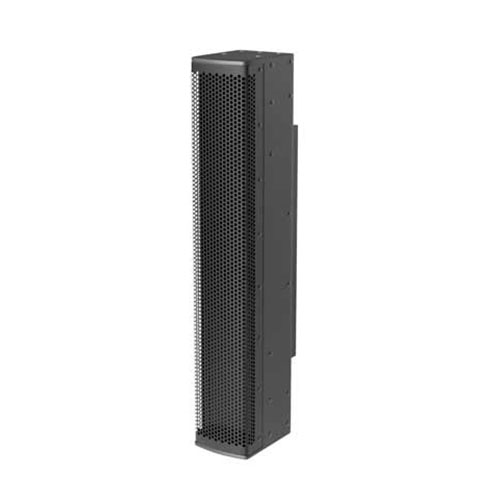

The FCL806A is an active surround screen array speaker, primarily for use in LED surround screen cinemas.
The cabinet is made of birch plywood, lightweight and sturdy, the active surround screen speaker provides a frequency range of 55Hz-20KHz, with smooth frequency and phase response.
Thirty-two 1" neodymium dome tweeters and eight 4" neodymium mid-bass speakers form a combination with a large dynamic margin, the tweeters are arranged in a coaxial array above the mid-bass loudspeaker for more accurate sound image positioning and improved line array.
The tweeters are arranged in a coaxial array above the bass and midrange loudspeakers for more accurate sound and image positioning, improving the uniformity and clarity of the far and near sound fields of the line array.
The loudspeaker is equipped with an independent 16-channel high-power amplifier and DSP, and the speakers can be adjusted individually, with the number of connections configured according to the actual size of the occasion, making live sound reinforcement extremely flexible and convenient.
The amplifier part uses a high efficiency switching power supply, built-in DSP module, with processing crossover, EQ, pressure limit, delay, volume and other functions, the speaker uses DANTE digital network transmission, each channel can be independently controlled, delay, amplitude adjustable.
Product Parameter
Model: | FCL806A | Type: | ACTIVE SURROUND SCREEN SPEAKER |
Power Source: | ACTIVE | RMS Power(W): | 2500 W |
SPL Max.: | 133 dB | Frequency Response Range (-): | 55 Hz(-10 dB) |
Frequency Response Range (+): | 20k Hz(-10 dB) | LF Size: | 6.5" |
Number of LFs: | 8 | MF Size: | - |
Number of MFs: | 0 | HF Size: | 1" |
Number of HFs: | 32 | Height in mm: | 410 mm |
Width in mm: | 205 mm | Depth in mm: | 1380 mm |
Weight in kg: | 39 kg | Input Connector: | 4 pole |
Output Connector: | 4 pole | Housing: | Injection modulded |
Color: | Black | Voltage: | 230V / 115V (switchable) |
Mounting: | Hanging |
