ACTIVE SURROUND SCREEN ARRAY
Feature:
The speakers are equipped with independent 16-channel high-power amplifier and DSP, the speakers can be adjusted individually, the number of connections according to the actual size of the occasion to configure, making live sound reinforcement extremely flexible and convenient.
The power amplifier part of the use of high-efficiency switching power supply, built-in DSP module, with processing crossover, EQ, pressure limit, delay, volume and other functions, speakers using DANTE digital network transmission, each channel can be independently controlled, delay, amplitude adjustable.
Neodymium magnetic dome tweeters and neodymium magnetic mid-woofer constitute a dynamic margin of great combination, tweeters coaxial array arrangement in the mid-bass speaker above, the sound image positioning more accurate, improve the line array speaker far field near the sound field uniformity and clarity.
Application:
Immersive cinema, Immersive classroom, Shopping centre, Hotel lobby, Bar, Restaurant, Corporate club, etc.
Product Description

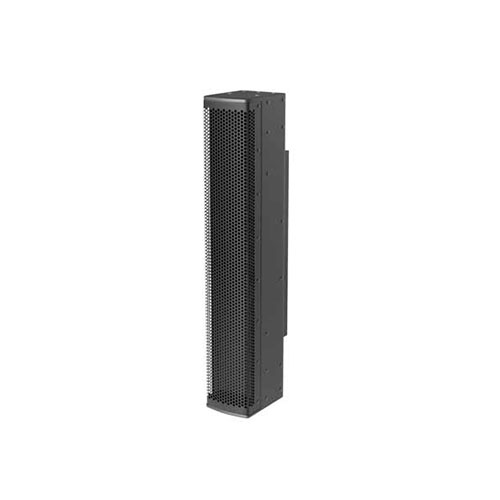

The FCL804A is an active surround screen array speaker, primarily for use in LED surround screen cinemas.
The cabinet is made of birch plywood, light weight and sturdy, the active surround screen speaker provides a frequency range of 65Hz-20kHz, with smooth frequency and phase response.
The tweeters are arranged in a coaxial array above the bass and mid range loud speakers for more accurate sound and image positioning, improving the uniformity and clarity of the far and near sound fields of the line array.
24 1" neodymium dome tweeters and 8 4" neodymium mid-bass speakers form a combination with a large dynamic margin, the tweeters are arranged in a coaxial array above the mid-bass loud speaker for more accurate sound and image positioning, improving the line array.
The loud speaker is equipped with an independent 16-channel high-power amplifier and DSP, and the speakers can be adjusted individually, with the number of connections configured according to the actual size of the occasion, making live sound reinforcement extremely flexible and convenient.
The amplifier part uses a high efficiency switching power supply, built-in DSP module, with processing crossover, EQ, pressure limit, delay, volume and other functions, the speaker uses DANTE digital network transmission, each channel can be independently controlled, delay, amplitude adjustable.
Product Parameter
| Model: | FCL 804A | Type: | ACTIVE SURROUND SCREEN ARRAY SPEAKER |
| Power Source: | ACTIVE | RMS Power(W): | 800 W |
| SPL Max.: | 126 dB | Frequency Response Range (-): | 65 Hz(-10 dB) |
| Frequency Response Range (+): | 20k Hz(-10 dB) | LF Size: | 4" |
| Number of LFs: | 8 | MF Size: | - |
| Number of MFs: | 0 | HF Size: | 0 |
| Number of HFs: | 24 | Height in mm: | 185 mm |
| Width in mm: | 1101 mm | Depth in mm: | 310 mm |
| Weight in kg: | 24.5 kg | Input Connector: | 4 pole |
| Output Connector: | 4 pole | Housing: | Injection moulded |
| Color: | Black | Voltage: | 230V / 115V (switchable) |
| Mounting: | Hanging |
