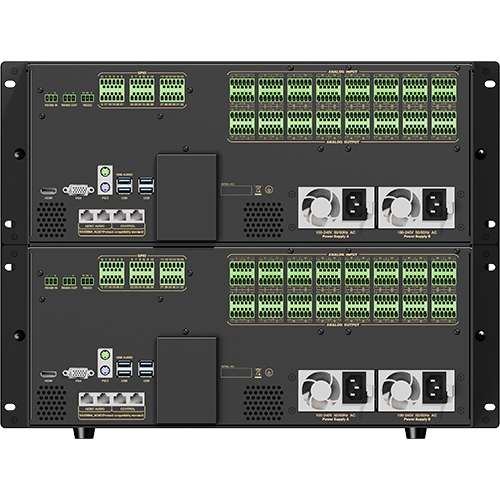

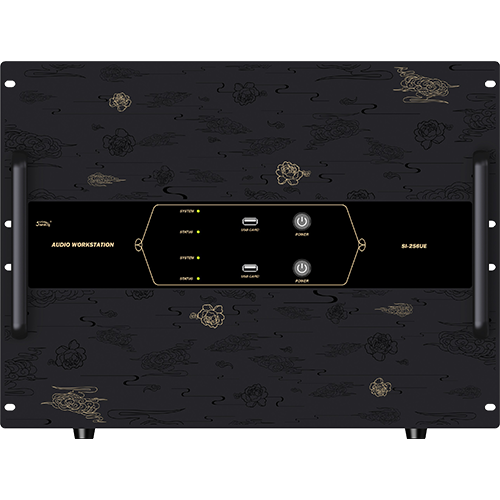

SI-256UE

The Soundking audio workstation is a professional large-scale network audio processing platform built on the RAVENNA/AES67 standard. High-performance hardware and operating  system integrate core technologies such as professional network audio high-speed transmission and reception, and DSP 6A+ processing. It supports a single network cable and a  single motherboard, and supports 4096-level FIR (filtering) and 192kHz high sampling rate. AES67 local and network audio control software (SK AES67 Controller and VSC virtual  sound card) enables more flexible project coordination. This series of products adopts redundant backup design for core interfaces such as power supply and DA network audio,  enhancing the reliability of large projects and suitable for large conferences, airports and railways, radio and television, theater sound reinforcement, and other scenarios.

Features:

Redundancy mode: Pioneering quadruple  ultra-redundancy: dual analog backups, dual  network backups, dual-machine independent  operation mode, capable of dual-core stacking,  doubling the usage for two service stations,  and doubling the total number of DSP  processing and I/O. 2. Customizable DSP functions for each channel. 3. Maximum processing (256x256) *  2-channel network audio. 4. Supports up to 180*2 4096-order FIRs. 5. Optional up to (32x32) *2 analog channels  (expandable to 32*2 analog microphones). 6. GPIO can be optionally equipped with up  to 16*2 groups (32*2, with customizable  input and output).
