Digital Audio Processor
AMP-3232M is a 1/4 rack-width network audio matrix that utilizes the AES67 network audio transmission protocol. It supports 4 analog + 28 network audio inputs and outputs. With automatic mixing capabilities, compact and flexible size, and multiple network channels, it can be used for mixing processing across multiple nodes.
Functional features
1.The sampling rate is 48kHz.
2.High-performance AD/DA, low distortion, wide dynamic range, and pure sound quality.
3.Online connectivity, efficient and concise, engineering-friendly operation interface software, real-time control of all functions and monitoring of machine working status.
4.4-channel MIC/LINE input, 4-channel balanced output.
5.28-channel AES67 network input, 28-channel AES67 network output.
6.Each input features adjustable hardware gain (0dB/15dB/20dB/24dB) and independent 48V phantom power control.
7.The volume of input and output audio signals can be independently adjusted, with a range of mute, -60.0 to +12.0 dB.
8.2 Gigabit Ethernet ports, capable of being connected in series for networking. The NETA port supports POE power supply.
9.Support power LINK interface for hand-in-hand power supply during multi-machine expansion, facilitating engineering installation.
The panel features 14 LEDs indicating audio and system status, along with a phantom power switch button, enabling user-friendly human-machine interaction. Support the expansion from 2 machines to 1 1U machine cabinet installation, with panel design featuring bracket mounting holes. Support automatic audio mixing function
Product Description
| Input voltage | DC12V |
| Front panel | Channel level indicator lights x8; [POWER] power indicator light x1; [Phantom Power] 48V phantom power x1; [SIGNAL] network communication status light x1; phantom power indicator lights x4 |

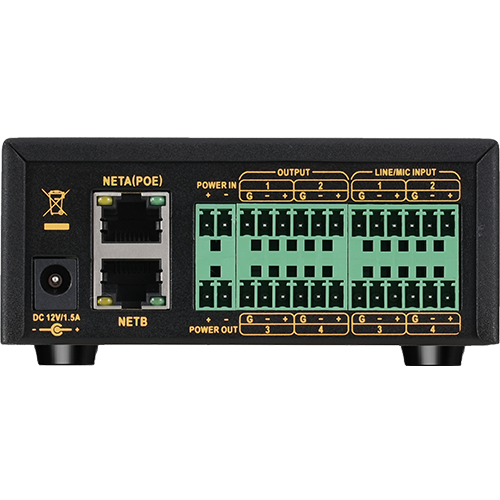

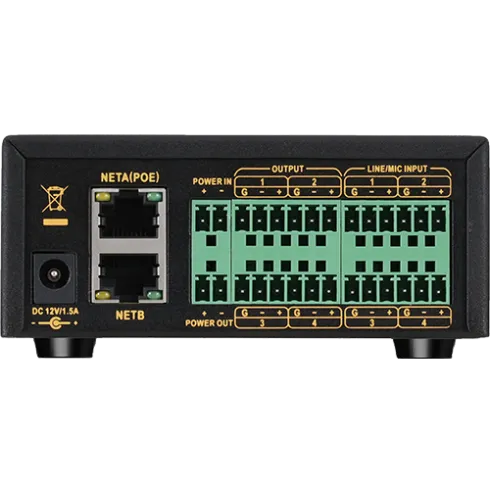

| Rear panel | 【DC12V/1.5A】Power input socket x1; 【NETA(POE)】Gigabit network interface x1; 【NETB】Gigabit network interface x1; 【POWER IN】Power LINK input interface x1; 【POWER OUT】Power LINK output interface x1; Audio input channels x4; Audio output channels x4 |
| Analog audio channel | 4 inputs and 4 outputs |
| Network audio channel | 28 in, 28 out |
| Network audio delay | 1/2/5/6ms |
| Sampling rate | 48kHz |
| Signal-to-noise ratio | ≥99dB (1kHz+4dBu, A-weighted, 0dB microphone gain); ≥85dB (1kHz+4dBu, A-weighted, 24dB microphone gain) |
| Harmonic distortion | ≤0.005% (1kHz+4dBu, A-weighted, unity gain) |
| Channel isolation | ≤-90dB (1kHz+4dBu, A-weighted, unity gain) |
| Frequency response | ±0.2dB （20Hz~20kHz） |
| Maximum input level | 14dBu±1dBu（1kHz,THD+N≤1%） |
| Maximum output level | 14dBu±1dBu（1kHz,THD+N≤1%） |
| Dynamic range | ≥109dB (1kHz maximum output level, unity gain, A-weighted) |
| Microphone preamp gain | 0/15/20/24dB, a total of 4 levels |
| Power supply | Supports adapters and PoE-AF power supply. The adapter power supply has a rated voltage of 12VDC and 1.5A, and supports daisy-chaining (requires adapter power supply, up to 2 devices can be daisy-chained) |
| Accessories | 1 power adapter, Phoenix terminal connector |
| Product dimensions (L x W x H) | 108 x 149 x 45mm |
| Packaging size (L x W x H) | 275 x 275 x 95mm=0.007m³ |
| Net weight/gross weight | 0.65kg/1.18kg |
