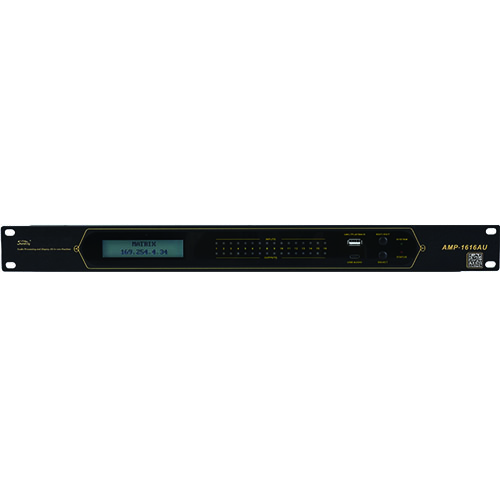

AMP-1616AU is a 1U rack-mounted audio processing and display all-in-one device, utilizing the AES67 network audio transmission protocol and supporting the input and output of 16 analog channels + 16 network audio channels. The device integrates automatic mixing and GPIO control functions, efficiently meeting the needs of multi-node mixing processing. Equipped with an HDMI interface, it supports 2-out-of-1 signal source switching and audio-video separation. The body is equipped with two multifunction buttons, supporting IP display switching, mute control, phantom power on/off, and long-press reset operations.
Product Description
| Specifications | |
| Input power | 90V-260Vac 50/60Hz |
| Front panel | [INPUTS] 16x channel level indicator lights; [OUTPUTS] 16x channel level indicator lights; [SYSTEM] 1x system status light; [STATUS] 1x abnormal status light; [UAC/PLAYBACK] 1x; [USB AUDIO] 1x; [EDIT/EXIT SELECT] 2x buttons; |
| Rear panel | [90V-260Vac 50/60Hz 40W] Power input socket (with switch, fuse) x1; [AES67/RAVENNA] Gigabit network interface x2; [RS232] x1; [RS485 IN] x1; [RS485 OUT] x1; [GPIO] GPIO control port x16; [ANALOG LINE/MIC INPUTS] Analog audio input x16; [ANALOG LINE OUTPUTS] Analog audio output x16; [HDMI IN1/2] Analog video input x2; [HDMI OUT] Analog video output x1; |
| Analog audio channel | 16 inputs and 16 outputs |
| Network audio channel | 16 inputs and 16 outputs |
| Analog video channel | 2 in 1 out |
| Network audio delay | 1/2/5/6ms |
| Sampling rate | 48kHz |
| Signal-to-noise ratio | ≥96dB (1kHz+4dBu, A-weighted, 0dB microphone gain); ≥85dB (1kHz+4dBu, A-weighted, 24dB microphone gain) |
| Harmonic distortion | ≤0.005% (1kHz+4dBu, A-weighted, unity gain) |
| Channel isolation | ≤-90dB, (1kHz+4dBu, A-weighted, unity gain) |
| Frequency response | ±0.3dB （20Hz~20kHz） |
| Maximum input level | 14dBu±1dBu（1kHz,THD+N≤1%） |
| Maximum output level | ≥106dB (1kHz maximum output level, unity gain, A-weighted) |
| Dynamic range | ≥106dB (1kHz maximum output level, unity gain, A-weighted) |
| Pre-amplifier gain | 0\15\20\24dB, 4 levels in total |
| Function | Input and output audio signal volumes are independently adjustable, from mute to -60.0 to +12dB. Input/output channels provide optional DSP functions: signal generator, noise gate, feedback suppression, EQ, high/low pass, delay, expander, compressor, limiter, ducking, FIR, etc. |
| Accessories | Power cord, Phoenix terminal connector |
| Product dimensions (L x W x H) | 482 x 231 x 45mm |
| Packaging size (L x W x H) | 520 x 340 x 90mm=0.016m³ |
| Net weight/Gross weight | 2.7kg\3.44kg |
