Features
1. Redundancy mode: Pioneering quadruple ultra-redundancy: dual analog backups, dual network backups, dual-machine independent operation mode, capable of dual-core stacking, doubling the usage for two service stations, and doubling the total number of DSP processing and I/O.
2. Customizable DSP functions for each channel.
3. Maximum processing (1536x1520) * 2-channel network audio.
4. It supports up to 160*2 channels of echo cancellation or 192*2 4096-tap FIRs.
5. Optional up to (32X32) * 2 analog channels (expandable to 32*2 analog microphones).
6. Up to 16 sets of *2-channel GPIO interfaces are available for option.
Product Description
| Specifications | |
| Power supply | 100-240VAC 50/60HZ |
| Rack size | 8u |
| Dual-machine version | The following functions/interfaces are provided in two copies, which can serve as backups for a dual-network system. |

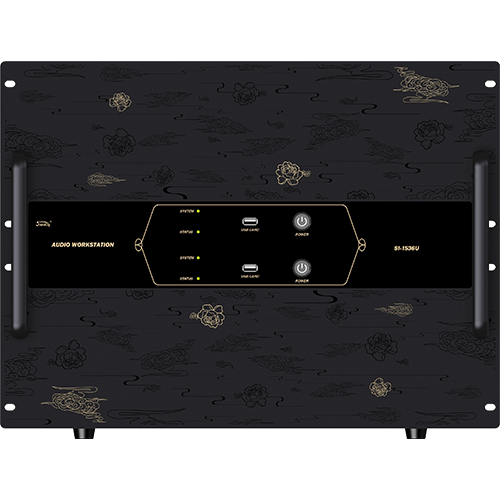

| Front panel | Power switch: 2; System indicator light: 2; Status indicator light: 2; USB CARD audio interface: 2; |

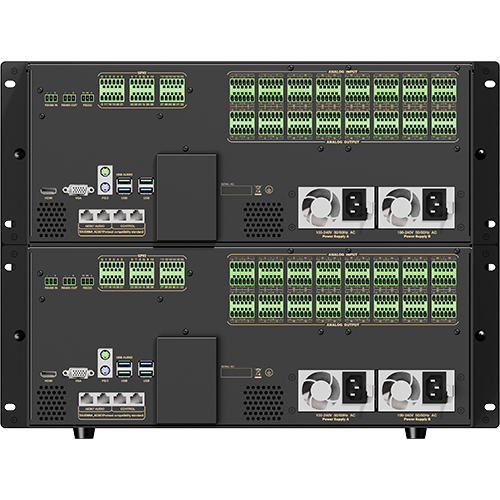

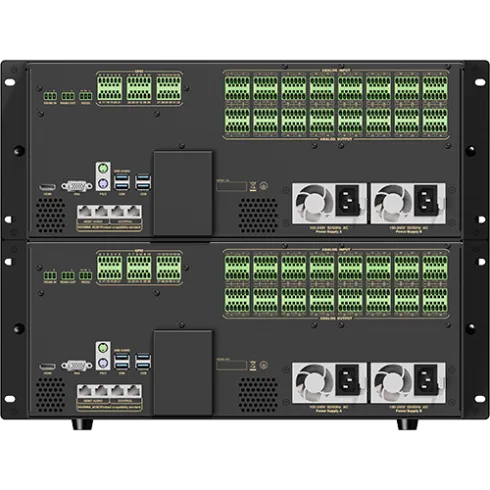

| Rear panel | AC power interface: 2; RJ45 2.5G network audio interface: 2; RJ45 network control interface: 2; USB Audio interface: 1;USB debugging port: 3; HDMI interface: 1; VGA interface: 1; PS/2 mouse and keyboard interface: 1; RS232 interface: 1; RS485IN: 1;RS485 OUT: 1; GPIO: 16 groups (32, customizable input/output); Analog input interface: 32 (customizable); Analog output interface: 32 (customizable) PS: All corresponding interfaces on the back panel can be used individually; the quantity is doubled. |
| USB Audio channe | 8x8 |
| Protocol compatibility standard | RAVENNA_AES67 |
| Localization status of core components | Impor |
| Total input / output channels of matrix channels | 1536/1520 |
| SND Network channel input | 1456@48k (Net channel 1456 + USB input 24 + analog 32, total 1512, customizable with different ratios) |
| SND Network channel output | 1456@48k (Net channel 1456 + USB input 24 + analog 32, total 1512, customizable with different ratios) |
| Internal matrix | 1536x1520@48k |
| Maximum sampling rate | 192kHz |
| Number of automatic mixing groups | 16 |
| Max channel count per group for automatic mixing | 64 |
| AEC (Acoustic Echo Cancellation) | 160 |
| ANS background noise reduction | 160 |
| Remix | Fully mixed audio, supporting independent GainSharing for output channels |
| EQ (input/output) | 1520 |
| FIR | 4096 steps, 192 options (choose one from AEC/ANS functions) |
| Feedback inhibition (input) | 1520 |
| Delay device (input, output) | 1520 |
| Expander (input, output) | 1520 |
| Compression (input, output) | 1520 |
| Limiting (output) | 1520 |
| High-pass, low-pass (input, output) | 1520 |
| Accessorie | 4 AC power cords, Phoenix terminal connectors |
| Product dimensions (L x W x H) | 482 x 438 x 364mm |
| Packaging size (L x W x H) | 585 x 535 x 445mm=0.139m |
| Net weight/Gross weight of product | 28.1kg/33.28kg |
