control system and video processing device
X12 is a professional control system and video processing device designed for LED display engineering applications. It has DVI and HDMI connectors and supports seamless switching between multiple signals, broadcast quality scaling, and a multi-window display. The controller boasts 12 Gigabit Ethernet ports. A single unit features a loading capacity of 7.8 million pixels, with 8192 pixels in maximum width or 4096 pixels in maximum height. Meanwhile, the X12 is equipped with abundant practical functions that enable flexible screen control and high-quality image display, which gives it an edge in the LED display engineering application field.
Product Description

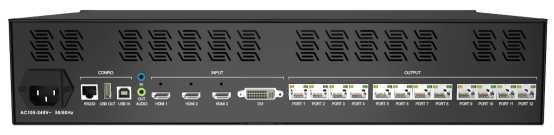

Input: 1× DVI, 3× HDMI1.4.
Input resolution: up to 1920×1200@60Hz, supporting customized settings.
Output: 12× Gigabit Ethernet ports, supporting Ethernet port backup or sender backup.
Loading capacity: 7.8 million pixels, up to 8192 pixels in width or 4096 pixels in height.
Switching, cropping, splicing, and scaling of video sources.
Display of up to 3 windows, of which the location and size can be freely adjusted
HDCP1.4 compliant.
Dual USB 2.0 for high-speed configuration, used for debugging or cascading.
Support RS232 protocol
Brightness, color temperature, contrast, hue, and saturation adjustment.
Better gray at low brightness.
