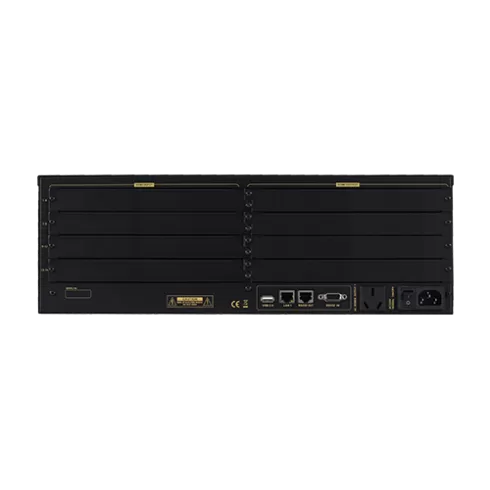

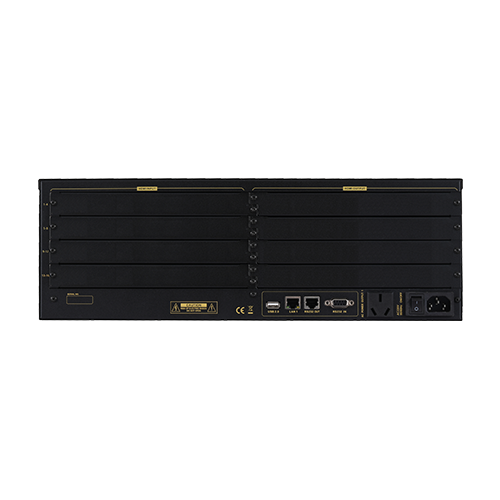

WVMI616MG AV Seamless Hybrid matrix

·Equipped with standard Ethernet ports and standard tablet APP control software, it features a built-in central control module. The tablet app interface can be customized through the central control's programming software, allowing for the addition, deletion of buttons and text, modification of background images, and changes to button shapes, among other modifications;

·Web-controllable, with 2 serial ports, supports serial port control, keyboard control, and cross-platform control software, with strong adaptability. Provides Android app, Apple IOS app, and computer control software, allowing for simultaneous use of the three methods. The iPhone and iPad software have been approved by Apple and can be downloaded from the App Store. In addition to the app, it also supports browser web page control on systems such as HarmonyOS, Linux, Windows, and Apple IOS. Users can modify the names of input and output channels on the web page for easy memory. When opening the web page, a password must be entered first, and password management and modification functions are provided;

 ·Card-inserting structure, mixed input and output, one card with four channels, supporting DVI, VGA, AV, HDMI, SDI, HDBaseT, YPbPr, network, and other boards;

· (Requires a voice control box) Supports AI-based voice control. The voice recognition system does not need to connect to the Internet, nor does it require online upgrades, ensuring that indoor conversation content remains confidential. All input and output channels can be renamed on-site, such as calling "switch from DVD to projector." The voice recognizer and matrix are wirelessly connected, making them easy to move;

·Supports multiple control interfaces simultaneously, with strong compatibility. It allows third-party systems (such as central control systems) to control the matrix through serial ports RS-232 or RS485, infrared, network TCP, and network UDP. Hardware provides 2 serial ports and 1 network port;

·The panel features 15 hardware buttons and 3 working status indicator lights, allowing direct switching and control operations through these;

· (Optional) Supports dual power supply, with two power supplies installed internally that are truly redundant, not just dual plugs;

 · (With preview module) Support network visualization preview, allowing viewing of video images of all input signals on both the app and computer software; ·Below is a choice between two options:  a. (Optional) Equipped with a 7-inch color touch screen (4.3 inches for the 8-channel board series), all input and output channels have a corresponding button on the touch screen. Users can modify the button names by long-pressing the screen, or modify the touch screen interface (add or delete pages, button shapes, backgrounds, etc.) through software;  b. (Standard configuration) Equipped with a blue LCD display, which shows the working status of the matrix (such as viewing the correspondence between output and input channels);

·The output card supports audio de-embedding and can simultaneously output analog audio and digital audio, meaning that sound can be output through both the HDMI interface and the 3.5 audio connector; ·Each channel supports images in resolutions of 4K and 2K, with up to 16 adjustable resolutions and refresh rates, including 24HZ, 30HZ, 50HZ, 60HZ, etc., to enhance compatibility and adapt to various display screens;

·Support for subtitles, allowing direct modification of subtitle content through the network and serial port, with independent and distinct subtitles for each output video channel;

·Each output channel can independently adjust brightness and contrast; ·Bandwidth: 18Gbps;

·Bit clock jitter: <0.15Tbit; ·Bit rise time: <0.3Tbit (20%--80%);

·Bit drop time: <0.3Tbit (20%--80%);

·Maximum transmission delay: 5ns;

·Switching speed: 200ns (maximum time);

· Serial control interface: RS-232, 9-pin female D-type interface, baud rate: 9600, data bits: 8, stop bits: 1, no parity check; 2 = RX, 3 = TX, 5 = GND;

·Ethernet control interface: RJ-45 female connector, TCP/IP Server and UDP modes, auto-sensing 10M or 100M, full duplex; TCP port number: 10008; ·Mean time between failures (MTBF): 30,000 hours.
