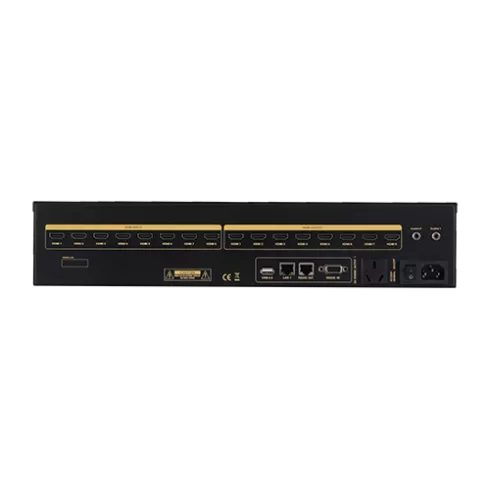

WVI88G Video Seamless Matrix All-In-One Machine

·Controlled by an embedded ARM processor, it boasts faster and more stable operation;

·Supports 8-channel HDMI signal input, 8-channel HDMI signal output, with audio de-embedding;

·Seamless instant switching, with no black screen during the signal switching process;

·Each channel supports up to 4K@30Hz resolution input, and can output images with a maximum size of 3840 x 2160, while being backward compatible with 1080P@60Hz;

·Supports splicing (2 x 2, 1 x 2, 2 x 1) for regular TVs;

·The resolution of each output channel can be adjusted individually; ·It provides 2 serial ports, 1 Ethernet port, and 1 infrared port, supporting third-party control (such as central control) of the matrix through serial port RS-232, infrared, network TCP, and network UDP simultaneously. It can also be controlled through the built-in panel buttons;

·Full-platform control software with strong adaptability, featuring a built-in central control module. It supports Android apps, Apple IOS apps, and computer control software, allowing for simultaneous use of these three methods. It also supports interface design software for central control, allowing on-site modification of all channel names on the interface for user convenience. Users can freely modify the background images and colors of the app, add or delete buttons as desired, and customize the appearance of buttons (in any shape) according to their needs. The iPhone and iPad software have been approved by Apple and can be downloaded from the App Store;

 ·In addition to the app, it also supports browser web page control for systems such as HarmonyOS, Linux, Windows, and Apple iOS. Users can modify the names of input and output channels on the web page for easy memory. When opening the web page, you must f irst enter a password to log in before you can control it;

 ·Equipped with a blue light LCD display, it supports a one-click quick query function, making it convenient to view the switching status of the matrix;

·Supports HDCP to ensure that media with content protection can be displayed normally;

·Equipped with power-off memory and on-site power-off protection functions, it automatically restores the status before shutdown upon power-on;

·Adopting an internationally compatible input power supply, it supports operation under a wide voltage range of 100V-240V.
