introduction

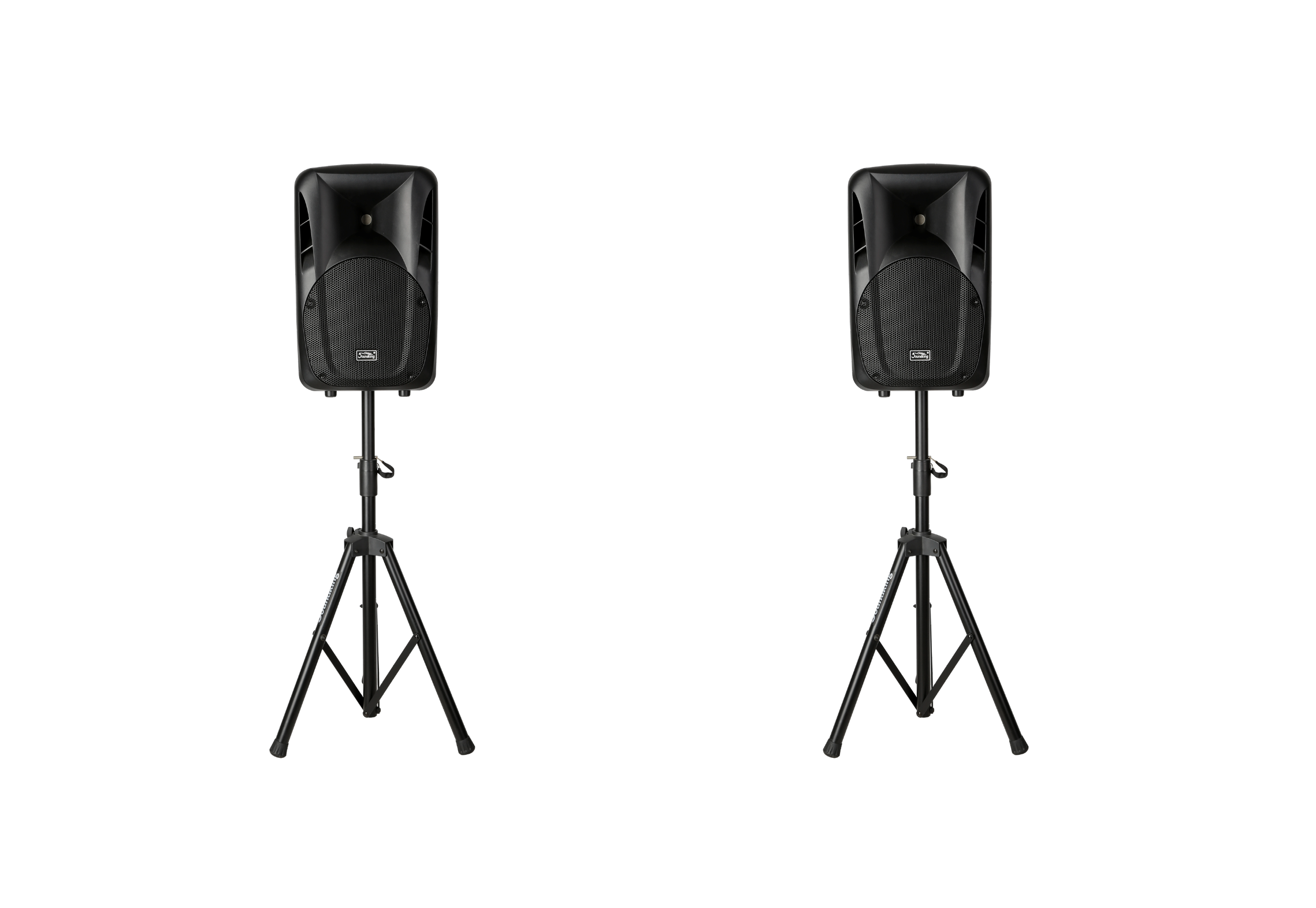

Multifunction portable PA system consists of two 10"plastic passive
speaker cabinet and a 10CH input powered cabinet mixer and two
wireless microphones. With the additional speaker stand, they form a
high performance pro PA system.
Application
Suitable for salon, bar, party, band show, conference room, etc;
Features
>Powered cabinet mixer features multiple functions, 10CH signa
inputs,EQ.DSP, feedback compressor. 2CH power amplifier.
>Switching mode power supply, light weight, stable performance
universal 110V~230V power supply.
>USB interface of iPad /iPhone to connect with audio source of cel
phone
>Mixer has main out and LF boost function
>Footswitch control
>WlFl connection
Product Description
| Specification | |
| Type | 10" two way active speaker cabinet system |
| Frequency response | 70Hz~20kHz(±3B) 60Hz~20kHz(-10dB) |
| Sensitivity(1m/1W) | 98dB |
| Max SPL(@1m) | 126dB |
| Speaker cabinet | |
| Rated impedance | 4Ω |
| Power | 200Wx2 |
| LF speaker cabinet | 1X10" woofer/50mm voice coil/200w |
| HF driver | 1X 34mm HF driver/34mm voice coil /30W |
| Coverage(H*V) | 90°x60° |
| Crossover | 2.5kHz |
| Connector | JACK |
| Speaker cabinet dimension (W*H*D) | 348x557x330(mm) |
| Speaker system net weight | 32kg |
