Technological Innovation
A dome speaker made of metal composite film, featuring excellent high-frequency characteristics.
A DSP audio processor with 24 bit quantization and a sampling frequency of 192kHz.
Dual channel digital D-class amplifier.
100-240V wide voltage switching power supply input.
Convenient and practical room temperature adjustment switch.
Excellent low-noise signal processing circuit design.
Design of Gradient Long Stroke Inverted Tube The front design features an LED backlit logo with adjustable brightness.
No screws can be seen on the front of the loudspeaker, which is aesthetic in appearance and unique in style.
Multiple installation methods: Countertop installation (with the option of elastic shock-absorbing base), wall shelf installation, floor stand placement, and suspension (the cabinet requires customization)
Product Description

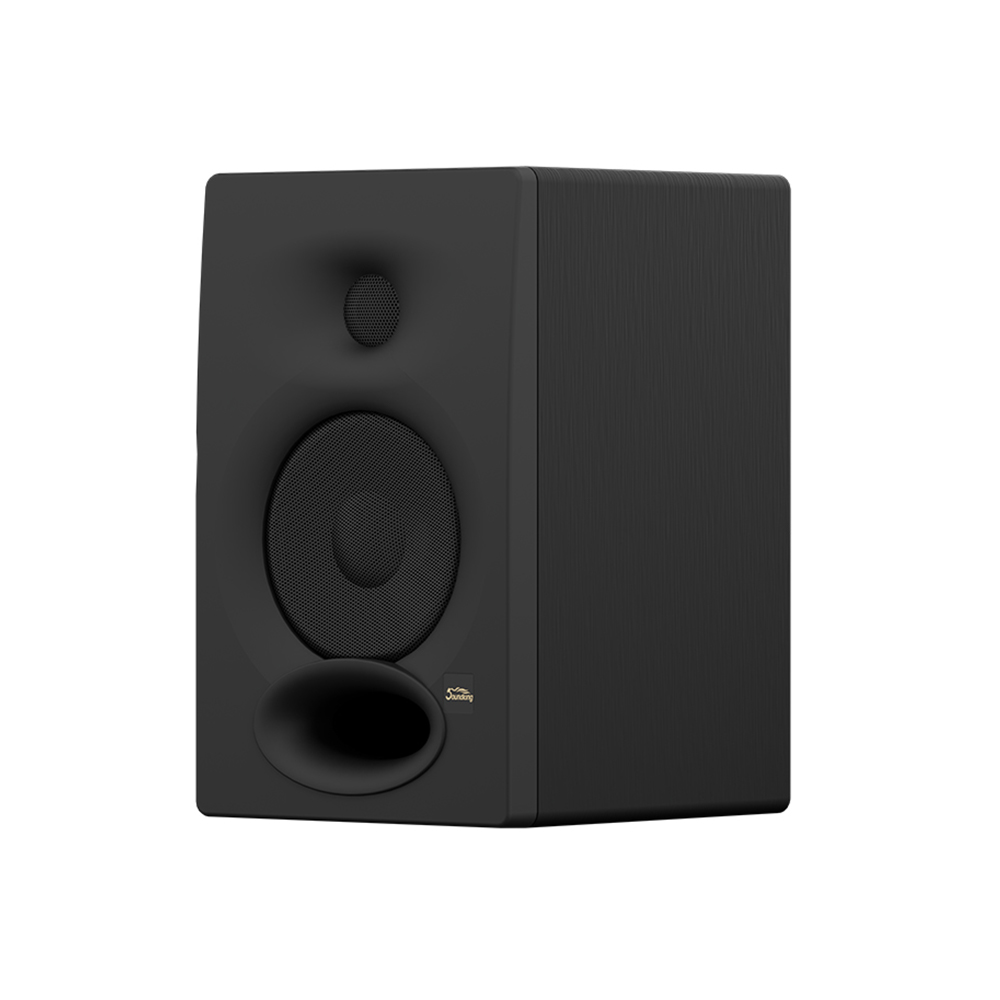

| Model | MSE8A |
| Type | 8" Two-Way Active Monitor |
| Driver | LF: 1x8 "LF speaker/ φ 38mm VC/120W/4Ω HF: 1x1" Neodymium Magnetic Aluminium Magnesium Composite Membrane Dome Speaker/φ25mm VC/30W/6Ω |
| Free Field Frequency Response (± 3dB) | 42Hz-23kHz |
| Input Sensitivity (100dB SPL at 1m) | -6dBu，±6dB Adjustable |
| Max SPL-peak (@ 1m Calculated Value) | 116dB |
| Input Impedance | 10kΩ Balance |
| Rated Power of Amplifier | 1x120W/4Ω (LF)+1x50W/6Ω (HF) |
| Crossover | 2.0kHz |
| Background Noise (Testing Distance r=1m) | ≤7dB(A-weighted) |
| Total Harmonic Distortion (THD) at 90dB SPL @ 1m Axial Test | |
| Test Frequency Range: 50Hz-100Hz | ≤2% |
| Test Frequency Range: >100Hz | ≤0.5% |
| Input Signal Connector | 1 x XLR Female Buckle |
| ISDN Control Interface | 2 x RJ45 |
| Amplifier Power Supply | 100-240V AC 50/60Hz |
| Dimension (W x H x D) | 274 x 440 x 323(mm) |
| Net Weight | 14kg |
| Usage Environment | Temperature: 15℃-35℃ Humidity: 45%-75% |
