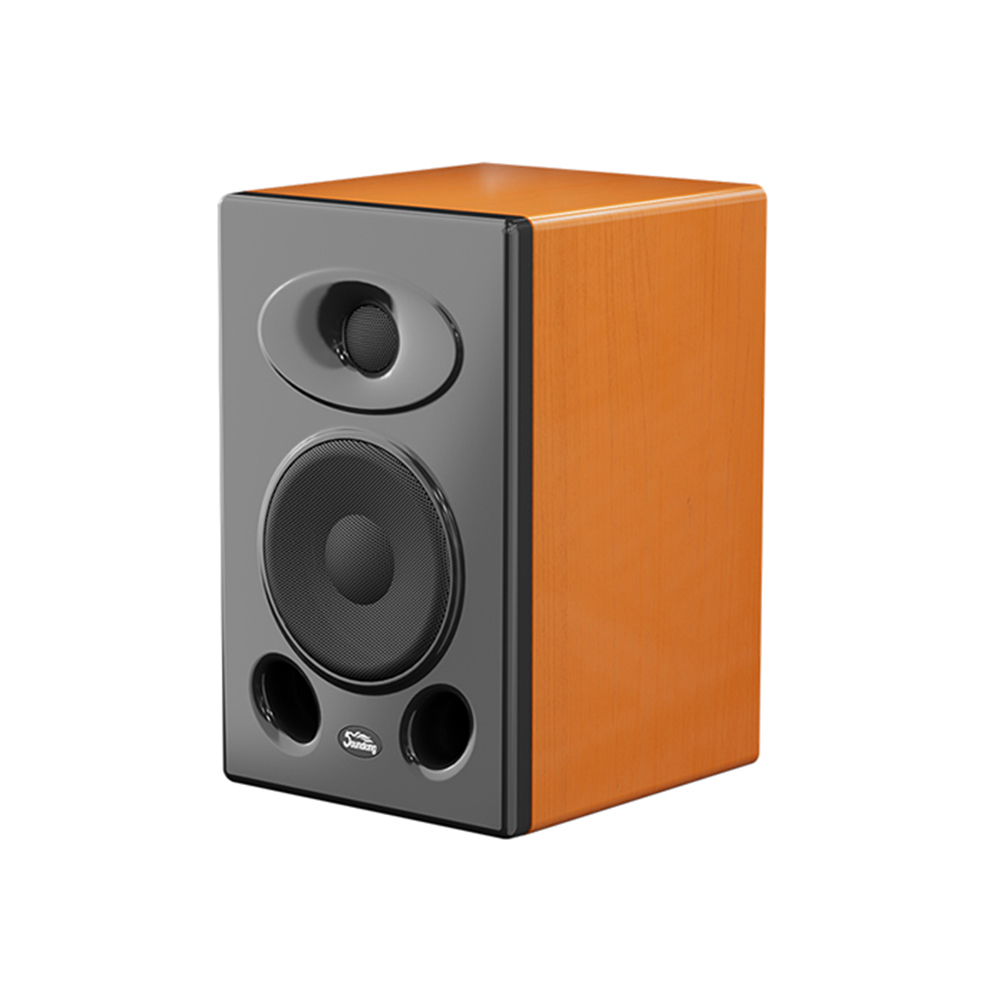

MS8A


Technological Innovation:

1.Dome speaker with excellent HF features and metal  composite film.

2.A DSP audio processor with 24 bit quantization and a  sampling frequency of 192kHz.

3.Dual channel amplifier, LF D-class, HF AB class thick  film amplifier.

4.100-240V wide voltage switching power supply input.

5.Convenient and practical room balance selection  switch.

6.Excellent low-noise signal processing circuit design.

7.2 x AES/EBU digital signal transmission interfaces.

8.Patented gradual long-excursion phase inversion  tube design.

9.The front design features an LED backlit logo with  adjustable brightness.

10.No screws can be seen on the front of the  loudspeaker, which is aesthetic in appearance and  unique in style.

11.Multiple installation methods: Countertop installation  (with the option of elastic shock-absorbing base),  wall shelf installation, floor stand placement, and  suspension (the cabinet requires customization).


Product Description

ModelMS8A
Type8" Two-Way Active Monitor
DriverLF: 1x8 "LF speaker/ φ 38mm VC/120W/8Ω HF: 1x1" Neodymium Magnetic Aluminium Magnesium Composite Membrane Dome  Speaker /φ25mm VC/30W/6Ω
Free Field Frequency Response (± 3dB)45Hz-23kHz
Analog Signal Input Sensitivity (100dB SPL at 1m)-6dBu,±6dB Adjustable
Digital Signal Input Sensitivity (100dB SPL at 1m)-20dBFS,±6dB Adjustable
Max SPL-peak(@ 1m Calculated Value)116dB
Input Impedance10kΩ Balance
Rated Power of Amplifier1x120W/8Ω (LF)+1x50W/6Ω (HF)
Crossover2.0kHz
Background Noise (Testing Distance r=1m)≤ 7dB (A-weighted)
Total Harmonic Distortion (THD) at 90dB SPL @ 1m Axial Test
Test Frequency Range: 50Hz-100Hz≤2%
Test Frequency Range: >100Hz≤0.5%
Input Signal Connector
Analog1 x XLR Female Buckle
Digital AES/EBU1 x XLR Female Buckle
Output Signal Connector
Digital AES/EBU1 x XLR Male
ISDN Control Interface2 x RJ45
Digital Signal Input
Quantization16-24bit
Sampling Frequency32-192kHz
Amplifier Power Supply100-240V AC 50/60Hz
Dimension (W x H x D)274 x 440 x 342(mm)
Net Weight14kg
Usage EnvironmentTemperature: 15℃-35℃ Humidity: 45%-75%
