Technological Innovation:
1.Dome speaker with excellent HF features and metal composite film.
2.A DSP audio processor with 24 bit quantization and a sampling frequency of 192kHz.
3.Dual channel amplifier, LF D-class, HF AB class thick film amplifier.
4.100-240V wide voltage switching power supply input.
5.Convenient and practical room balance selection switch.
6. Excellent low-noise signal processing circuit design.
7. 2 x AES/EBU digital signal transmission interfaces.
8. Patented gradual long-excursion phase inversion tube design.
9.The front design features an LED backlit logo with adjustable brightness.
10.No screws can be seen on the front of the loudspeaker, which is aesthetic in appearance and unique in style.
11.Multiple installation methods: Countertop installation (with the option of elastic shock-absorbing base), wall shelf installation, floor stand placement, and suspension (the cabinet requires customization).
n
Product Description

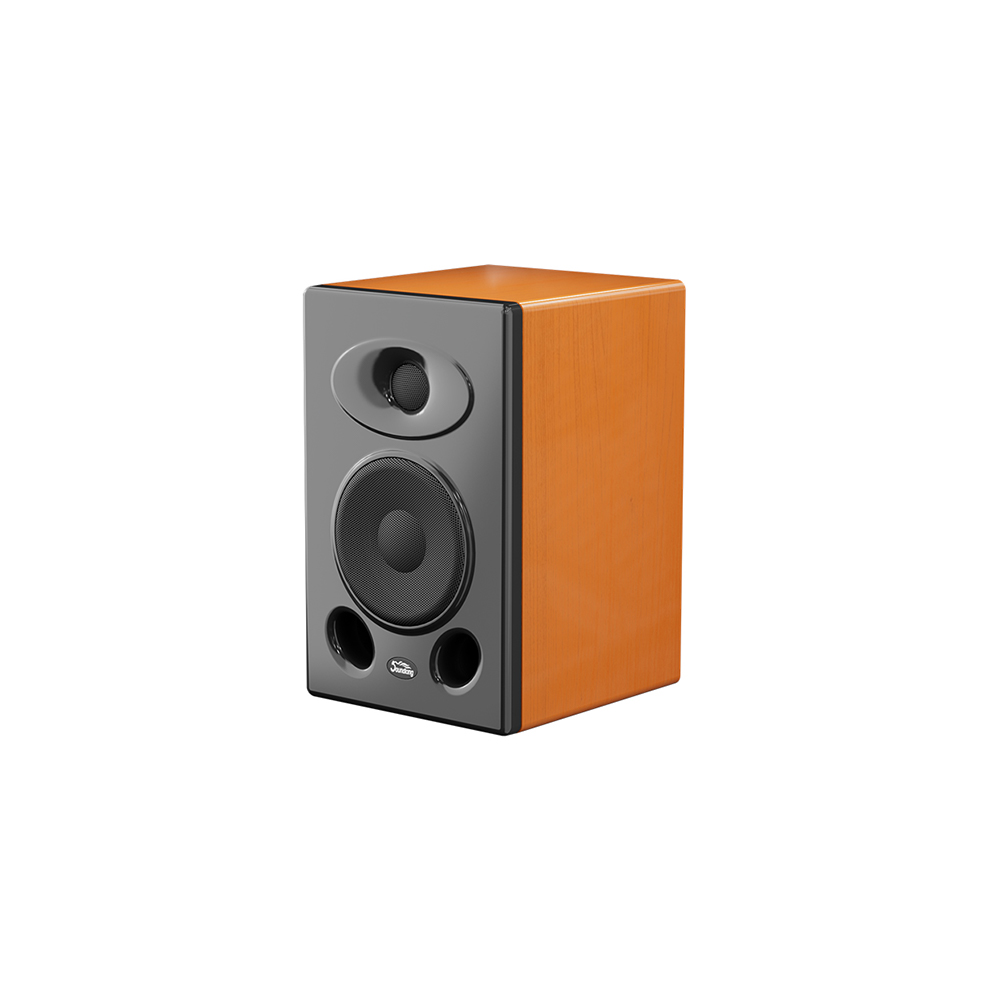

| Model | MS5A |
| Type | 5" Two-Way Active Monitor |
| Driver | LF: 1x5" LF speaker/ φ 25mm VC/40W/8Ω HF:1x1" Neodymium Magnetic Aluminium Magnesium Composite Membrane Dome Speaker/φ25mm VC/30W/6Ω |
| Free Field Frequency Response (± 3dB) | 55Hz-23kHz |
| Analog Signal Input Sensitivity (100dB SPL at 1m) | -6dBu,±6dB Adjustable |
| Digital Signal Input Sensitivity (100dB SPL at 1m) | -20dBFS,±6dB Adjustable |
| Max SPL-peak(@ 1m Calculated Value) | 111dB |
| Input Impedance | 10kΩ Balance |
| Rated Power of Amplifier | 1x70W/8Ω (LF)+1x50W/6Ω (HF) |
| Crossover | 2.0kHz |
| Background Noise (Testing Distance r=1m) | ≤ 7dB (A-weighted) |
| Total Harmonic Distortion (THD) at 90dB SPL @ 1m Axial Test | |
| Test Frequency Range: 50Hz-100Hz | ≤2% |
| Test Frequency Range: >100Hz | ≤0.5% |
| Input Signal Connector | |
| Analog | 1 x XLR Female Buckle |
| Digital AES/EBU | 1 x XLR Female Buckle |
| Output Signal Connector | |
| Digital AES/EBU | 1 x XLR Male |
| ISDN Control Interface | 2 x RJ45 |
| Digital Signal Input | |
| Quantization | 16-24bit |
| Sampling Frequency | 32-192kHz |
| Amplifier Power Supply | 100-240V AC 50/60Hz |
| Dimension (W x H x D) | 213 x 347 x 292(mm) |
| Net Weight | 8kg |
| Usage Environment | TTemperature: 15℃-35℃ Humidity: 45%-75% |
