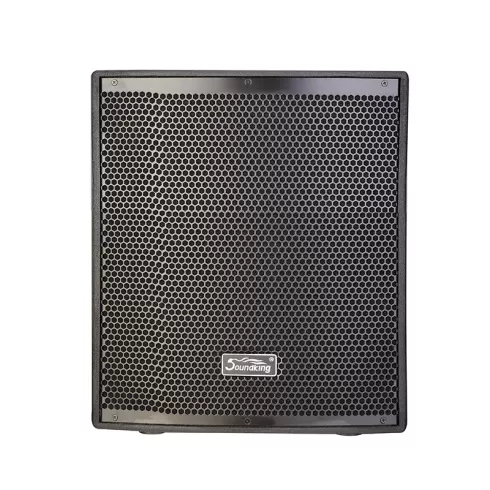

18" ACTIVE SUBWOOFER (DSP)
Feature:
Unique and compact contour, light weight, black finish；
15mm plywood with slot tongue;
φ35mm socket for pole mounting, 12 M10 flying points for suspension;
24bit 48kHz DSP;
LCD for tone adjustment: 3 band EQ, low cut, limit, delay.
Application:
Main Reinforcement, Filling Reinforcement, Stage Monitoring in Multifunction Hall, Auditorium etc.
Product Description
KV series active speaker cabinets features ferrite magnet with symmetric design and heat resistant voice coil for high power load and heat dissipation. 24bit 48kHz DSP processor have four tone modes selection, LCD for various parameter adjustment: 3 band EQ, low cut, limit, delay, volume control, etc.;
Dual power amp desiqn: LF Class-D power amp power design; LF Class-D power amp for high efficiency, compact contour, high power and reliable performance, HF class AB power amp for pleasant tone.
Product Parameter
| Model: | KV 18SAD | Type: | 18 inch Subwoofer (DSP) |
| Power Source: | ACTIVE | RMS Power(W): | 600 W |
| SPL Max.: | 130dB(Peak) | Frequency Response Range (-): | 35 Hz(-10 dB) |
| Frequency Response Range (+): | 150 Hz(-10 dB) | LF Size: | 18" |
| Number of LFs: | 1 | MF Size: | - |
| Number of MFs: | 0 | HF Size: | - |
| Number of HFs: | 0 | Height in mm: | 667 mm |
| Width in mm: | 530 mm | Depth in mm: | 615 mm |
| Weight in kg: | 35.1 kg | Input Connector: | 2 Balanced XLR in |
| Output Connector: | 2 Balanced XLR out | Housing: | Plywood |
| Color: | Black | Voltage: | 230V / 115V (switchable) |
| Mounting: | Floor monitor |
