PASSIVE TWO-WAY COAXIAL SPEAKER
Feature:
Coaxial drive technology to realize natural sound and improve the clarity.
Compact, stylish and professional design.
Variety of mounting methods, hanging or embedded, which is convenient for installation.
High power, high sensitivity, powerful and clear sound, accurate sound image positioning, uniform sound field coverage, restore the 3D sound effect, suitable for indoor sound reinforcement.
Speaker components are all imported, and can be customized if needed.
Application:
Suitable for large, medium and small conference rooms, classrooms, stations, shopping malls and other occasions;
also used in medium and high-end conferences, background music, multifunctional halls, command centres, etc.
Product Description

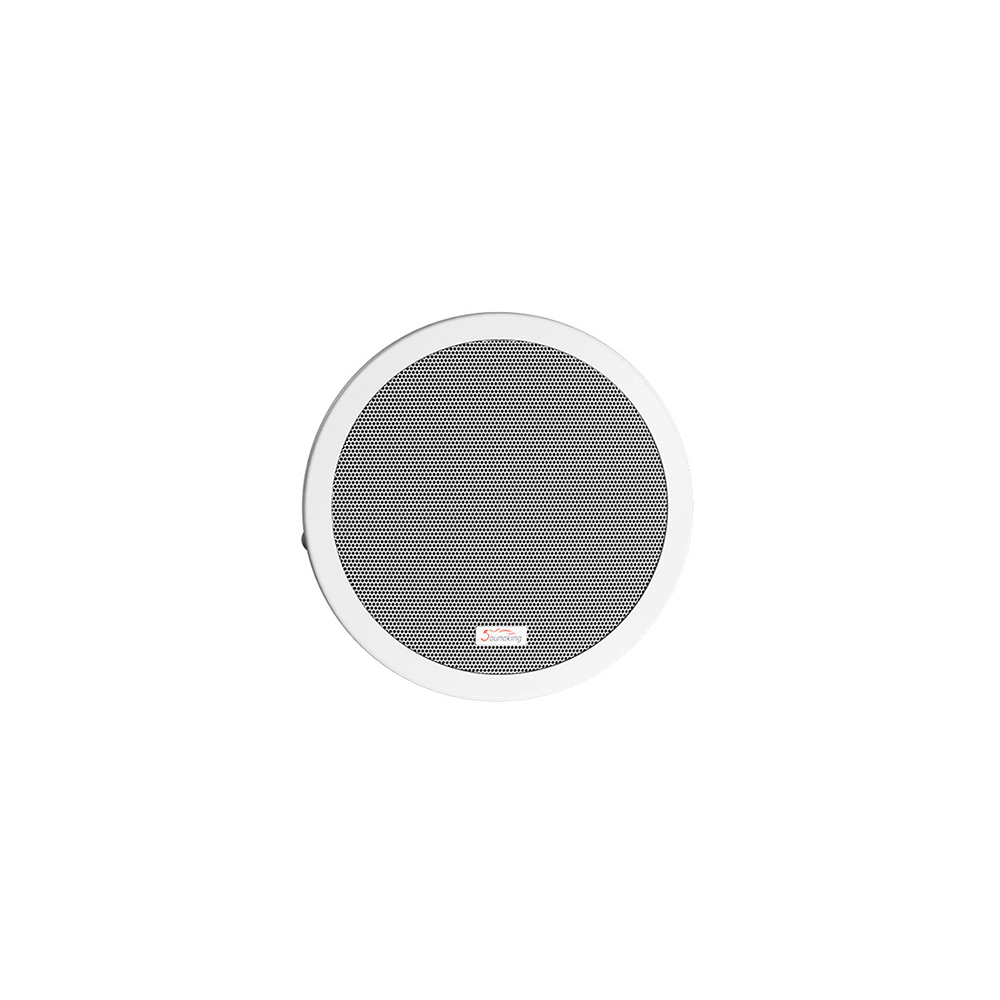

4 inch aluminum alloy speaker, integrated with the latest electro-acoustic design and wide range of coverage, is Soundking's first product in hanging installation.
Horn devices are imported and can be customized with power and sensitivity, which is very suitable for indoor sound reinforcement.
The speaker unit adopts point source coaxial speaker design, the woofer and tweeter are neodymium magnetic circuit, ensuring its high sensitivity, low distortion, high efficiency and light weight.
HC Series have two shapes: round and square, two mounting options: embedded or hanging, two modes: fixed resistance and fixed voltage. Customers can choose a suitable one to fit the environment and beautify the decoration according to sound reinforcement needs.
4 inch aluminum alloy speaker, integrated with the latest electro-acoustic design and wide range of coverage, is Soundking's first product in hanging installation;
Product Parameter
| Model: | HC 4 | Type: | PASSIVE TWO-WAY COAXIAL INSTALLATION SPEAKER |
| Power Source: | PASSIVE | RMS Power(W): | 100 W |
| SPL Max.: | 111 dB | Frequency Response Range (-): | 85 Hz (-10dB) |
| Frequency Response Range (+): | 20k Hz (-10dB) | LF Size: | 4" |
| Number of LFs: | 1 | MF Size: | - |
| Number of MFs: | 0 | HF Size: | 1.4" |
| Number of HFs: | 1 | Height in mm: | Φ200 mm |
| Width in mm: | Φ200 mm | Depth in mm: | 145 mm |
| Weight in kg: | 145 mm | Input Connector: | 4 pole |
| Output Connector: | - | Housing: | Aluminium Alloy |
| Color: | White，Black | Voltage: | - |
| Mounting: | Ceiling, Hanging |
