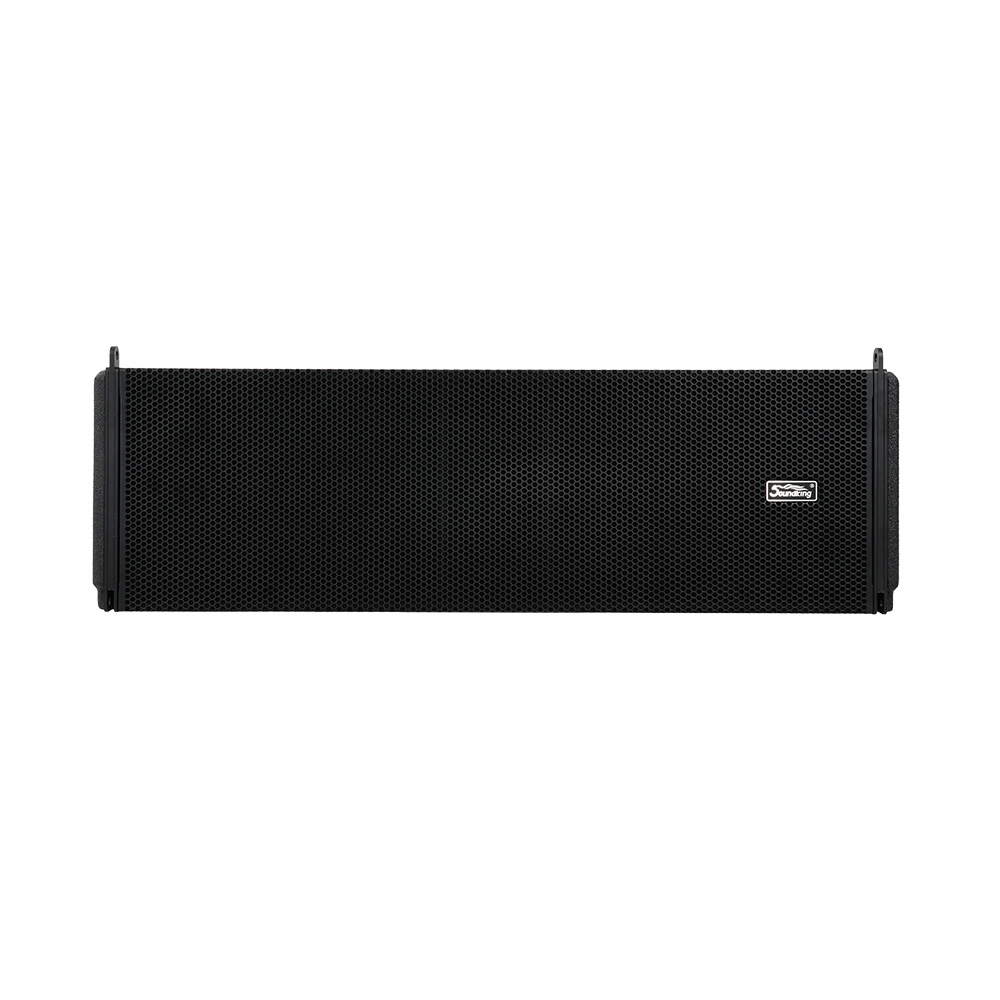

Double 12" active three-way line array speaker, specially designed for indoor and outdoor large-scale events. Equipped with 2x12"
high-power long stroke bass unit, precise transient response, low-frequency reproduction; The 4x6.5" intermediate frequency unit produces a full and natural sound; the 2x3" high-frequency unit is
equipped with waveguide design, forming a cylindrical wavefront to enhance system clarity and projection power. 3-point hanging, 0-10° stepless adjustment. Built in three channel Class D amplifier with
peak power of 7200W and RMS of 3600W, Equipped with a switching power supply and PFC(power factor corrector),it greatly improves system efficiency and maintains the stability of amplifier performance during fluctuations in the quality of the main power supply.
Product Description
Both high and mid low frequencies use neodymium magnetic units to achieve high sensitivity and lightweight design. The mid low frequency paper basin is made of imported material, with pure sound quality.
DSP is equipped with a high signal-to-noise ratio chip, focusing on delay and gain control, with RJ45 interface supporting software upgrade and PC control, and a XLR anti drop socket with dual color indicator lights.
In terms of interfaces, it includes XLR input with lock, XLR output. and XLR power input/output. The power supply and front layout of the speaker are located at the rear, covered with rain and sun resistant materials on the outside.
The amplifier integrates multiple protection mechanisms for overheating,overload, DC, undervoltage, and overvoltage to ensure stable and safe operation.
