2-way waterproof line array module
Feature:
IP46 Standard
137 dB Max SPL
120° x 10° Coverage
Application:
Large touring show, medium-size stadium, multifuction hall, church, etc.
Product Description
G series passive line array cabinet is with directivity control, evenly distributed sound field and appropriate sound pressure ratio.
G series are armed to the teeth. The shell is made of soild, high quality and moisture-proof birch plywood. The surface is processed with polyurea nano-coating. Grill and accessories are two-layerly powdered for dust proofing, UV proofing and anti-corrosive. The inside grill is srrounded with foam.
Ergonomically designed handles on both the broadside enhance portability.
Product Parameter
| Model: | G 210(waterproof) | Type: | 2-way waterproof line array module |
| Power Source: | PASSIVE | Woofer Size: | 10" |
| Number of Woofers: | 2 | Fullrange Size: | - |
| Number of Fullrange: | 0 | Tweeter Size: | 1.75" |
| Number of Tweeter: | 2 | Impedance in ohm: | 8Ω(LF), 16Ω(HF) |
| H Coverage per Element: | 120° | V Coverage per Element: | 10° |
| Frequency Response Range (-): | 70 Hz(-10dB) | Frequency Response Range (+): | 20k Hz(-10dB) |
| RMS Power(W): | 800 W(LF), 120 W(HF) | SPL max.: | 135 dB(LF), 137 dB(HF) |
| Built-in Crossover: | NO | Housing: | Plywood |
| Hanging Point(s): | 3 | Elements Angle(s): | 10° |

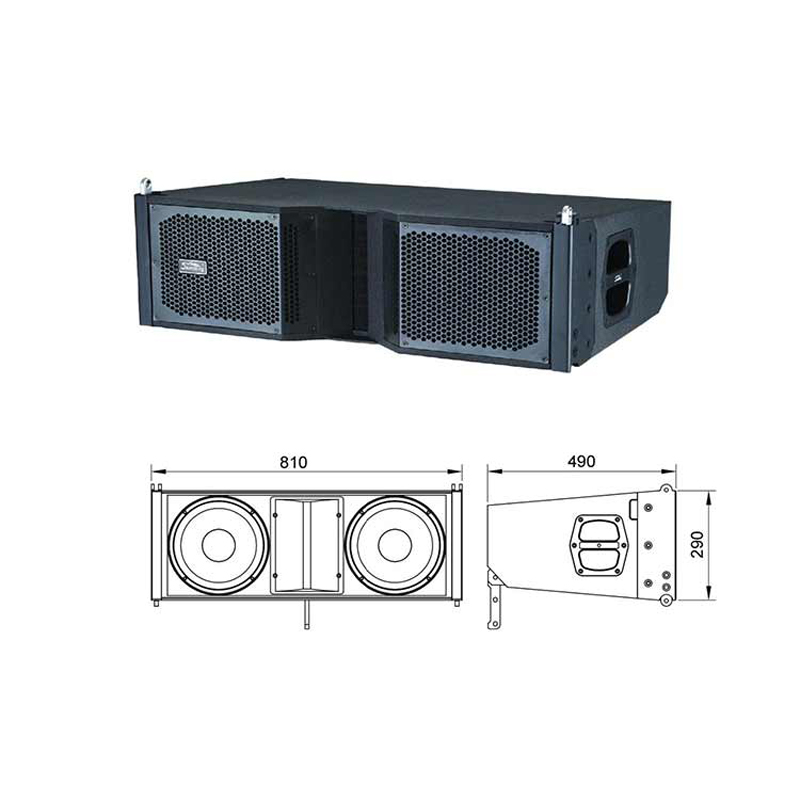

| Elements up to (single array): | 14 | Height in mm: | 290 mm |
| Width in mm: | 810 mm | Depth in mm: | 490 mm |
| Weight in kg: | 34 kg |
