NEODYMIUM HIGH FREQ.

HOME - TRANSDUCER - HIGH FREQ. - NEODYMIUM HIGH FREQ. - FF89N

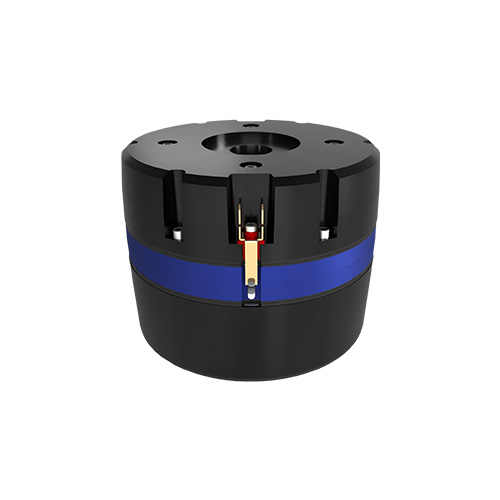

FF89N

FF89N

MIDRANGE


Feature:

  1. Dual 3.5 inch voice coils/annular diaphragms.

  2. Extremely high efficiency.

  3. Exceptionally high power handling of 400W (AES).

  4. Ultra low distortion.

  5. Neodymium magnet structure.

  6. Ultra light weight and small size.

  7. Specially designed for extreme high output applications.

  8. Provides 6dB more sound pressure than a comparable single voice coil driver.

Prev Product

Product Description

FF 89N

Product Parameter

Model: FF89N Type: Midrange
Magnet: Neodymium Overall Diameter in inch: 5.2"
Overall Depth in inch: 3.9" Voice Coil in inch: 3.5"
Impedance in ohm: 2X8 Ohm Power Max.(W): 800 W
Frequency Response Range (-): 300 Hz Frequency Response Range (+): 9.0 KHz
Sensitivity(1W@1m): 118dB on a 40°X20° waveguide Muiltpack weight in kg: 3.5 kg
