NEODYMIUM HIGH FREQ.

HOME - TRANSDUCER - HIGH FREQ. - NEODYMIUM HIGH FREQ. - FE25N

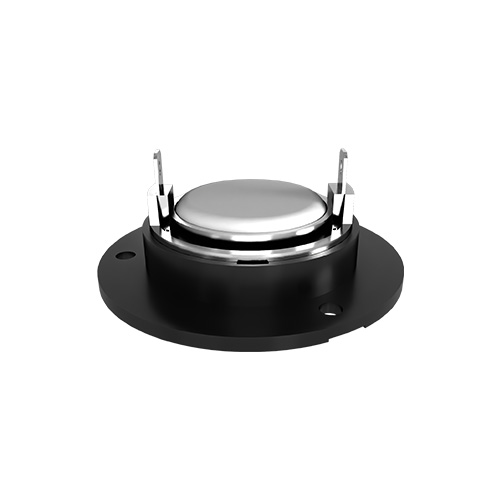

FE25N

FE25N

TWEETER


Feature:

  1. 60 Watt Max Power.

  2. 25.4 mm (1 inch) voice coil.

  3. 1.5 KHz to 20KHz frequency response.

  4. 88 dB 1W@1m sensitivity.

  5. Neodymium magnet structure.

  6. Apply to sound column and hifi system.


Prev Product Next Product

Product Description

FE 25N

Product Parameter

Model: FE25N Type: Tweeter
Magnet: Neodymium Overall Diameter in inch: 2.5"
Overall Depth in inch: 1.0" Voice Coil in inch: 1.0"
Impedance in ohm: 8Ω Power Max.(W): 20 W
Frequency Response Range (-): 1.5 KHz Frequency Response Range (+): 20.0 KHz
Sensitivity(1W@1m): 88 dB Muiltpack weight in kg: 3.03 kg
