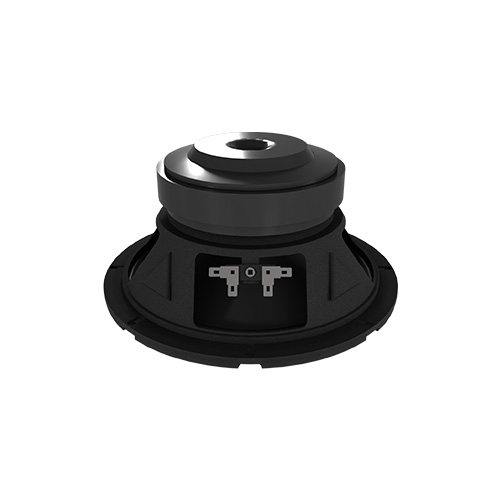

FB0824H

FB0824H

WOOFER


Feature:

  1. 300 Watt Max Power.

  2. 50.8mm (2 inch) voice coil.

  3. 80 Hz to 5KHz frequency response.

  4. 90 dB 1W@1m sensitivity.

  5. Ferrite magnet structure.

  6. Apply to entertainment and portable plastic cabinet system.


Prev Product Next Product

Product Description

FB 0824H

Product Parameter

Model: FB0824H Type: Woofer
Magnet: Ferrite Overall Diameter in inch: 8.1"
Overall Depth in inch: 3.9" Voice Coil in inch: 2.0"
Impedance in ohm: 8Ω Power Max.(W): 300 W
Frequency Response Range (-): 80 Hz Frequency Response Range (+): 5.0 KHz
Sensitivity(1W@1m): 90 dB Muiltpack weight in kg: 13.1 kg
