80 Watt Max Power
25.5mm/1 inch) voice coil
60Hz to 5KHz frequency response
88 dB 1W@lm sensitivity
Ferrite magnet structure
Product Description

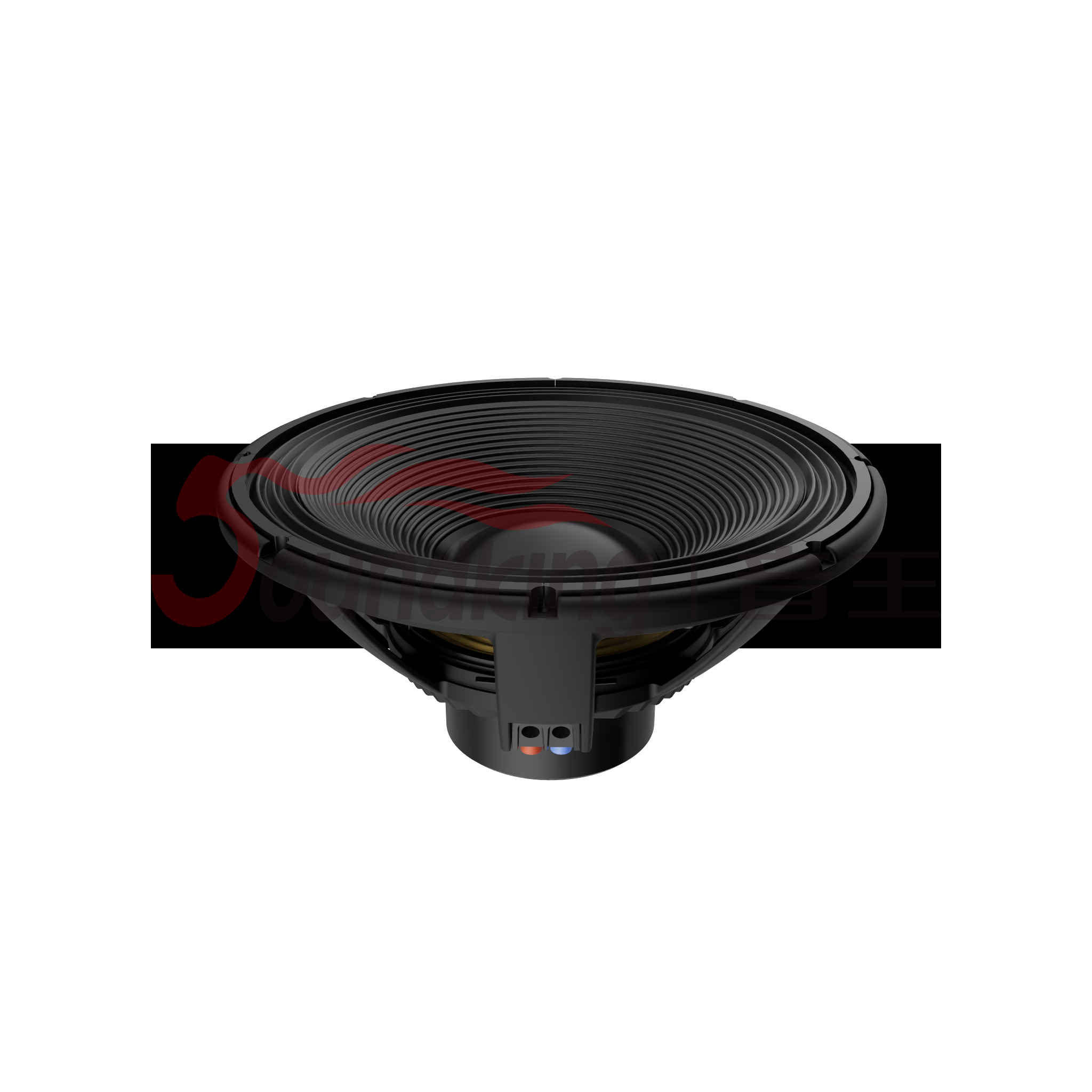

| Model | FA18115HN | |
| Nominal diameter | in. | 18 |
| Power handling capacity | W | 1100 |
| Max power | W | 2200 |
| Nominal impedance | Ohm | 8 |
| Sensitivity(1W/1m) | dB | 96 |

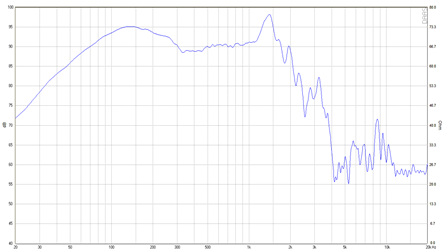

| Frequency range | Hz | 37—500 |
| Voice coil diameter | mm/in | 114.5/4.5 |
| Coil material | Copper | |
| Former material | Fibreglass | |
| Cone material | Paper | |
| Surround material | Polycotton | |
| Gap height | mm/in | 14/0.55 |
| Voice coil winding height | mm/in | 32.8/1.29 |
| Chassis material | Aluminum | |

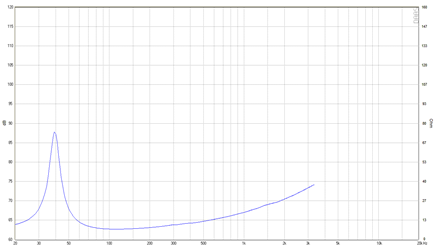

| THIELE ＆ SMALL PARAMETERS | ||
| Fs | Hz | 37 |
| Re | Ohm | 5.45 |
| Qms | 10.80 | |
| Qes | 0.65 | |
| Qts | 0.61 | |
| Vas | L | 139.6 |
| Mms | gr | 266.5 |
| Cms | mm/N | 0.69 |
| BL | Tm | 22.8 |
| Le | mH | 1.21 |
| Xmax | mm | 9.4 |
| η0 | % | 1.05 |
| Sd | cm2 | 1192 |

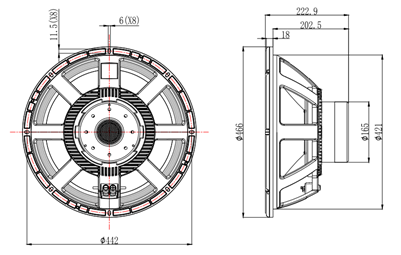

| Overall diameter | mm | 466 |
| Bolt circle diameter | mm | 442 |
| Baffle cut-out diameter | mm | 421 |
| Overall depth | mm | 222.9 |
| Net weight | kg | 11.5 |
| ·EIA power is measured with 6dB crest factor continuous pink noise in 8 hours | ||
| duration. | ||
| ·Max power is defined as 3dB higher than the nominal rating. | ||
| ·Sensitivity is measured as one meter at 2.83V and 8 ohm nominal impedance. | ||
| ·All measurement of the speaker is done after a sufficient high level of 20Hz sine | ||
| wave test. | ||
| ·Xmax=[(Winding Depth-Magnetic Gap Depth)/2] | ||
