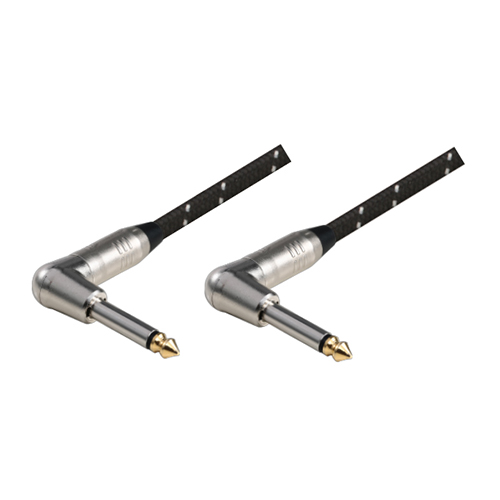

1/4" RIGHT ANGLED MALE TS to 1/4" RIGHT ANGLED MALE TS INSTRUMENT CABLE
Feature:
BJJ297 consists of CJ2M026NB, GA304 and CJ2M026NB.
Crafted from high-quality materials and engineered with precision, built to last and provide superior connectivity.
Product Description
High-quality signal transmission.
Very robust but thick soft PVC jacket.
Dense copper spiral shielding and semiconductor shielding.
Product Parameter
| Model: | BJJ 297 | Type: | Instrument Cable |
| Length in m: | 1-20 m | Connector 1: | 1/4" MALE TRS(CJ2M025NB) |
| Connector 2: | 1/4" RIGHT ANGLED MALE TS(CJ2M026NB) | Total jacket: | PVC+PP YARN Braid, Φ6.5 mm |
| No. of Power Conductors: | 0 | Diameter of Power Cables: | - |
| No. of Inner Conductors: | 1 x 0.23 mm² | AWG: | 23 |
| Copper Strand Per Conductor: | Φ0.12 mm BC x 20 | Conductor Insulation: | HD-PE |
| Shielding1: | Conductive PVC | Shielding2: | Φ0.12 mm Cu x 64 SPIRAL |
| Shielding Factor: | ≥90% | Diameter of Cables: | Φ6.5 mm |
| Capac. Lead to Lead - meter @ 1 kHz: | 46 pF | Capac. Lead to shielding - meter @ 1 kHz: | 96 pF |
| Cond.resistance per 1 km: | ≤91 Ω | Color: | Black(cable), Nickel(shell) |
