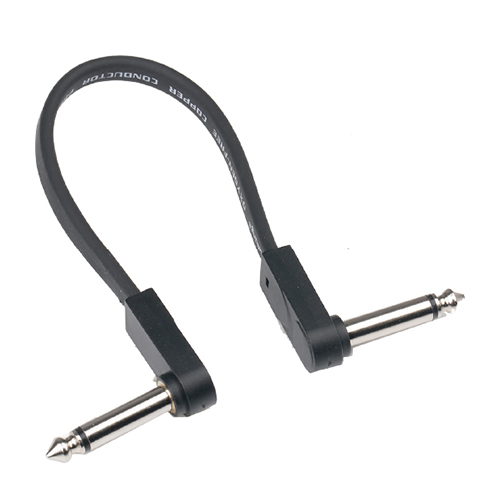

Right Angled 1/4” Male TS to Right Angled 1/4” Male TS FLAT PATCH CABLE
Feature:
It is designed with flat audio cable that facilitates the connection between effects. Relatively short distance wiring can save installation space and manufacturing cost and keep the flexibility in use.
Product Description
Flat design to save space.
Flexible cable with high quality.
Corrosion resistant and durable connector.
Product Parameter
| Model: | BJJ213 | Type: | Flat Patch Cable |
| Length in m: | 3 FT / 10 FT / 20 FT | Connector 1: | Right Angled 1/4” Male TS |
| Connector 2: | Right Angled 1/4” Male TS | Total jacket: | PVC |
| No. of Power Conductors: | 0 | Diameter of Power Cables: | - |
| No. of Inner Conductors: | 1 x 0.23mm² | AWG: | 23 |
| Copper Strand Per Conductor: | Φ0.12 mm BC x 20 | Conductor Insulation: | HD-PE |
| Shielding1: | Φ0.12 mm BC x 32 | Shielding2: | - |
| Shielding Factor: | ≥85% | Diameter of Cables: | - |
| Capac. Lead to Lead - meter @ 1 kHz: | - | Capac. Lead to shielding - meter @ 1 kHz: | - |
| Cond.resistance per 1 km: | - | Color: | Black |
