AM20

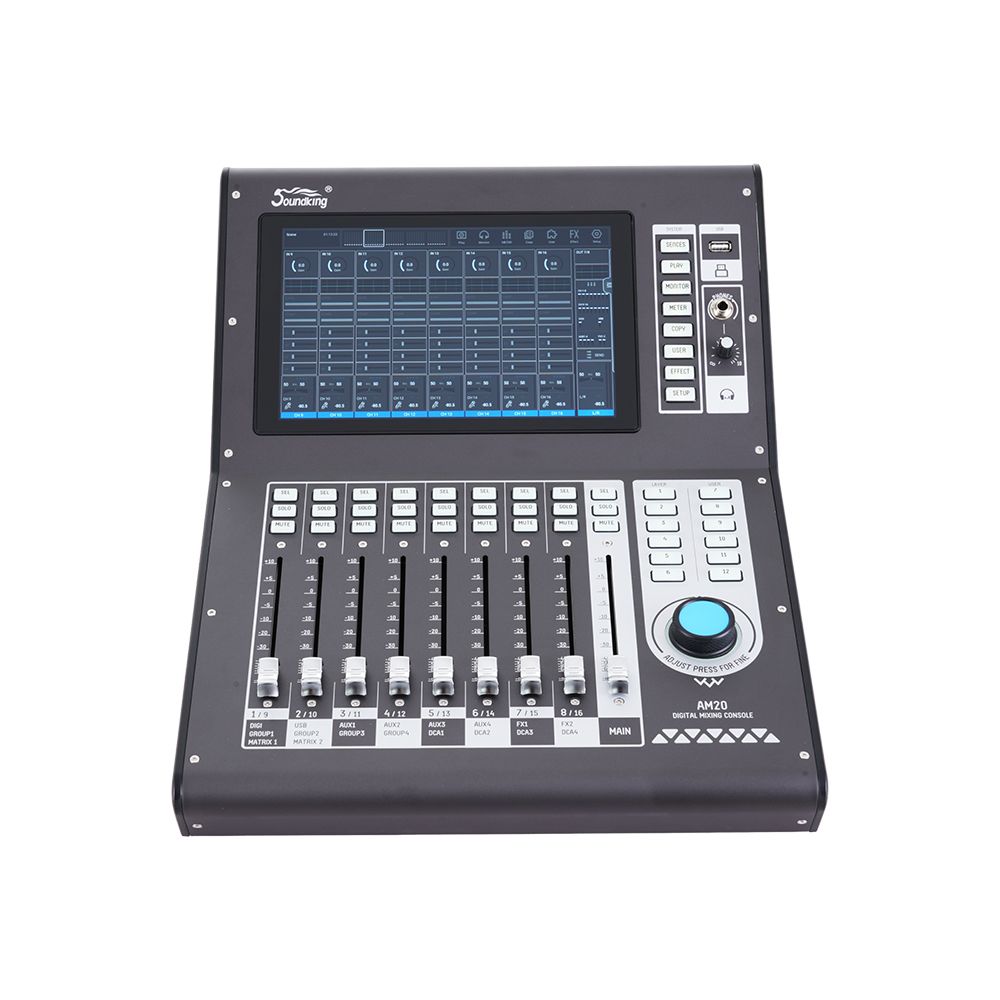

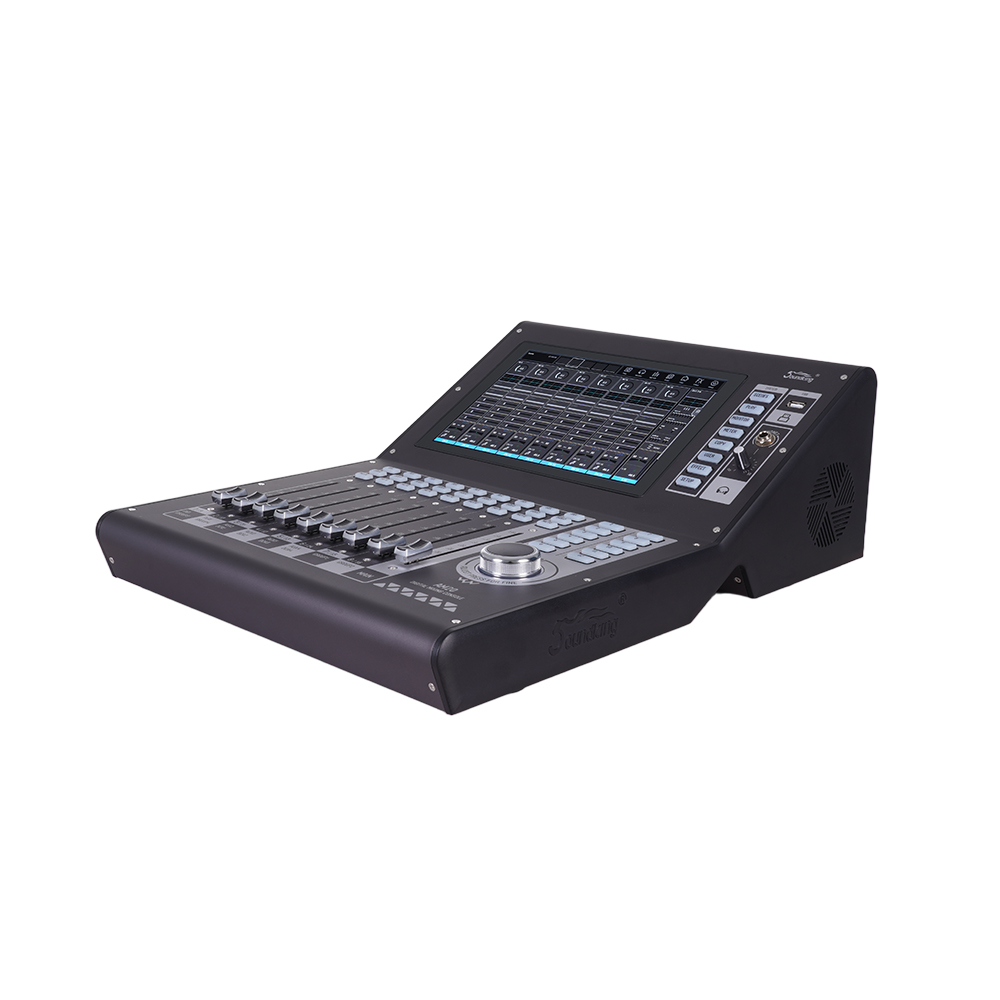

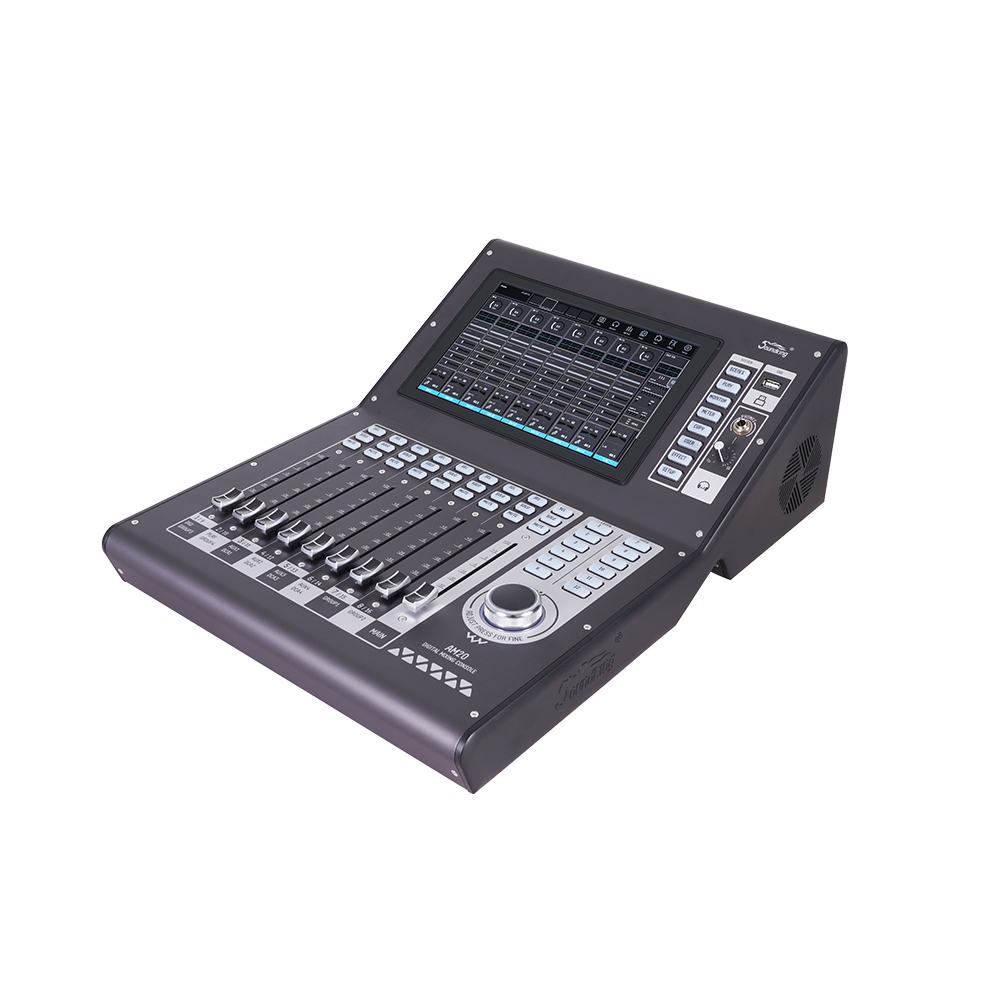

Soundking intelligent digital mixing console AM20

The AM20 is a core product developed by King Audio for the professional audio sector, featuring a hardware architecture that combines the fourth-generation 40-bit SHARC floating-point processor with an ARM Cortex™-A53 quad-core SOC processor. Leveraging the collaborative computing capabilities of these high-performance processors, the device enables high-speed processing and precise control of 20 audio channels, deli.vering stable and reliable high-performance support for various professional audio applications.

At the design level, this product adopts a sleek linear structure design, providing a smooth and deicate handing experience. Equipped with a brand-new Ul design scheme and interactive logic,theinterface layout is neat and clear, with intuitive and easy-to-understand icon identifications. The color matching is scientific and coordinated, ofering excelent visual comfort. It achieves an organic unity between aesthetic appearance and practical operational functionality.

The product is deeply integrated with humanized design concepts,alowing users to quickly grasp the operation process without undergoing long-term system training, significantly lowering the threshold for use. This feature enables it to flexibly adapt to diversified application scenarios - small and medium-sized live sound reinforcement, recording production, live streaming, and government and corporate meetings.

As a multifunctional premium mixing console crafted by Soundking for the professional audio domain, the AM20 excels in core performance. it not only delivers high-quality audio output with low delay and high dyamic range but aiso achieves an efficient balance between ease of operation and functional extensibility, all while maintaining professiona-grade performance, fully satisfying the needs of multi-scenario applications.

Product Features:

1. Equipped with a 10.1-inch high-definition capacitive touch screen with a resolution of 1280x800, it boasts clear display quality and sensitive touch response.

2. Equipped with 16 MiC mono inputs, as well as independent USB and DlGlTAL input channels, it meets the needs of various audio source access.

3. The input channels support the formation of stereo channels by linking adjacent channels, enabling both horizontal and vertical linking operations.

4. Equipped with 4 AUX buses, 4 GROUP buses, MASTER L\R buses, while integrating the SOLo Phones monitoring module, the bus config is rich.

5. It provides 8 freely connectable balanced output XLR connectors, which can be adapted to various professiona output devices.

6. Integrated with independent AES input and output interfaces and RS485 command interface, it boasts excellent expansion and connectivity capabilities.

7. Equipped with an expansion slot, it supports bluetooth/sterec sound card expansion cards as optional accessories, allowing for functional upgrades according to needs.

8. Supports 4 mute groups and 4 DCA groups, enabling precise control over audio signals.

9. 5 custom layers and 12 custom buttons, offering outstanding flexibility -supporting customization of layers according to different application scenarios, and custom buttons can be mapped to various common operations (such as channel mute,scene recall, etc.)

10. Equipped with 9 high-quality motorised faders with a 100mm throw, it features precise and stable fader control performance and excellent operating feel.

11. The display screen adopts a pure flat installation design, which can effectively prevent dust from entering, facilitating daily cleaning and maintenance, and extending the service life of the device.

12. Supports remote control in HTML5 compatible browser mode, without the need to download any application, making operation convenient and hassle-free.

13. Realize dual-machine hot backup functionality through wired or wireless means to ensure the practical use of important locations.

14. Equipped with a standard 24V power adapter and featuring an anti-loosening desian.it compret ensures electrical safety.
