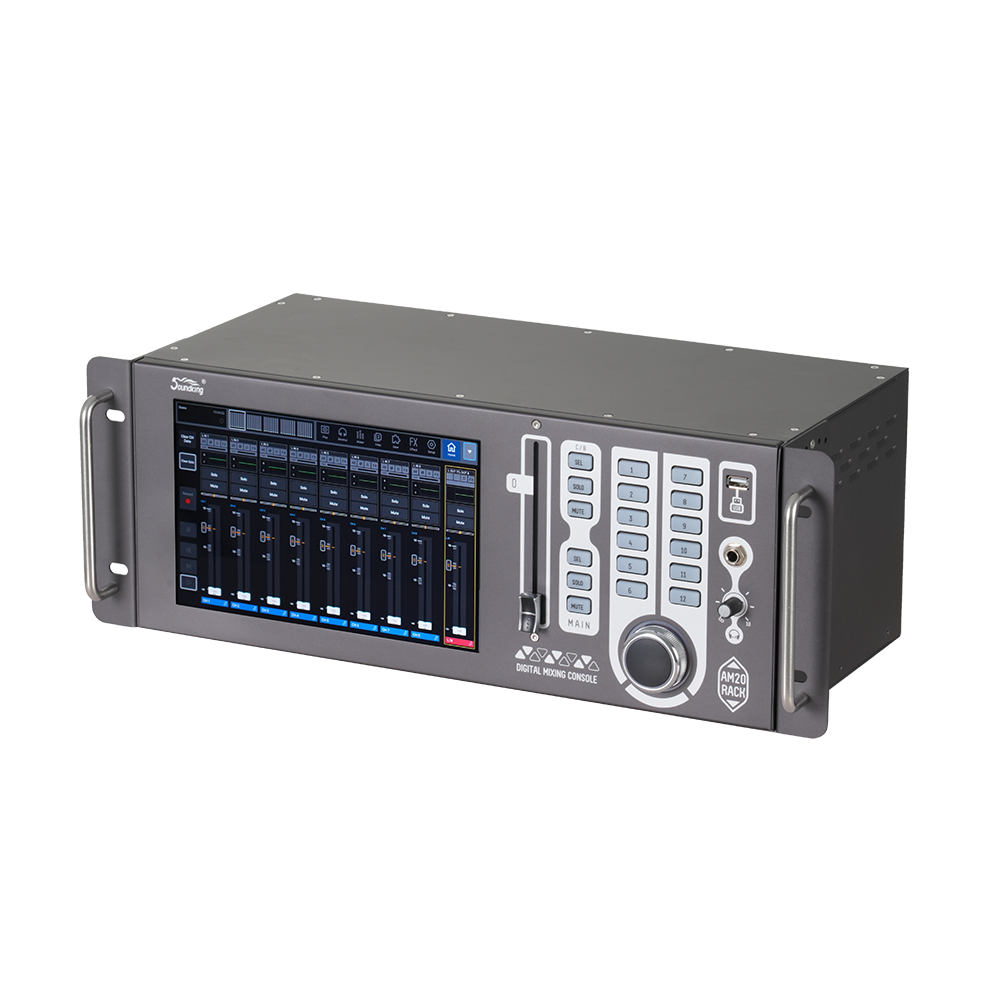

AM20 RACK

AM20 RACK is a multifunctional rack-mounted mixing console crafted by Soundking Group for the professional audio sector. It employs a combination of the fourth-generation 40-bit SHARC floating-point processor and the ARM Cortex™-A53 quad-core SOC processor. Leveraging the collaborative computing capabilities of high-performance processors, it achieves high-speed processing and precise control of 20 audio signals. Featuring low delay and high dynamic range, it delivers high-quality sound output. It strikes an efficient balance between professional-grade performance, ease of operation, and functional scalability, providing stable and reliable support for professional audio applications.

The AM20 RACK features a sleek linear structural design, offering a smooth and delicate control experience. Equipped with a new UI design scheme and interactive logic, its interface layout is neat and clear, with intuitive and easy-to-understand icon design. The color matching is scientific and harmonious, providing excellent visual comfort. It achieves an organic unity between aesthetic appearance and practical operational functionality. Deeply integrated with humanized design concepts, users can quickly grasp the operation process without undergoing long-term system training, significantly lowering the barrier to use.

Whether it's sound reinforcement in venues, recording works in small studios, or audio support in fixed locations such as conference centers and theaters, the AM20 RACK consistently delivers excellent performance, making it the core audio processing device in various scenarios.

Prev Product

Product Description

Product Features:

Equipped with a 10.1-inch high-definition capacitive touch screen with a resolution of 1280x800.
Equipped with one 100mm high-quality motorised fader, it features precise and stable fader control performance as well as excellent operating feel.
Equipped with a massive 32GB internal memory, it supports playback of a vast collection of lossless music.
Equipped with 16 MIC mono inputs, as well as independent USB and Digital input channels.
Input and output ports can be individually connected as desired.
The input channels support the formation of stereo channels by linking adjacent channels, enabling both horizontal and vertical linking operations.
4 AUX buses (AUX1/2 are defaulted as FX buses), 4 GROUPs, MASTER L/R bus, with SOLO Phones monitoring, offering a rich bus configuration.

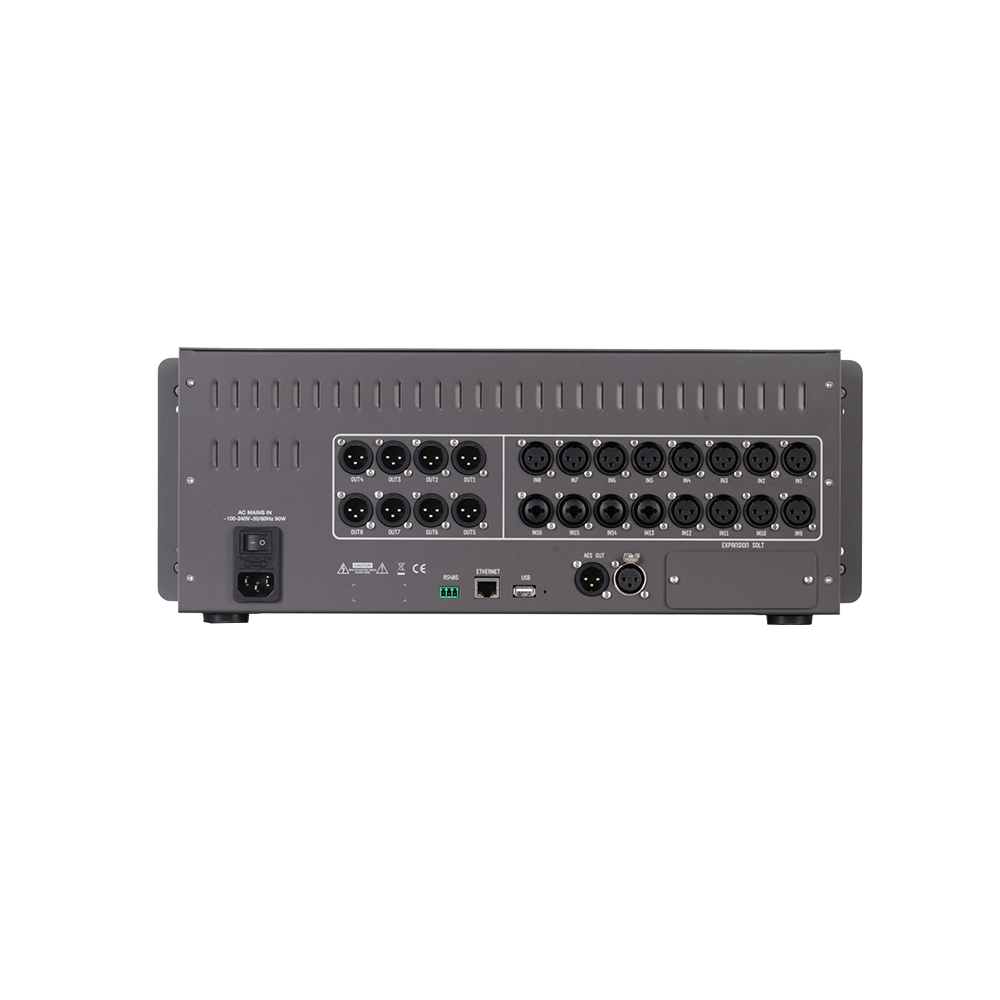

It provides 8 freely connectable balanced output XLR interfaces, compatible with various professional output devices.
Integrated with independent AES/EBU input and output interfaces, as well as RS485 control interface.
4 mute groups and 4 DCA groups functions.
EQ and GEQ are equipped with RTA and RTA freeze functions.
EQ, noise gate, limiter, with library function, and quick access to commonly used parameters.
5 customizable layers, supporting arbitrary sorting and arbitrary channel locking functions, offering outstanding flexibility.
The 12 customizable physical buttons can be expanded to 24, supporting various operations such as muting mapped channels and invoking scenes.
Supports two protection modes: screen lock and device lock.
Massive scene memory, supporting manual sorting function for scenes.
Multi-language fast dissection, with customizable language versions for Product Specifications Input channel 16-channel microphone input (including 4 Combo XLR + DIGITAL + PLAY), featuring a multi-channel design to meet diverse input requirements Input channel function Phantom power supply FX various countries.
Supports adjustment of display brightness and physical button brightness.
The output circuit is equipped with a relay to eliminate the sound of switching impact.
Dual-machine direct connection, achieving dual-machine hot backup function through network cables, ensuring use in important places.
It supports remote control in HTML5 compatible browser mode, without the need to download any application, making operation convenient and hassle-free.
It is equipped with an expansion slot, and expansion cards are available as optional accessories. Depending on your needs,you can choose to install a multi-track sound card or an AES67 card.
