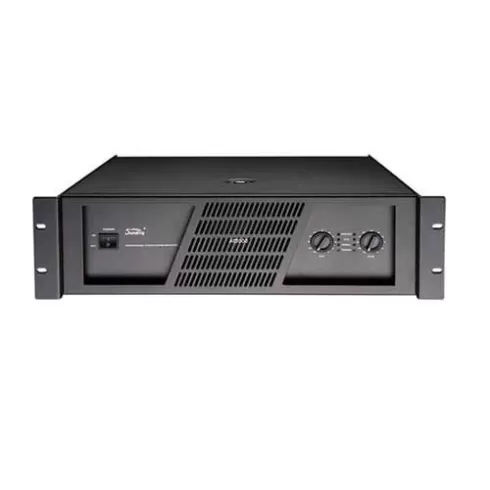

ANALOGUE AMPLIFIER
AE3000 is a series of cost-effective power amplifier products newly developed by King of Sound, with simple appearance, compactness and firmness, excellent material selection, perfect sound quality and outstanding performance. Unique circuit design and powerful load carrying capacity fully meet the system configuration needs; professional and safe protection circuits: including DC protection, input overload protection, output overload protection, output short-circuit protection, radiator and transformer over-temperature protection, power supply input over-current protection, power-on soft-start protection, and wave cancellation distortion limitation, which highly protects the safety and reliability of the power amplifier.
Product size: 483*415*133.3mm
Net weight: 29kg
Packing size: 575*560*200mm
Gross weight: 32kg
Packing Quantity: 1
Power Requirements: 110-120 or 220-240AC 50/60Hz
Power:
4Ω stereo power: 2x1500W
8Ω stereo power: 2x1050W
8Ω bridge power: 3000W
Application Scenario: Suitable for entertainment venues, gymnasiums, mobile performances, theaters and cinema film, small line array, concert halls, bars, multi-purpose halls, performance halls and other occasions with high sound quality requirements.
Product Description
1. standard 3U mounting height, simple, compact and solid appearance design;
2. adopting H class middle circuit, low temperature, high efficiency and continuous stability;
3. Professional protection circuit design;
4. the use of double-sided PCB and SMD process to significantly improve product stability;
5. intelligent fan temperature control cooling system;
6. stereo, parallel, bridge 3 working modes to choose ;
7. Lightweight design, easy to install and transport;
Product Parameter
Model: | AE3000 | Type: | |
Amp Class: | RMS Power(W): | 3000w | |
Transmission Power(W): | Frequency Response Range (-): | 20Hz | |
Frequency Response Range (+): | 20kHz | Input Connector: | |
Output Connector: | Height in mm: | 133.3 | |
Width in mm: | 483 | Depth in mm: | 380 |
Weight in kg: | 31kg |
