Feb. 12, 2026

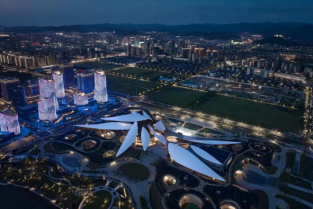

Located in the "Two Mountains" Future Science and Technology City Culture and Art Center in Anji, Huzhou City, Zhejiang Province, it is designed by the international architectural master Ma Yansong. With a total construction area of approximately 118,000 square meters, it includes six major functional areas such as a comprehensive grand theater and a multi-functional theater. It is a major project of "Thousands of Trillion" in Zhejiang Province and a spiritual and cultural landmark that aligns with the "Two Mountains" concept. Soundking Group's two internationally renowned brands, Germany's KLING & FREITAG (K&F) audio system and the UK's CADAC (mixing console), have crafted a full set of immersive audio solutions with ingenuity, using innovative acoustic technology to endow the art center with an excellent audio-visual experience.
1. Comprehensive Grand Theatre: Utilizing the systematic audio solution from Germany's K&F, it creates an immersive sound field

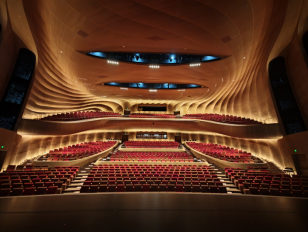

In the comprehensive theater with a seating capacity of 1,300, a complete set of German K&F immersive audio system has been adopted. The system is centered around the K&F SCALA immersive audio processor, equipped with nearly a hundred professional loudspeakers such as K&F main amplifiers, subwoofers, fillers, and monitors, as well as network digital amplifiers, jointly constructing a high-performance integrated audio solution
As the core control device of the immersive sound system on site, the Grand Theatre adopts the K&F SCALA immersive sound processor. Based on the VBAP immersive sound algorithm, this processor boasts a signal processing capability of 64 channels, enabling precise parameter adjustment for each speaker group and ensuring signal synchronization and tonal consistency across different positions of the speaker drivers. This immersive sound system breaks the limitations of traditional stereo sound reinforcement in a flat sound field, creating an enveloping spatial listening environment through multi-dimensional sound field layout and precise positioning of sound image technology. This allows audiences to clearly perceive the spatial orientation, distance, and trajectory of audio signals when enjoying performances such as dramas and concerts, further enhancing the emotional impact of the performance content and the audience's immersion.

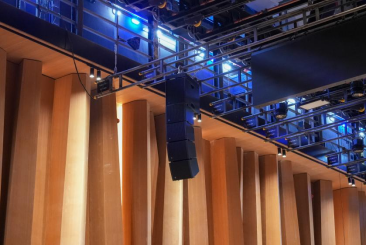

The comprehensive grand theater has adopted speakers from the K&F brand throughout. Among them, the main sound reinforcement system utilizes the K&F SPECTRA 212XW variable line array speaker, which boasts high performance in terms of dispersion angle despite its compact size. Its Vari Q stand can be rotated 90 degrees in just a few steps, allowing it to function as a point-source, as well as being arranged in a clustered manner for horizontal or vertical linear sound sources. Additionally, in the processing of positioning of sound image, it can precisely achieve "audio-visual consistency," ensuring spatial synchronization between the audience's auditory perception and the visual presentation on stage.
The side surround of the theater adopts K&F PIA M passive intelligent array loudspeakers, with a projection distance of up to 25 meters, a Max SPL of 132dB, and a coverage angle of 100°x25°. It features a three-way crossover column speaker with full-range directional control, allowing for free switching between bass reflex mode and cardioid mode. The wide horizontal coverage angle provides excellent sound field coverage.
The top sky channel and stage extension speakers are GRAVIS 12+N professional performance full-range speakers. The left and right sides of the stage entrance are equipped with NOMOS XLS professional performance subwoofer speakers, which are mainly responsible for supplementing low-frequency energy and meeting the reproduction needs of large dynamic audio signals.
In addition, the venue is equipped with K&F SONA 5 high-precision multi-purpose loudspeakers and K&F GRAVIS 12+W professional performance full-range loudspeakers, which are responsible for stage lip sound reinforcement, orchestra pit sound reinforcement, ceiling effect sound creation, and stage monitoring, respectively. These loudspeakers form a full-space, multi-dimensional sound field coverage network, ensuring consistency and stability of listening parameters in all areas of the theater.
The on-site amplifier utilizes the D series digital network amplifier from K&F, which is combined with the LAKE processor and features K&F's proprietary loudspeaker preset module operation, enabling the K&F loudspeaker system to achieve excellent performance. It also includes multiple inputs such as DANTE, digital AES3, and analog, which can be used as redundant backups.
At the same time, the Soundking intelligent power distribution system has been introduced, achieving safe management and integrated intelligent control of power supply, and featuring an efficient emergency protection mechanism. Additionally, by adopting a centralized cabinet layout scheme, the overall layout is made more compact and reasonable.
II. Multi-functional Theater: Two International Brands Join Hands to Create High-quality Audio Sound Effects
Similar to the Grand Theatre, the Multi-functional Theatre also upholds the high-quality audio standards of K&F. Its configuration echoes that of the Grand Theatre, featuring SEQUENZA 5W line array full-range loudspeakers and SEQUENZA 5B line array low-frequency loudspeakers. Additionally, it is paired with ground-mounted NOMOS XLS professional performance subwoofer as the main system, GRAVIS 8W professional performance full-range loudspeakers for near-field sound reinforcement, and GRAVIS 12+W professional performance full-range loudspeakers for stage feedback.

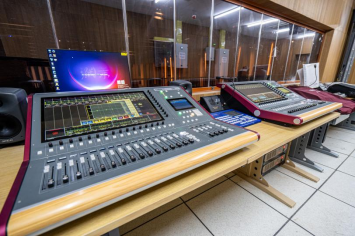

The on-site sound mixing control system adopts a dual-set configuration, utilizing the CDC 6 digital mixing console from the renowned British brand CADAC, known as the "Rolls-Royce of mixing consoles". This mixing console, with its high-quality microphone preamps, advanced DSP and FPGA processing technology, and excellent subwoofer delay performance, has become the preferred choice for professional users who seek superior sound quality and innovative applications.
III. Technology inherits nature, and sound empowers art
The completion of the Culture and Art Center of Anji Liangshan Future Technology City is not only a poetic dialogue between architecture and nature, but also a deep integration of technology and art. Soundking Group, leveraging its two international brands, K&F from Germany and CADAC from the UK, has successfully introduced the world's leading immersive audio system into this new cultural and tourism landmark. Through scientific planning and professional implementation, every sound detail perfectly interprets the ecological and humanistic spirit embodied in the "Liangshan" concept.
In the future, Soundking Group will continue to be customer-centric and innovation-driven, providing reliable and excellent system audio solutions for more cultural projects and urban art spaces.
