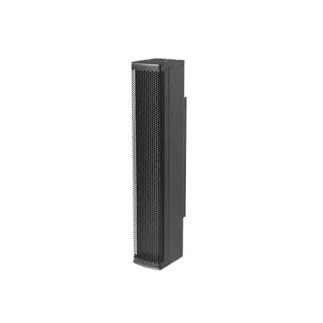

LA804A - SURROUND-SCREEN COAXIAL SPEAKER

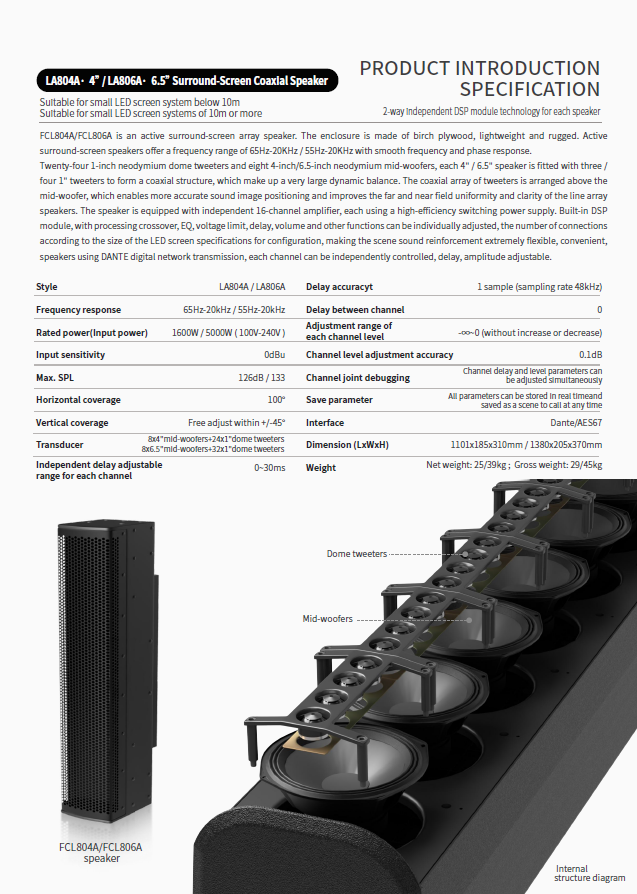

LA804A is an active surround-screen array speaker. The enclosure is made of birch plywood, lightweight and rugged. Active surround-screen speakers offer a frequency range of 65Hz-20KHz with smooth frequency and phase response.
Twenty-four 1-inch neodymium dome tweeters and eight 4-inch neodymium mid-woofers, each 4" speaker is fitted with three 1" tweeters to form a coaxial structure, which make up a very large dynamic balance. The coaxial array of tweeters is arranged above the mid-woofer, which enables more accurate sound image positioning and improves the far and near field uniformity and clarity of the line array speakers. The speaker is equipped with independent 16-channel amplifier, each using a high-efficiency switching power supply. Built-in DSP module, with processing crossover, EQ, voltage limit, delay, volume and other functions can be individually adjusted, the number of connections according to the size of the LED screen specifications for configuration, making the scene sound reinforcement extremely flexible, convenient.
The speakers using DANTE digital network transmission, each channel can be independently controlled, delay, amplitude adjustable.
