The Central Opera House


The Central Opera House


"The Central Opera House is the most powerful, talented and influential national theater in the Asia-Pacific region, representing the national level of opera art, the highest temple of performing arts in China, and the last national theater project in recent years.



The Central Opera House


The newly built Central Opera House Theater is located at 115 Dongzhong Street, Dongcheng District, Beijing, adjacent to the East Second Ring Road to the west and the Ministry of Culture to the south. The theater looks down like a hovering phoenix, a messenger of happiness on earth, symbolizing good fortune, harmony, immortality and rebirth. The project covers an area of 13386 m², with a total construction area of 40902 m², 4 floors underground and 8 floors above ground. The core functions are mainly large-scale opera, dance drama and ballet performances to meet the needs of domestic and foreign cultural and art groups for performance and exchange. From "The Lady of the Camellias" and "Turandot" to "The White Maiden" and "The Red Woman", many domestic and foreign classic operas will be re-enacted by contemporary artists on this stage, where the audience will feel the charm of the art of opera and witness the style of domestic and foreign artists.


The Central Opera House

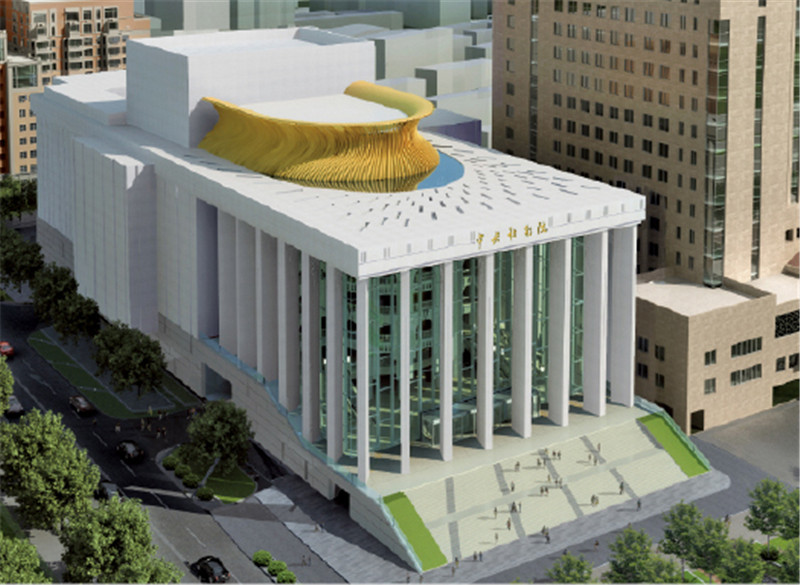

Exterior view of the theater of the Central Opera House

 The Central Opera House

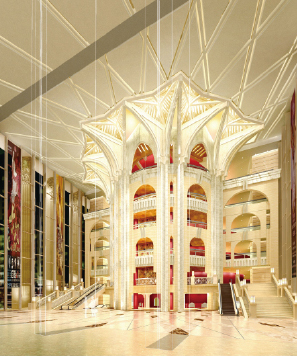

Lobby

 The Central Opera House

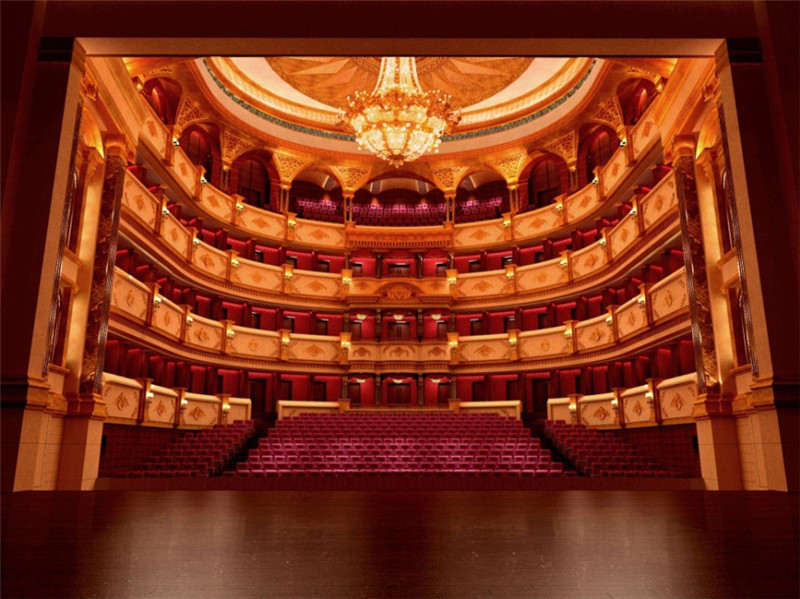

Interior of the theater

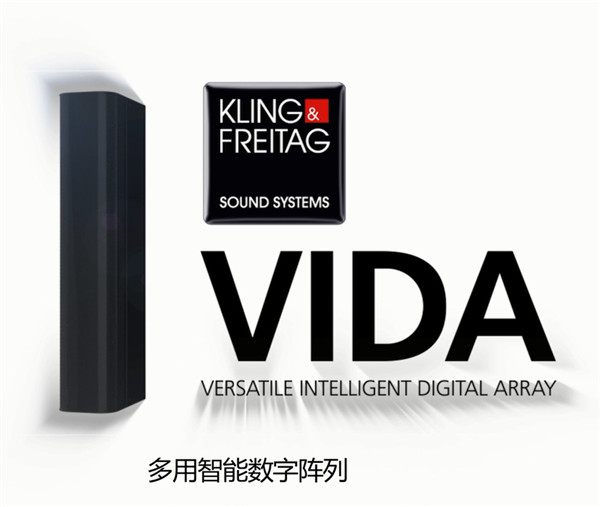

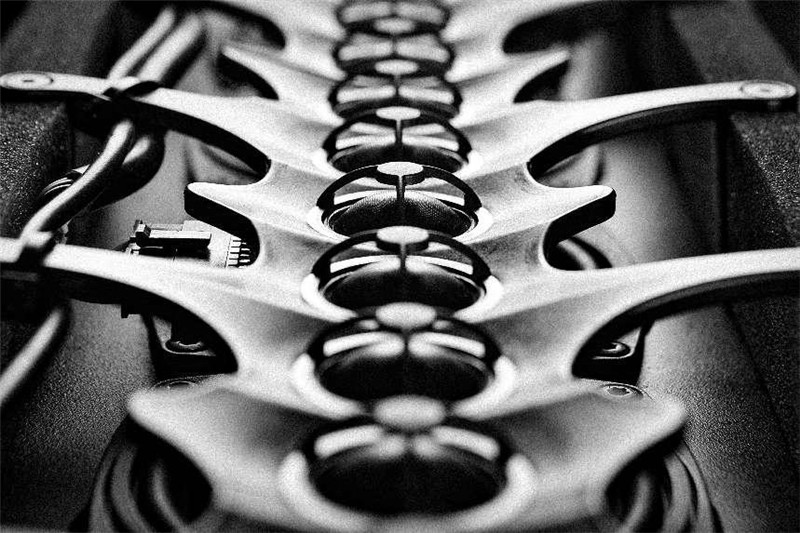

The theater up to 5 levels of audience seats to the design of the sound reinforcement system poses a huge challenge, in order to bring the audiophile sound quality enjoyment to the audience in every corner of the theater, and to avoid the complex wall structure and audience parapet wall to the sound caused by multiple reflections, the Central Opera House finally after a rigorous comparison of the selection of the German Kling & Freitag (K & F) speaker system, and to lead the innovation of speaker technology VIDA series of multi-purpose intelligent digital array speakers as the core configuration of the sound reinforcement system. Opera performance on the sound quality requirements are almost demanding, and in the same type of product is difficult to find the VIDA series can provide such audiophile quality speakers, which is the biggest reason why users finally choose VIDA. VIDA is a full-range compatible, modular 3-way array speaker system with 48-ch DSP and 48 Class-D amplifiers (one per module). Each module's speaker system is coaxially placed with a frequency response (-10 dB) of 65 Hz - 22 kHz.



The Central Opera House

The Central Opera House

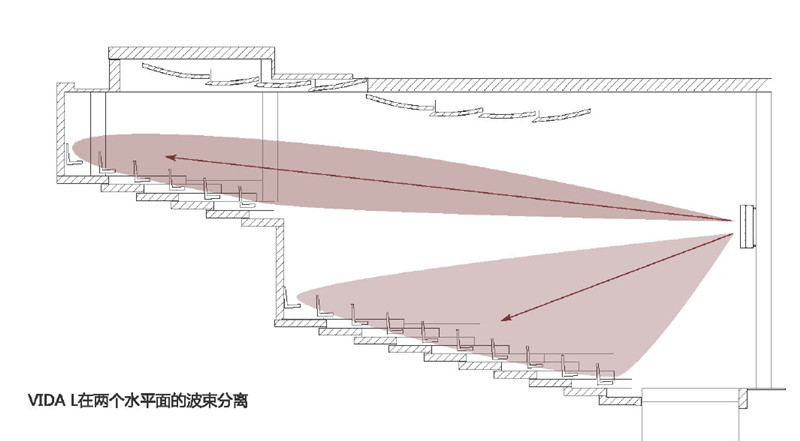

In addition, the VIDA system's unified beam control and beam separation characteristics in this project is very useful, can perfectly project the sound to the audience area without interference from the building structure.


The Central Opera House


At the same time the Central Opera House theater decoration using classical European design, the entire interior decoration is full of classical beauty and luxury, VIDA series compact and slim shape can completely not destroy the visual enjoyment of the theater.


In the stage on the left and right sides of each concealed installation of 4 VIDA L speakers, while in the central channel also hanging concealed installation of 2 VIDA L. 4 NOMOS XLT as a subwoofer also concealed installation on both sides of the stage, while the theater also installed a number of PASSIO and SONA 6 as a complementary speaker, GRAVIS 15 as a monitor speaker. Speakers other than the VIDA series are driven by Series D network digital amplifiers, which are ideal for fixed installation projects.


 The Central Opera House

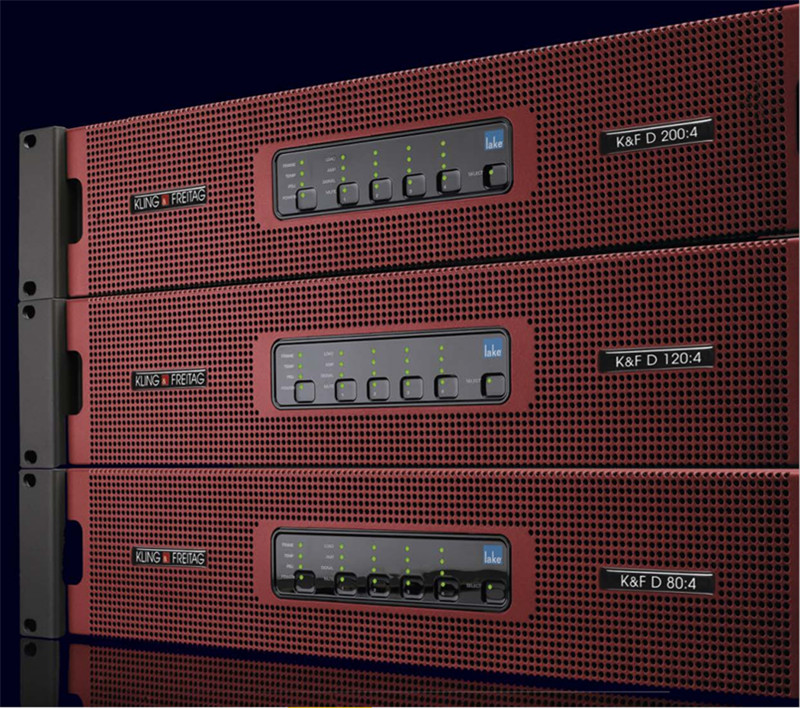

D series digital network amplifier
