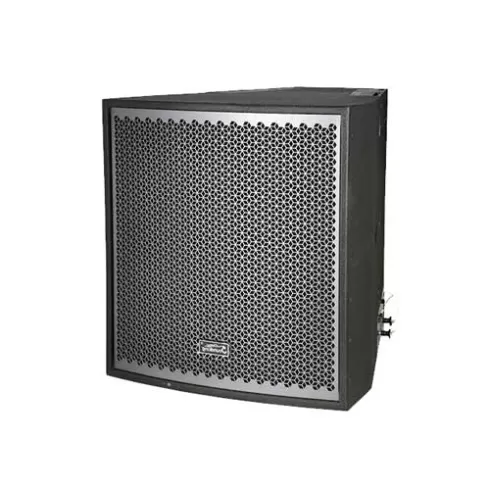

TS-66H

MIDDLE-FIELD SPEAKER


Feature:

Strong directivity horn design, high sensitivity, high sound pressure level, long projection distance.

High-performance unit can better extend the frequency response characteristics.

NdFeB magnetic circuit tweeter.

Coaxial structure design, completely eliminate the sound interference phenomenon between high and low bass, compact cabinet appearance.

Symmetrical ladder cabinet external design, easy to build multiple speakers environment.

Constant directional horn design to ensure the consistency of frequency response characteristics in the entire coverage area.


Low-Frequency Driver: 1x 15" low-frequency paper cone driver with a 100mm voice coil, 700W, 8Ω

High-Frequency Driver: 1x 75mm high-frequency compression driver (1.4" throat) with a 75mm voice coil, 110W, 16Ω

Product Dimensions (WxHxD): 610x660x670mm

Net Weight: 61kg

Packaging Dimensions: 820x835x765mm

Gross Weight: 80kg

Quantity per Packaging: 1


Product Description

TS-66H is coaxially composed of an 15" low-frequency paper cone driver and a 3" high-frequency compression driver. It features a high-frequency horn with a coverage angle of 60° (horizontal) x 60° (vertical). To fully utilize the speaker's performance, the internal speaker crossover is kept simple, and external digital sound processing is used for optimized crossover frequency control. The horn is made of fiberglass, providing delicate sound reproduction and excellent sound imaging.

The enclosure is constructed using 18mm Baltic birch plywood layers in a grooved structure, offering high rigidity and minimal sound coloration.

The speaker is designed to deliver clear and balanced sound reinforcement in a compact and versatile form factor, making it suitable for a variety of installation scenarios.
