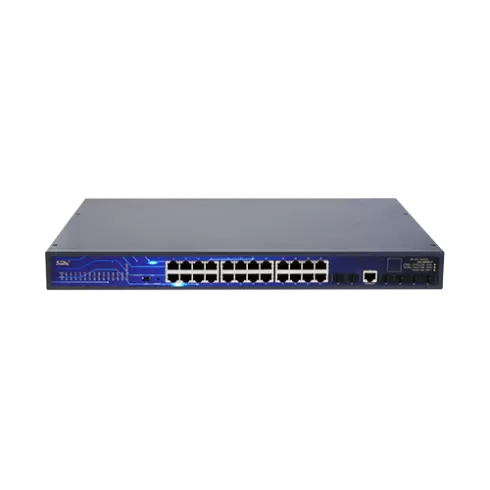

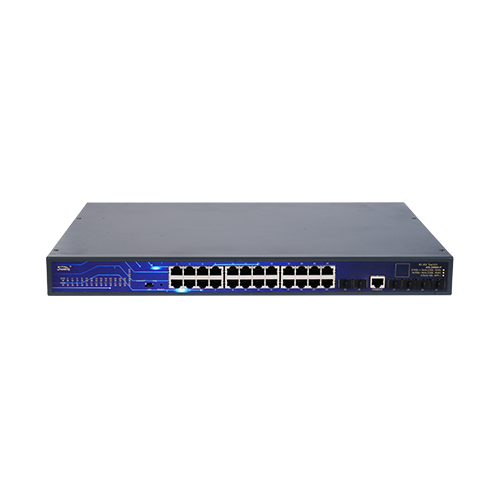

AIS-24N6G-P

The L3 managed PoE++ switch features 24 100M/1000M/2.5Gbps Ethernet electrical interfaces, 6 10Gbps SFP+ optical interfaces, and a Console port. It supports IEEE802.3af/at/bt standards and can serve as a Power over Ethernet (PoE) device. Ports 1-8 support PoE++ power supply, while ports 9-24 support PoE+ power supply. The PoE ports have a maximum output power of 90W, with a total maximum output power of 750W, and the power supply has a maximum total power of 800W. It can automatically detect and recognize compliant powered devices and supply power to them via network cables. Utilizing store-and-forward technology combined with dynamic memory allocation, it ensures efficient bandwidth allocation to each port. Supporting layer 3 routing functionality, it incorporates three core technologies: AI intelligent module, AV multi-protocol compatibility, and high-power PoE adaptation, addressing the pain points of ordinary switches such as "protocol incompatibility, complex operation and maintenance, and insufficient power supply."

 AI-driven intelligent operation and maintenance system

The unified server platform enables intelligent operation and maintenance, supports automatic diagnosis of port status, automatic blocking and recovery of network loops/IP conflicts, and significantly reduces dependence on professional personnel.

Features

1. Support speed limiting for outgoing/incoming ports.

   2. Supports port 802.3X flow control.

   3. Support back pressure flow control in half-duplex mode.

   4. Support storm suppression for unknown unicast, multicast, groupcast, and broadcast types, as well as storm suppression based on bandwidth adjustment and storm filtering.

   5. Supports port aggregation, static aggregation, and dynamic aggregation (LACP).

   6. Support source MAC load, destination MAC load, source and destination MAC load, and IP address load.

   7. Support user level management and password protection.

   8. Support unified network management and cloud management for server platforms.

   9. Support port mirroring for inbound/outbound port messages and mirroring for multiple-to-one destination ports.

  10. Provides an open API that is compatible with a wide range of mainstream AV central control hardware and software, allowing seamless integration into customers' existing systems without the need to replace existing equipment.

  11. Supports protocols such as Dante, NDI, IPMX, SDVoE, JPEG, AES67, and SoundKing SoundNet, and is compatible with various professional devices.

  12. With deep cooperation with AV manufacturers, IGMP, VLAN, and QoS configurations are automatically completed during device access, enabling "plug and play" of AV devices without requiring professional skills.

  13. Supports IEEE802.3af/at/bt three-standard adaptability, capable of driving high-power AV equipment such as laser projection systems and outdoor high-definition dome cameras.

  14. Support VLAN layer 3 routing function to adapt to complex networking.

  15. It can be configured with IPv6 and supports IPv6-Ping and IPv6-Telnet.
