ADAPTIVE SOUND REINFORCEMENT SYSTEM
The system consists of an intelligent sound pickup machine (multi-directional array microphone), an array pickup microphone sub-machine, a speaker, and a panel-type control processor.Teachers can walk freely in the classroom without the need for a microphone to achieve clear and natural voice amplification.
Depending on the size of the classroom, 2-4 speakers can be installed to achieve good sound reinforcement effect.
The system can be controlled manually using the control panel, which also has USB audio recording and playback functions. Teachers can play related recordings during class or record the class content for students to review at home or for the teacher to check the quality of their teaching.
The system has clear voice, convenient operation, and excellent sound amplification. It is a special green and healthy project created by the SoundKing to protect the teacher's throat.
Application: Classroom Specialized
Product Description

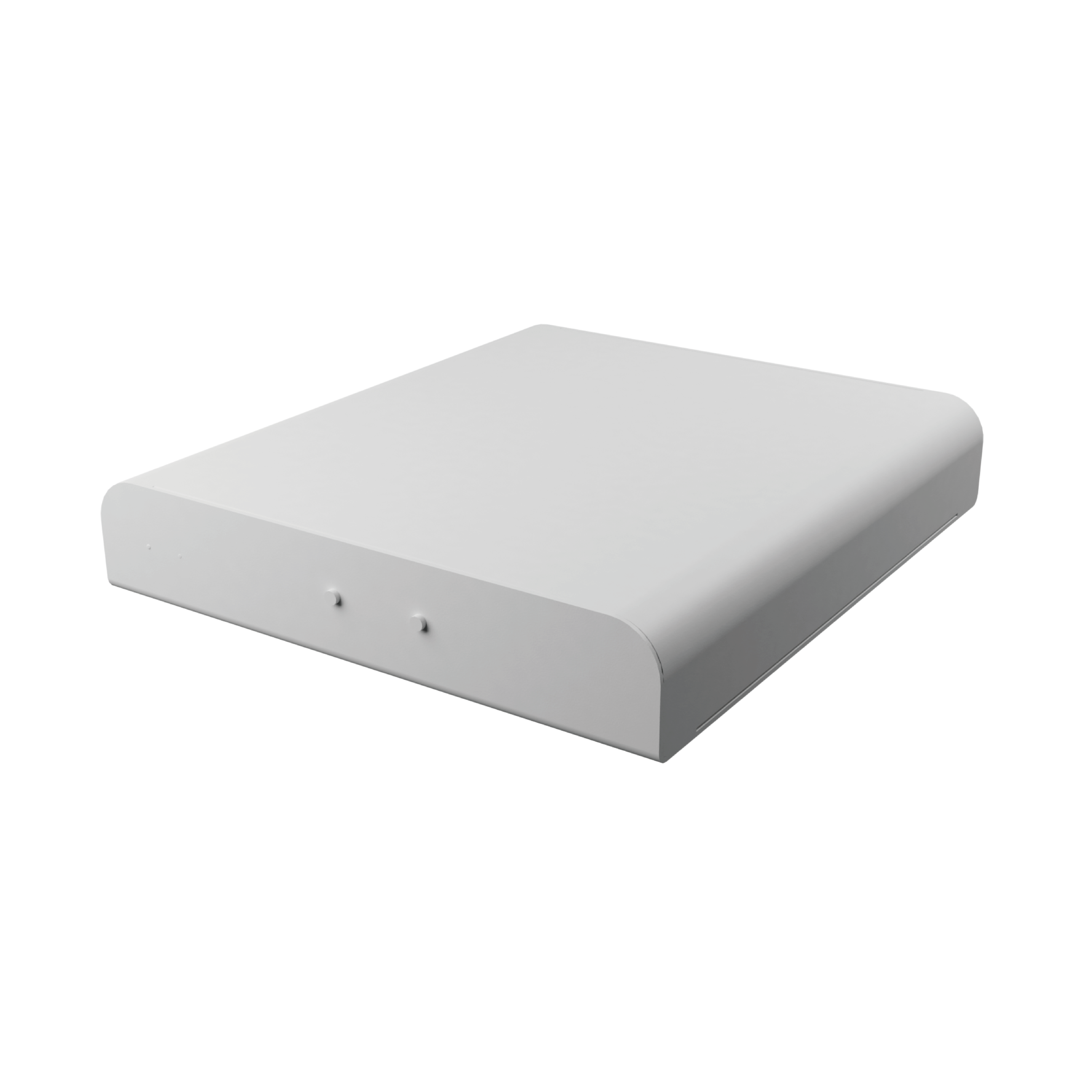

MA5B adaptive integrated machine is an intelligent device that integrates a mixer, digital amplifier, audio processor, switch, and feedback suppressor. It meets different needs in smart classrooms, various meetings, and other places.
Feature：
1.MA5B is an intelligent device that integrates a mixer, digital amplifier, audio processor, switch, and feedback suppressor;
2.It has a built-in processor that can equalize, filter, and suppress microphone signals, with algorithms such as AFC, AEC, and ANC to process the signal;
3.It has a built-in 2 * 150W digital amplifier, which can be connected to 4-8 teaching speakers through an analog signal input;
4.The host adopts wall-mounted installation, which is faster and easier to install and debug.

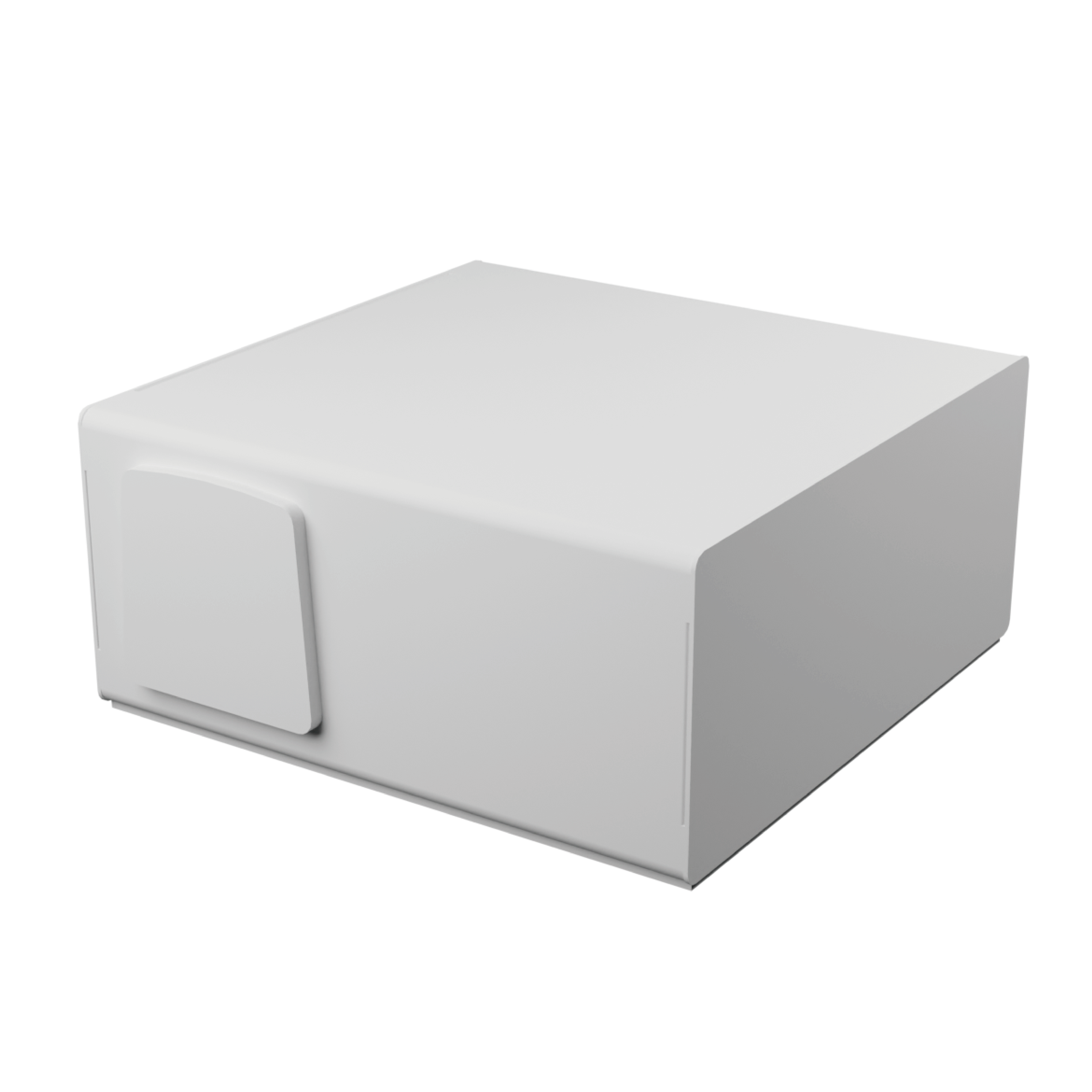

MB01 intelligent housekeeper is a multifunctional product that integrates distributed housekeeper, wireless charging, ultraviolet disinfection, fully enclosed storage, and intelligent management.
Feature:
1. It can be controlled and used in various forms such as touch buttons, IC cards, and central control instructions;
2.Dual RJ45 network POE interfaces, one in and one out, cascading expansion, one CAT5E cable all the way through;
3.Multi-color circular indicator light, dazzling display of various states and processes;
4.Fully automatic in-out transmission control, one-button operation, and microphone collection and retraction can be controlled at will;
5.Infrared detection, magnetic induction detection, and charging induction detection ensure that the microphone is placed in place through multiple automatic detections;
6.The microphone is automatically charged and disinfected when it is stored in the warehouse;
7.Deep ultraviolet disinfection mainly targets Escherichia coli, Staphylococcus aureus, and Candida albicans;
8.Each working step and completion status are clearly indicated by the circular indicator light;
9.The warehouse door will automatically close after a timeout;
10.The foreign body detection in front of the warehouse door prevents blockage and obstruction of the warehouse door;
11.The channel foreign body detection prevents channel foreign body blockage;
CP88 is a panel control processor that works with the adaptive integrated machine to achieve recording and playback functions, meeting the different needs of high-quality sound systems in smart classrooms, various meetings, and other places.
Feature:
1. 3.5-inch (resistive touch) 5-26V voltage;
2. Built-in Cortex-M3 + high-speed FPGA, dual-core processor;
3. Communication with PC through network port, debugging and monitoring equipment;
4.Equipped with an RS485 communication interface, it can be connected to other central control devices;
5. With the adaptive all-in-one machine, the volume can be adjusted;

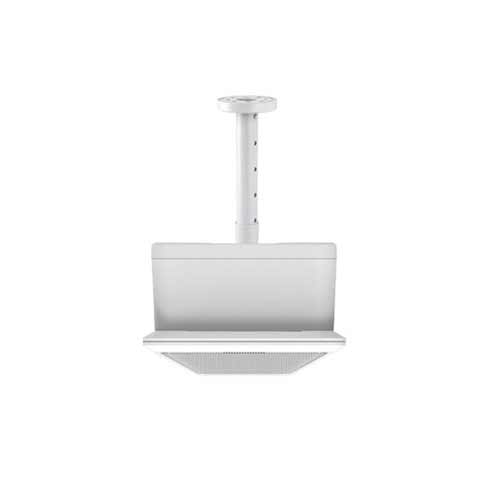

PJ06 is a coaxial plastic case multi-directional suction (hanging) ceiling speaker. It consists of five 1-inch neodymium magnetic dome tweeters and one 6.5-inch neodymium magnetic mid-bass unit to form a combination with a large headroom.
The high-frequency coaxial arc array is arranged above the mid-bass driver, resulting in more accurate sound positioning, reduced reflection from walls and floors, and even sound field coverage.
The product is fully independently designed and has applied for a patent. The sound quality is clear, bright, thick, and full, and it can be installed by hanging from the top or by semi-hidden top locking. It can be perfectly applied to various indoor sound reinforcement occasions.
Feature:
1.The enclosure is made of high-strength plastic and has a beautiful appearance;
2.The speaker components are made of imported materials. The high-frequency driver uses HiFi-grade neodymium magnet ball heads to bring high-fidelity sound quality;
3.It can be installed by hanging from the top or by semi-hidden top locking and is perfectly suitable for various indoor sound reinforcement occasions;
Woofer: 1 x 6.5 inches / φ38mm voice coil / neodymium magnet / 120W / 8Ω
Driver: 5 x 1 inch / φ25mm voice coil / neodymium magnet / 10W / 2Ω
Product size: 330×391×220mm
Product net weight: 5kg
Package size:475*415*300mm
Product gross weight: 7kg
Box quantity: 1

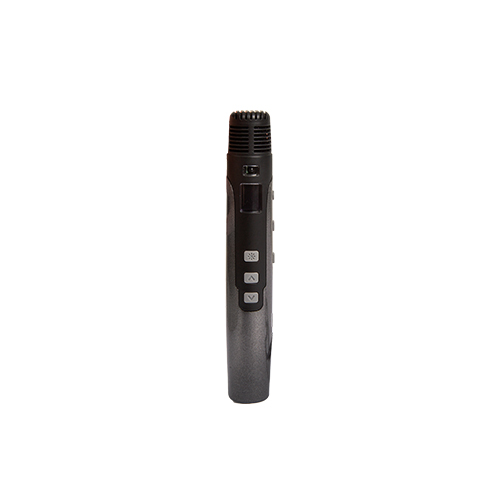

High-quality wireless teaching microphone SC01 is a product that integrates three functions of microphone, laser pointer and wireless PPT page turning.
Feature:
1. Three wireless transmission modes of 2.4G, UHF and IR can be used seamlessly;
2. Fully digital transmission, DSP signal processing, digital debugging, and intelligent management;
3.Fully intelligent charging management, with wireless charging function, long battery life, and zero maintenance;
4.Intelligent sensing, mute when put down and talk when picked up; automatic standby when not in use for a long time;
5.Combines the functions of a microphone, laser pointer, and wireless PPT flip in one product;
6.OLED display screen, clear display of system status and parameters;
7.Automatic mute and automatic voice rapid recovery in noisy environments;
8.Type-C charging and data interface;
9.Beautiful appearance and comfortable grip.
