TS-UF/TS-UFA
Introduction:
TS-UF consists of a B&C 8”cone woofer and a 1.73” Nd magnet HF compression driver. The HF coverage is 100°(H)X70°(V). The external digital processor optimizes the loudspeaker performance. Glass fiber constant directivity HF horn delivers delicate tone and splendid pan. 12mm plywood cabinet with slot-tongue structure offer robust tone. The cabinet is designed with 15 M6 flying points for quick and reliable suspension.
TS-UF consists of a B&C 8”cone woofer and a 1.73” Nd magnet HF compression driver. The HF coverage is 100°(H)X70°(V). The external digital processor optimizes the loudspeaker performance. Glass fiber constant directivity HF horn delivers delicate tone and splendid pan. 12mm plywood cabinet with slot-tongue structure offer robust tone. The cabinet is designed with 15 M6 flying points for quick and reliable suspension.
(5)
-
Features
> Compact design for ceiling installation
> High performance speaker unit extends frequency response; NdFeB magnetic HF
> Multi-angle cabinet for flexible installation
> External digital processor optimizes the speaker performance
> 15 M6 flying points for quick and reliable suspension
> NEUTRIK connector
-
Specification

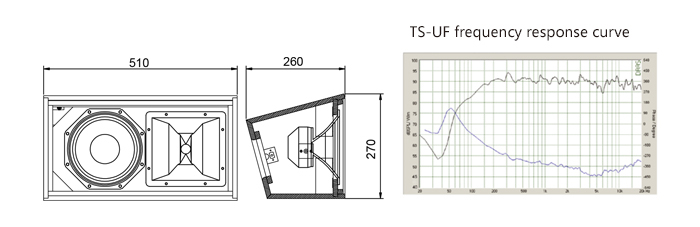

Model TS-UF TS-UFA Type 8”two way passive loudspeaker 8” two way active loudspeaker Frequency response 120Hz~18kHz (±3dB) 120Hz~18kHz (±3dB) 70Hz~20kHz (-10dB) 70Hz~20kHz (-10dB) Input Sensitivity - 0dBu Sensitivity(1W@1m) 92dB - Amp power LF: 200W (continuous); 800W (peak) 500W HF: 50W (continuous); 200W (peak) Nominal Impedance LF: 8Ω; HF: 8Ω - Coverage(HxV) 100°x70° 100°x70° Crossover 4000Hz 4000Hz Woofer 1X8” cone woofer/50mm voice coil 1X8” cone woofer/50mm voice coil HF driver 1X 44mm HF compression driver (1”throat) 1X 44mm HF compression driver (1”throat) / 44 mm voice coil / 44 mm voice coil Max SPL(@1m) 121dB 121dB Connector 2XSPEAKON XLR Dimension(WxHxD) 510x270x260(mm) 510x270x260(mm) Net weight 12kg 17kg
-
