TS-SUB/TS-SUBA
Introduction:
TS-SUB consists of two RCF 18” cone woofers. The vented cabinet and diagonal unit assembly effectively reduce the standing wave and make the loudspeaker compact. The loudspeaker has no crossover inside, but has to connect with external digital processor to optimize the performance. High quality 18mm plywood cabinet of slot-tongue structure offers robust tone. The loudspeaker has 16 M10 flying points for quick and reliable suspension.
TS-SUB consists of two RCF 18” cone woofers. The vented cabinet and diagonal unit assembly effectively reduce the standing wave and make the loudspeaker compact. The loudspeaker has no crossover inside, but has to connect with external digital processor to optimize the performance. High quality 18mm plywood cabinet of slot-tongue structure offers robust tone. The loudspeaker has 16 M10 flying points for quick and reliable suspension.
(5)
-
Features
> Classic vented structure; LF extended to 33Hz;
> High performance speaker units extends frequency response; NdFeB magnetic;
> Diagonal unit assembly effectively reduces the standing wave and make the loudspeaker compact.
> 18mm plywood with slot-tongue structure for robust tone;
> NEUTRIK connector
-
Specification

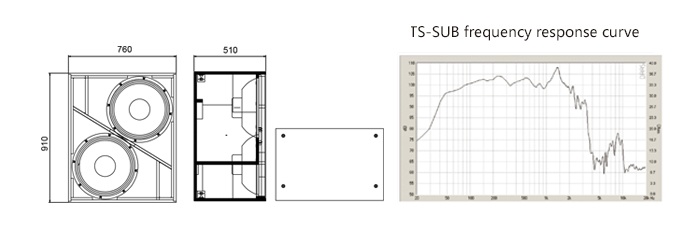

Model TS-SUB TS-SUBA Type 18” passive subwoofer 18” active subwoofer Frequency response 45Hz~250Hz(±3dB) 45Hz~250Hz(±3dB) 37Hz~280Hz(-10dB) 37Hz~280Hz(-10dB) Input Sensitivity - 0dBu Sensitivity(1W@1m) 101dB - Amp power 2400W (continuous), 9600W (peak) 2X1550W Nominal Impedance 8Ω×2 - Crossover 200Hz 200Hz Woofer 2X18” cone woofer/100mm voice coil 2X18” cone woofer/100mm voice coil Max SPL(@1m) 141dB 139dB Connector 2XSPEAKON XLR Dimension(WxHxD) 760x910x510(mm) 760x910x510(mm) Net weight 67kg 72kg
-
