TS-SF
(5)
-
Features
> Compact design for ceiling installation
> High performance speaker unit extends frequency response
> Multi-angle cabinet for flexible installation
> External digital processor optimizes the speaker performance
> Coaxial design deletes the interference of HF &LF and makes the loudspeaker compact.
-
Specification

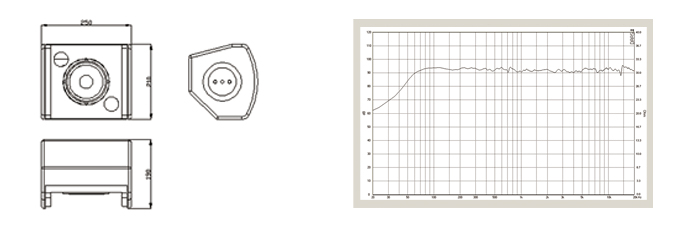

Model TS-SF Type 5”two way passive loudspeaker Frequency response 90Hz~20kHz（±3dB） 70Hz~20kHz（-10dB） Sensitivity(1W@1m) 87dB Amp power 80W Nominal Impedance 8Ω Coverage(HxV) 90°x90° Crossover 4000Hz Woofer 1X5” cone woofer/38mm voice coil HF driver 1X 25mm HF compression driver (1”throat)/ 13 mm voice coil Max SPL(@1m) 112dB Connector 2XSPEAKON Dimension(WxHxD) 250x210x190mm Net weight 4kg
-
