TS-66/TS-66A
Introduction:
TS-66 consists of a B&C 15”cone woofer and a 3”Nd magnetic HF compression driver. TS-66 features horn cabinet design, coaxial LF & HF, HF horn coverage 60°(H)*60°(V). The loudspeaker has no crossover inside, but has to connect with external digital processor to optimize the performance. The glass fiber constant directivity HF horn delivers delicate tone. High quality 18mm plywood cabinet with slot-tongue structure offers robust tone. The loudspeaker has 16 M10 flying points for quick and reliable suspension.
TS-66 consists of a B&C 15”cone woofer and a 3”Nd magnetic HF compression driver. TS-66 features horn cabinet design, coaxial LF & HF, HF horn coverage 60°(H)*60°(V). The loudspeaker has no crossover inside, but has to connect with external digital processor to optimize the performance. The glass fiber constant directivity HF horn delivers delicate tone. High quality 18mm plywood cabinet with slot-tongue structure offers robust tone. The loudspeaker has 16 M10 flying points for quick and reliable suspension.
(5)
-
Features
> Horn design with strong directivity, high sensitivity, high SPL, far projection
> High performance speaker unit to extend frequency response, Nd magnetic HF
> Compact structure, coaxial HF&LF to delete sound interference
> Symmetrical trapezoidal enclosure for system installation
> Constant directivity horn for even frequency response
> NEUTRIK connector
-
Specification

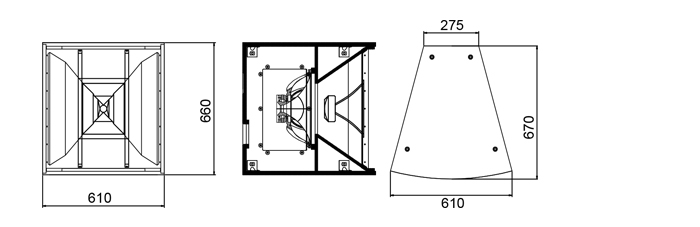

Model TS-66 TS-66A Type 15” two way passive loudspeaker 15” two way active loudspeaker Frequency response 130Hz~18kHz(±3dB) 130Hz~18kHz(±3dB) 100Hz~20kHz(-10dB) 100Hz~20kHz(-10dB) Input Sensitivity - 0dBu Sensitivity(1W@1m) 103dB(LF); 109dB(HF) - Amp power LF:700W (continuous), 2800W(peak) LF: 1550W HF:110W (continuous), 440W(peak) HF: 200W Impedance LF: 8Ω; HF: 16Ω - Coverage(HxV) 60°x60° 60°x60° Crossover 950Hz 950Hz Woofer 1X15” cone woofer/100mm voice coil 1X15”cone woofer/100mm voice coil HF driver 1X 75mm HF compression driver (1.4”throat) 1X 75mm HF compression driver (1.4”throat) / 75 mm voice coil / 75 mm voice coil Max SPL(@1m) 138dB(LF); 135dB(HF) 138dB(LF); 135 dB(HF) Connector 2XSPEAKON XLR Dimension(WxHxD) 610x660x670(mm) 610x660x670(mm) Net weight 50kg 55kg
-
