Products Catalog
P2 / P4 / P6
Introduction:
P series flat panel speaker cabinet can also be used for wall decoration at home, in the bar, coffee, etc, without deconstruction of the original architecture decoration. This series has different sizes to suit different wall surfaces.
Application:
P series flat panel speaker cabinet can also be used for wall decoration at home, in the bar, coffee, etc, without deconstruction of the original architecture decoration. This series has different sizes to suit different wall surfaces.
Application:
Various conference system, background music reinforcement system, multi-media audio system, etc;
home, coffee bar, hotel, school, supermarket, tea bar, military applications;
(5)
-
Features
> Excellent directivity, low attenuation: you can enjoy the real sound in any position.
> Light weight, flat panel, easy installation;
> Clear sound, high fidelity;
> Non-screw-assembly; when used with subwoofer, it offers abundant bass effect.
> Class D power amplifier; multiple functions compatible; SD/USB interface; auto playing MP3/MP4/SD card audio; Bluetooth or WIFI function;
> Wireless microphone with USB interface; handheld/bodypack/headset microphone with long distance transmission without intermittent sound or noise; easy operation;

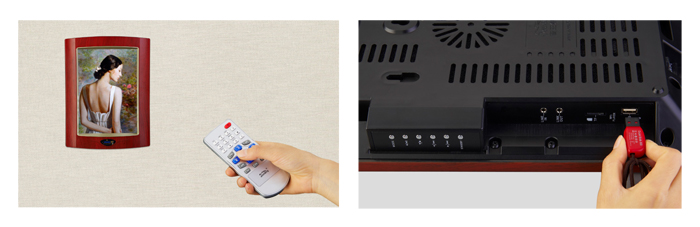

> Remote control manipulates power supply, function selection and playing, etc.
> multiple installation ways;
> Pole mounting, wall installation.
-
Specification
Model P2 P4 P6 Frequency response 80Hz--20kHz(-10dB) 80Hz--20kHz(-10dB) 80Hz--20kHz(-10dB) Sensitivity(1W@1M) 89dB 90dB 92dB Nominal Impedance 8Ω 8Ω 4Ω/8Ω Power 60W 120W 200W Max SPL(dB) 107dB 111dB 118dB HF 2×1”exciter 4×1”exciter 6×1”exciter LF 1×3 inch 2×3 inch 4×3 inch Coverage (HxV) omni-directional non-directional non-directional Input Connector Jack-6.35 2×binding post+Jack-6.35 JACK-6.35 Supporting system M6(wall installation ) M17(wall installation )+Φ25 (Support) M17(wall installation )+Φ35 (Support) Dimension(WxHxD) 300x400x66(mm) 445x591x68(mm) 539x754x102 (mm) Weight 1.5kg 2.8kg 5.5 kg
-
