P Series
Introduction:
To follow the market development, Soundking designs the flat panel loudspeaker P6U-2. P6U-2 features unique shape, advanced technology, applicable functions. The active part used Class D circuit and power switch with USB and SD card connector and bluetooth function. The system is light weighted and suitable for transportation and small show application.
Application:
Touring show, salon, outdoors party, school, hotel, shopping mall, etc;
To follow the market development, Soundking designs the flat panel loudspeaker P6U-2. P6U-2 features unique shape, advanced technology, applicable functions. The active part used Class D circuit and power switch with USB and SD card connector and bluetooth function. The system is light weighted and suitable for transportation and small show application.
Application:
Touring show, salon, outdoors party, school, hotel, shopping mall, etc;
(5)
-
Features
> Excellent directivity: you can appreciate the real sound in any position.
> Low sound attenuation: no matter far or near, you can hear the almost same sound.
> Light weighted, lat panel, easy installation
> High idelity: with time going on, you will be attracted by the speaker performance.
> Non-screw speaker assembly effectively enhances the LF effect, especially the four 3” LF speaker improve LF.
> Professional active module; SD card and USB connector; automatically playing MP3/MP4/SD card audio; Bluetooth function;
> Quartz locked wireless UHF microphone, anti-interference, stable frequency;
> Can be equipped with handheld or bodypack microphone. Long transmission distance; without noise or intermittent signal;

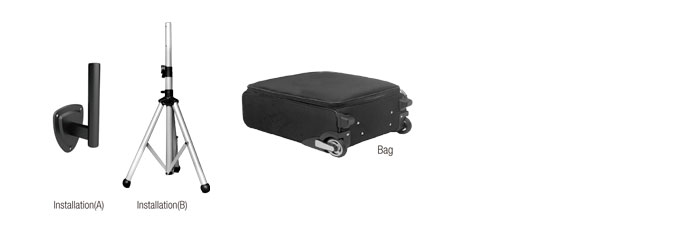

> Handle for easy installation; stand installation or wall installation;
-
Specification
Model P6U-2 P6-2 Frequency response 80Hz--20kHz (-10dB) 80Hz--20kHz(-10dB) Input Sensitivity RCA/LINE:-10dBV 94dB MIC:-42dBV Max SPL(@1m) 117dB 118dB Power 300W 200W (continuous), 800W (peak) HF 6×1”core driver 6×1”core driver LF 4×3” speaker 4×3”speaker Coverage (HxV) omni-directional omni-directional Input Connector RCA/JACK-3.5 Jack-6.35-MIC bluetooth, USB/SD JACK-6.35 Wireless frequency range 600-900MHz Receiving Sensitivity >-95 dBm Transmission power >10mW Input voltage 110V/230V Supporting system M17(wall installation )+Φ35(pole mouting) M17(wall installation )+Φ35(pole mouting) Dimension (WxHxD) 520x740x111 (mm) 520x740x111 (mm) Weight 7kg 6kg
-
