KV18S
(5)
-
Features
> Compact, light weight;
> Class D power ampliier, reliable performance delicate tone;
> Nd magnet LF unit(passive) and HF compression design;
> Constant directivity horn, coverage 80°x60°;
> Also used for 45°stage monitoring;
> Black durable inish;
> Full range speaker cabinet with 13 lying points and pole socket for various installation.
-
Specification

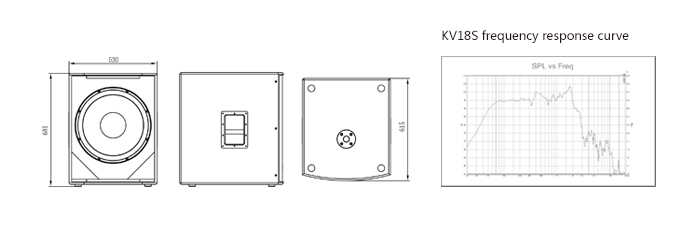

Model KV18S Type 18 inch passive subwoofer Frequency response 35Hz –200Hz (-10dB) 45Hz –150Hz (-3dB) Sensitivity(1W@1m) 96 dB Impedance 4Ω Power Continue 400w Peak 1600W LF 18" subwoofer Max SPL 128dB Connector 2xspeakon NL4 Dimension (W x H xD) 530x681x610(mm) Weight net/shipping 30.7kg / 37.5kg
-
