PL2
(5)
-
Features
PL2 mid/long projection horn speaker cabinet consists of a 100mm MF compression driver and a 75mm HF driver. The MF MgAl/KAPTON compound diaphragm features high resolution and SPL. The HF Ceramic/KAPTON compound diaphragm features high SPL. The product is also equipped with specially designed horn to prominently improve the eletro-acoustic efficiency.
-
Specification

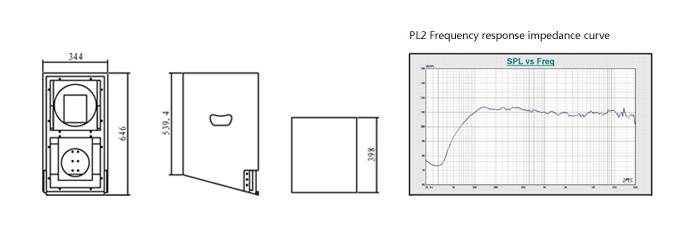

Model PL2 Type Middle/long projection horn speaker cabinet Frequency response 450Hz -18kHz Nominal Impedance MF: 8Ω/ HF: 8Ω Rated power MF: 120W ( continuous), 480W (peak) HF: 80W( continuous), 320W (peak) Sensitivity(1W@1M) MF: 113dB( continuous), 139dB (peak) HF: 112dB ( continuous), 137dB (peak) Coverage (H*V) 100°X60° Crossover (MF/HF) 2.5 kHz (Active) Unit MF: 1(100mm)+HF: 1(75mm) Connector 2XNL8MP Dimension(WxHxD) 344x646x398 mm Weight 28.4kg
-
