AS Series
Introduction:
This series of Professional Mixing consoles was designed for live sound application, especially suited for large and medium live situation. Along with its professional appearance and advanced technology that is dedicated to high performance, reliability and price ratio.
To ensure best performance we utilize top grade components to guarantee sonic quality. Such as: Top grade Microphone -preamp and Balanced outputs (Burr-Browns); Precision 100 mm fader (ALPS); high quality noise XLR and Jacks. With all these elements incorporated you can be sure that the AH series mixing console will shine out among the others.
Power:

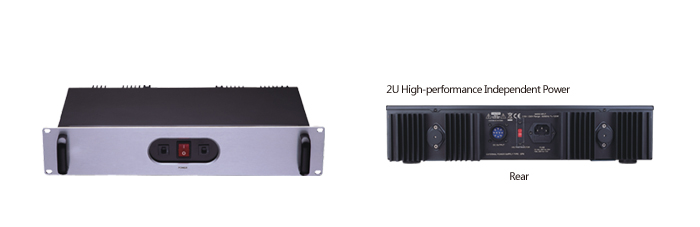

100-260V 50/60Hz switching power inside for AS1204/AS1604;The high quality toroidal transformer power outside for AS2408/AS3208/AS4808(AC110-230V switched)
Applications:
Widely applied in live performance, studio recording and outdoor sound reinforcement projects.
This series of Professional Mixing consoles was designed for live sound application, especially suited for large and medium live situation. Along with its professional appearance and advanced technology that is dedicated to high performance, reliability and price ratio.
To ensure best performance we utilize top grade components to guarantee sonic quality. Such as: Top grade Microphone -preamp and Balanced outputs (Burr-Browns); Precision 100 mm fader (ALPS); high quality noise XLR and Jacks. With all these elements incorporated you can be sure that the AH series mixing console will shine out among the others.
Power:
100-260V 50/60Hz switching power inside for AS1204/AS1604;The high quality toroidal transformer power outside for AS2408/AS3208/AS4808(AC110-230V switched)
Applications:
Widely applied in live performance, studio recording and outdoor sound reinforcement projects.
(5)
-
Features
> Built-in +48V phantom power
> Precise level indication
> Top grade 100mm fader and ALPS potentiometer
> 10-44-channel low noise MIC amp, 2-4 stereo inputs
> 4-band semi-parametric EQ
> 80Hz-12dB/oct high pass switch for every MIC channel
> Gooseneck lamp
> 1K signal oscillator, pink noise generator
> Individual talkback for all outputs
> Universal power supply
-
Specification

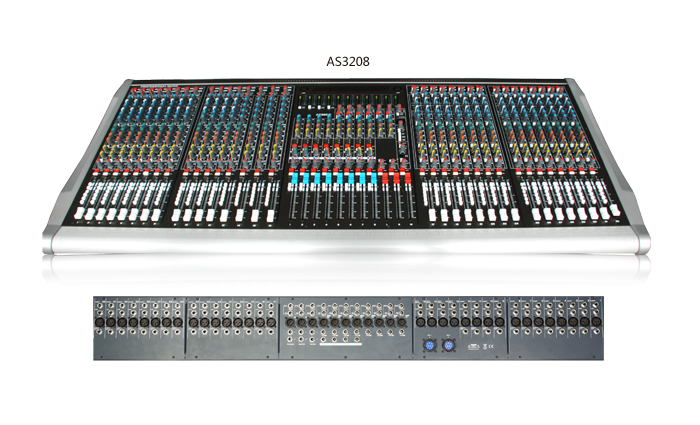

MODEL AS1204 AS1604 AS2408 AS3208 AS4808 Mic Input 12 16 24 32 48 Stereo Input 2 2 4 4 4 Aux 6 6 8 8 8 Dsp / / / / / MONO 1 1 1 1 1 Stereo L/R Output 2 2 2 2 2 Group L/R Output 4 4 8 8 8 Gain 70dB(MIC main output) MIC CH. EQ±15dB LO:80Hz LO MID:(35Hz-1kHz) HI MID:(500Hz-15kHz) HI:12kHz LINE CH. EQ±15dB LO:80Hz LO MID:250Hz HI MID:2.5kHz HI:12kHz Frequency response (20-20kHz)±0.5dB Equivalent input noise -128dB(unweighted) Maximum Output Level +22dBu Meter 12segment(-30dB to 16dB) Distortion ≤0.01%(20-20kHz) Lamp 12V 10mA Weight (kg) 14kg 16kg 29kg 34kg 46kg Dimension(W×D×H)mm 530×583×183 600×583×183 1040×583×183 1240×583×183 1660×583×183
-
