LE215
Application:
>Touring performance ;
>Medium & big size stadium ;
>Theater and auditorium .
>Touring performance ;
>Medium & big size stadium ;
>Theater and auditorium .
(5)
-
Features
Necessary spares(Page20):
>Hanging line (2/ each string);
>Latch(6 /each one);
>Hanging rack (1 /each string).
Optional Components(Page20-23):
>Electric hoist
>Rain-proof pack
>Flight case
>Hanging H line array rack
-
Specification

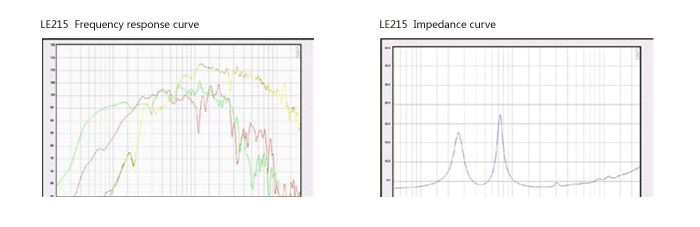

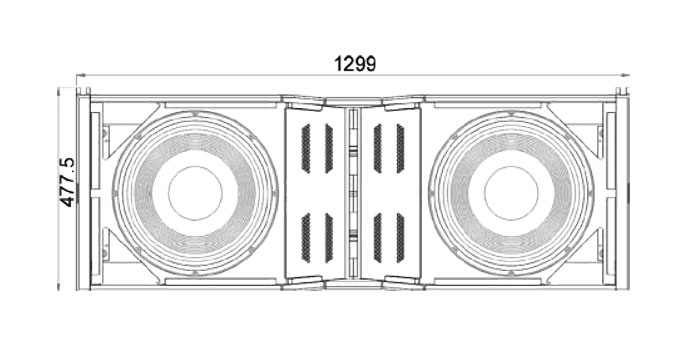

Model LE215 Type 3-way passive line array element Frequency response 45Hz~20kHz(-10dB) 55Hz~18kHz(±3dB) Horizontal coverage (-6dB) 90° Vertical coverage (-6dB) Depend on the size and the declining angle LF 2x15”(381mm) / 4”voice coil MF 4×8" ( 203 mm ) / 2" voice coil HF 2×3" ( 76.2mm ) compression driver/Nd magnetic Sensitivity LF unit: 101dB MF unit: 105dB HF unit: 110dB Nominal Impedance LF unit: 8Ωx2 MF unit: 8Ω HF unit: 16Ω Power handling LF unit: 500W x 2 (continuous), 2000Wx2(peak) MF unit: 600 W (continuous), 2400W(peak) HF unit: 180W (continuous), 720W(peak) Max. SPL LF unit: 137dB MF unit: 139dB HF unit: 139dB Crossover 250Hz, 1.5kHz Dimension (WxHxD) 1299×477.5×630 (mm) Weight 100kg Vertical spread angle 0°~10° each step 1.7°
-
