LE212N
Application:
>Touring performance ;
>Medium & big size stadium ;
>Theater and auditorium .
>Touring performance ;
>Medium & big size stadium ;
>Theater and auditorium .
(5)
-
Features
Necessary spares(Page20):
>Hanging line (2/ each string);
>Latch(6 /each one);
>Hanging rack (1 /each string).
Optional Components(Page20-23):
>Electric hoist
>Rain-proof pack
>Flight case
>Hanging H line array rack -
Specification

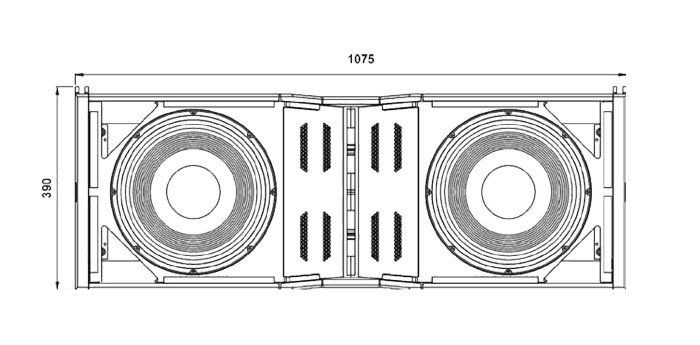

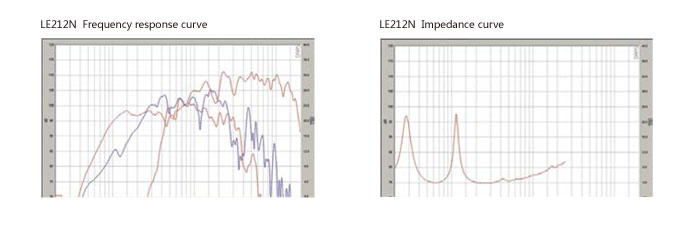

Model LE212N Type 3-way passive line array element Frequency response 50Hz~20kHz(-10dB) 60Hz~18kHz(±3dB) Horizontal coverage (-6dB) 90° Vertical coverage (-6dB) Depend on the size and the declining angle LF 2x12”(304mm) / 4”voice coil MF 4×6.5" ( 165 mm ) / 2" voice coil /Nd magnetic HF 2×3" ( 76.2mm ) compression driver/Nd magnetic Sensitivity LF unit: 99dB MF unit: 103dB HF unit: 110dB Nominal Impedance LF unit: 8Ωx2 MF unit: 8Ω HF unit: 16Ω Power handling LF unit: 500W x 2 (continuous), 2000WX2(peak) MF unit: 400 W (continuous), 1600W(peak) HF unit: 180W (continuous), 720W(peak) Max. SPL LF unit: 135dB MF unit: 135dB HF unit: 139dB Crossover 250Hz, 2kHz Dimension (WxHxD) 1075×390×520 (mm) Weight 65kg Vertical spread angle 0°~8° each step 2°
-
