Products Catalog
LE208SA/LE208S
Application:
>Medium & small size main reinforcement of sound system ;
>Touring performance ;
>Stadium ;
>Theater.
>Medium & small size main reinforcement of sound system ;
>Touring performance ;
>Stadium ;
>Theater.
(5)
-
Features
Necessary spares(Page20):
>Hanging line (2/ each string) ;
>Latch (6 /each one) ;
>Hanging top rack(1 /each string).
Optional Components(Page20-23):
>Electric hoist ;
>Rain-proof pack ;
>Flight case ;
>Hanging H line array rack.
-
Specification

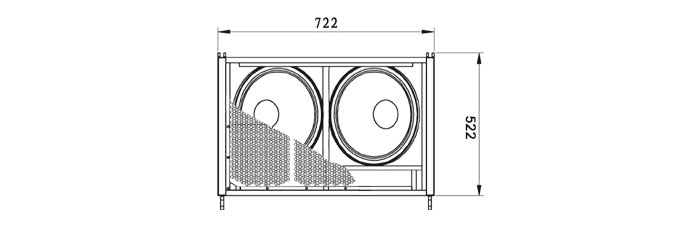

Model LE208SA Model LE208S Type Active woofer cabinet Type Passive woofer cabinet Frequency response 40Hz~500Hz(-10dB) Frequency Response 40Hz~500Hz(-10dB) 45Hz~400Hz(±3dB) 45Hz~400Hz(±3dB) LF 2x15” woofer /Φ99.2mm voice coil LF 2x15”(388mm) / 4”voice coil DSP Dream SAM 3716, Sensitivity (1W@1M) 101dB 24bit(data)x96bit(coeff) Nominal Impedance 4Ω Voltage switching mode power supply (PFC) Power handling 500Wx2 (continuous), 2000WX2(peak) internal Voltage switching Crossover 300Hz 85~265V , 50/60Hz Max. SPL 137dB Amp power 1500W Dimensions (WxHxD) 722x703.5x522(mm) Max SPL 136dB Weight 63.5kg Dimension (WxHxD) 722×703.5×522 (mm) Weight 65kg
-
